Help CenterTable Cnc Gas Cutting Machine for Metal Cutting
Related Products
-
Light Duty Gantry Cnc Gas Cutting MachineUS$ 8,500 - 15,000MOQ: 1 Set -
Light Duty Gantry Cnc Plasma Cutting MachineUS$ 8,500 - 15,000MOQ: 1 Set
-
Fine Table Cnc Gas Cutter for MetalUS$ 16,800 - 28,000MOQ: 1 Set
-
Fine Table Cnc Plasma Cutting Machine China SupplierUS$ 16,800 - 28,000MOQ: 1 Set
-
Fine Table Cnc Plasma Cutter for Metal SheetsUS$ 16,800 - 28,000MOQ: 1 Set
Specifications
With knife or vertical bar tableGood performance on thin plate
High precision guide rail
Plasma and flame torch optional
table cnc gas cutting machine, table cnc flame cutter, cnc flame cutting table, gas cnc cutting machine, oxygen and propane cnc cutting machine, gas cutter, desktop cnc gas cutter, oxy fuel cnc cutting machine, cnc cut off machine

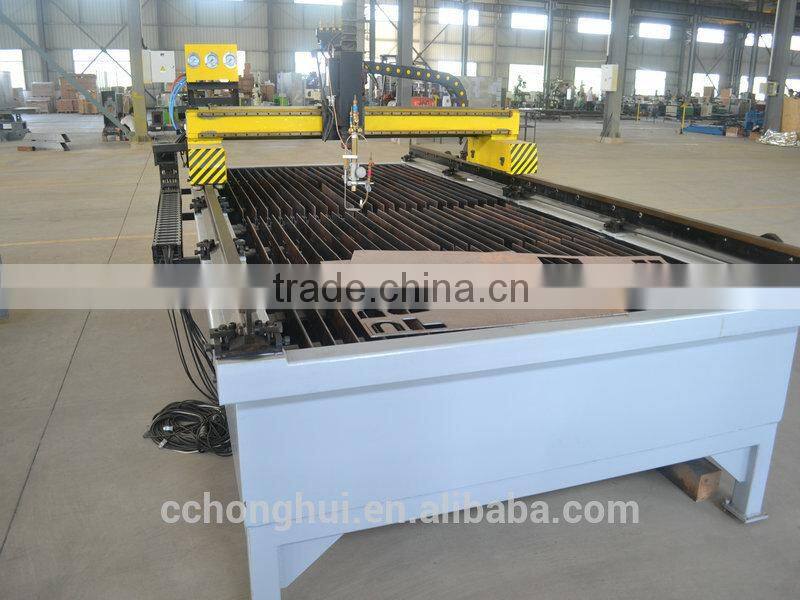

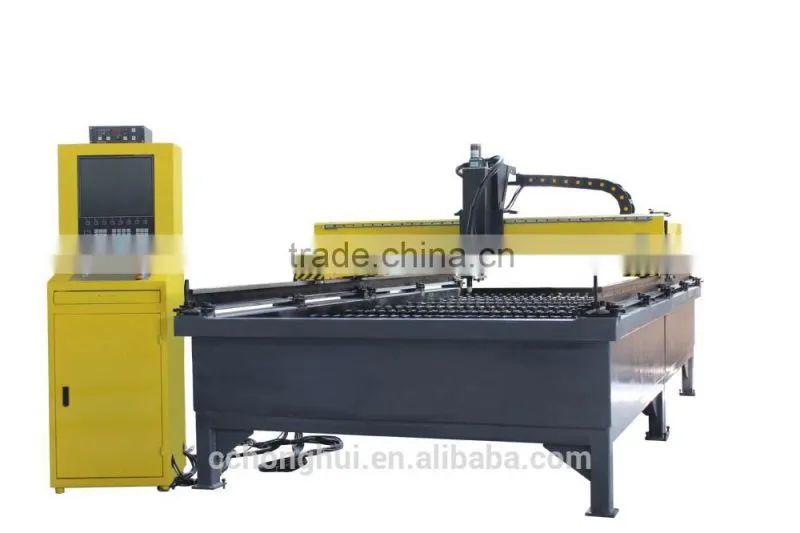

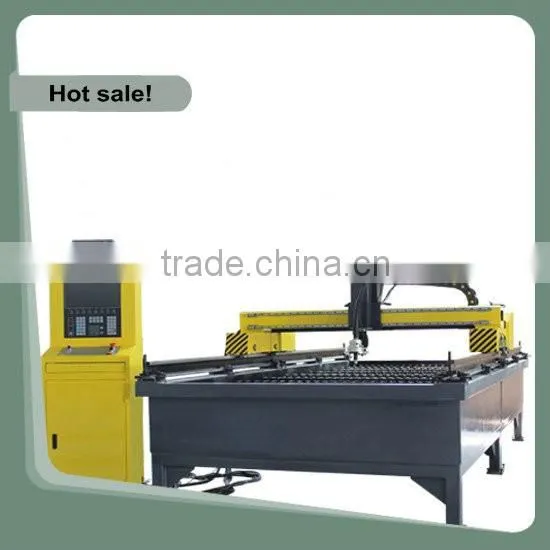

Table cnc gas cutting machine adopts seperated frame type cutting table, can be equipped with zigzag or straight bar on the table surface.
Table cnc gas cutting machine have excellent performance when cutting thin sheets, such as less than 10mm sheets.
The main structure and features of table cnc gas cutting machine
1. The machine is equipped with gear rack, servo motor and planetary reducer on both horizontal and vertical direction.
2. Crossbeam drive adopts PMI linear guide rail , to ensure the moving accuracy and cutting quality.
3. Automatic memory function when power off or emergency stop.
4. Auto alarm function when faced with a mistake or arc breaking.
5. Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
6. 17" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of table cnc gas cutting machine
| Configuration | |||||
| Structure | Seperated frame structure | ||||
| Drive motor | Panasonic servo motor | ||||
| Reducer | Shimpo | ||||
| Crossbeam guide rail | PMI linear guide rail | ||||
| Guide rail | 24kg level H guide rail | ||||
| CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD capacitive THC | ||||
| Flame cutting torch | Xinsanhu | ||||
| Cutting gas | Oxygen and propane or acetylene | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | 5 to 150mm | ||||
| Cutting speed | 50 to 8000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 1m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel | ||||
| Operation language | Multilanguage | ||||
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
