Light Duty Gantry Cnc Gas Cutting Machine
US$ 8,500 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Zhangzhou Xinsanhu
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Light Duty Gantry Cnc Plasma Cutting MachineUS$ 8,500 - 15,000MOQ: 1 Set -
Fine Table Cnc Gas Cutter for MetalUS$ 16,800 - 28,000MOQ: 1 Set
-
Fine Table Cnc Plasma Cutting Machine China SupplierUS$ 16,800 - 28,000MOQ: 1 Set
-
Fine Table Cnc Plasma Cutter for Metal SheetsUS$ 16,800 - 28,000MOQ: 1 Set
-
Fine Table Cnc Plasma Cutting MachineUS$ 16,800 - 28,000MOQ: 1 Set
Condition
New
Place of Origin
Fujian, China
Brand Name
Zhangzhou Xinsanhu
Model Number
CNCTG series
Voltage
220V
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Light weight, easy to installLarge size cutting area
Gas and plasma dual use
Automatic ignition device on gas cutting torch
Gantry cnc cutting machine, gantry cnc cutter, cnc cut off machine, dragon cnc cutting machine, cnc flame cutting machine, cnc gas cutter, metal cutting machine, oxy fuel cnc cutting machine, oxygen and propane cutting machine, cnc cut off machine, mini gantry cnc cutting machine
Light duty gantry cnc cutting machine has the same cutting ability with heavy duty cnc cutting machine, their main difference is the cutting accuracy and quality.

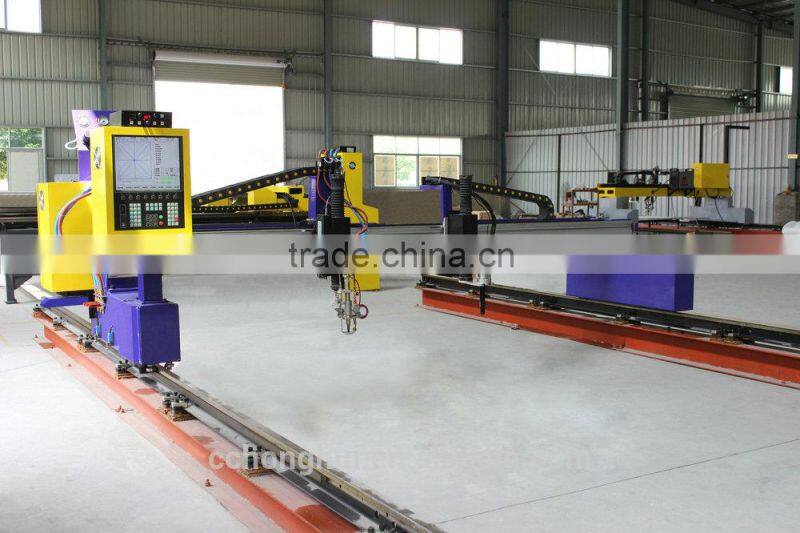

The main structure and features of gantry cnc gas cutting machine
- The beam adopts rectangle steel tube when equipped with two or more moving body and cutting torches, uses aluminum alloy tube when equipped with one cutting torch.

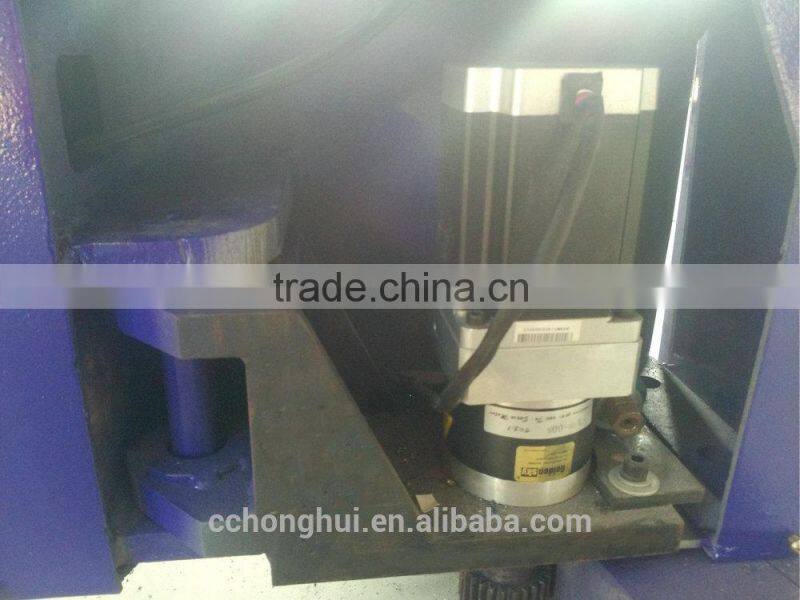

- The machine is equipped with gear rack, stepper motor and planetary reducer on both horizontal and vertical direction, the horizontal move adopts high precision drive rail and steel belt, can transmit stably on the same or specular direction between master-slave cutting torches.

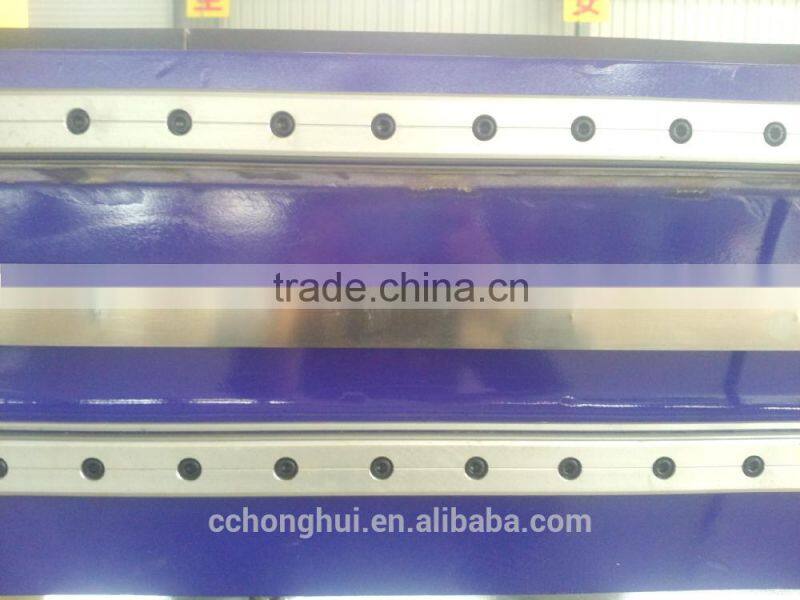

- Crossbeam drive adopts double axis guide rail , to ensure the moving accuracy and cutting quality.
- Automatic memory function when power off or emergency stop.
- Auto alarm function when faced with a mistake or arc breaking.
- Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.

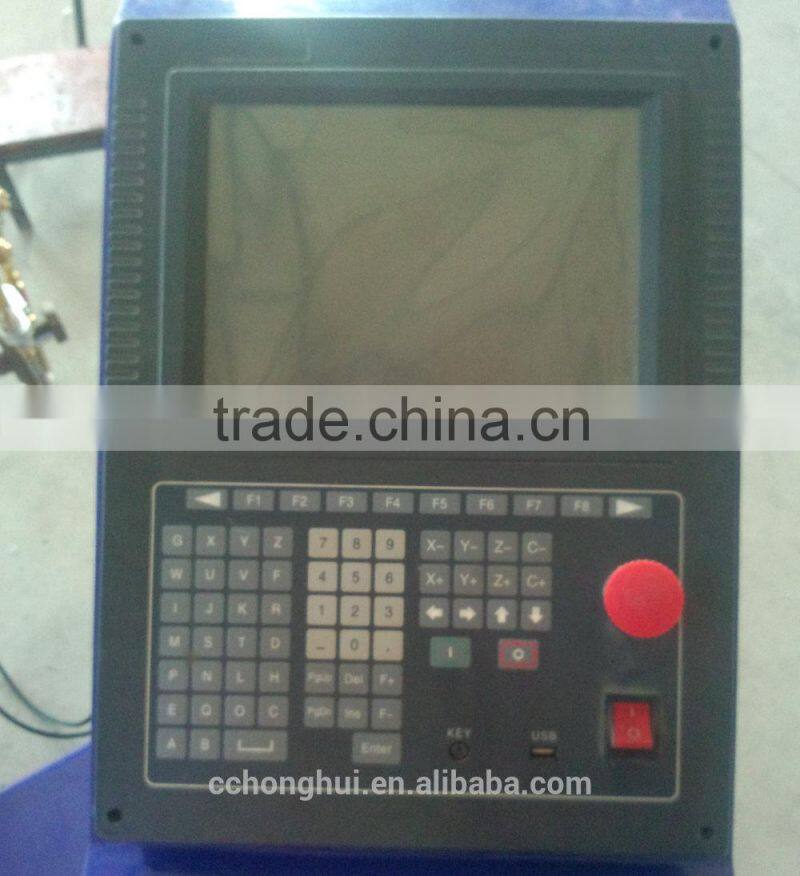

- 10.4" or 7" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of gantry cnc gas cutting machine
| Configuration | |||||
| Structure | rectangle steel structure | ||||
| Drive motor | Precise stepper motor | ||||
| Reducer | Golden Sky | ||||
| Crossbeam guide rail | Double axis guide rail | ||||
| Guide rail | 24kg level guide rail | ||||
| CNC system | SJTU-SK or START | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD capacitive THC | ||||
| Flame cutting torch | Xinsanhu | ||||
| Cutting gas | oxygen and propane | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Crossbeam width | ≥200mm | ||||
| Cutting thickness | 5 to 150mm | ||||
| Cutting speed | 50 to 8000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.8m less than track width | ||||
| Cutting length | 2m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel | ||||
| Operation language | Multilanguage | ||||

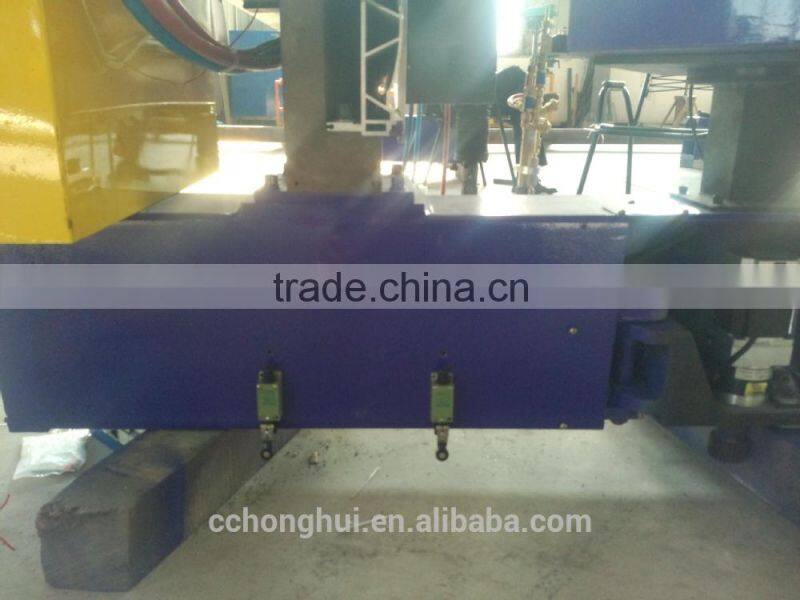

Main parts of light duty gantry cnc gas cutting machine
Our services
- 12 months warranty
- Available OEM and ODM
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
