Gantry cnc cutting machine, gantry cnc cutter, cnc cut off machine, dragon cnc cutting machine, cnc flame cutting machine, cnc gas cutter, metal cutting machine, oxy fuel cnc cutting machine, oxygen and propane cutting machine, cnc cut off machine

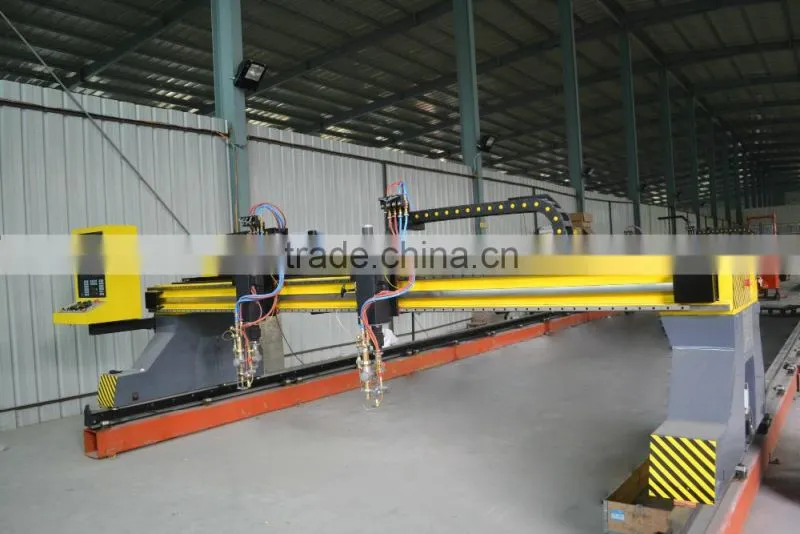

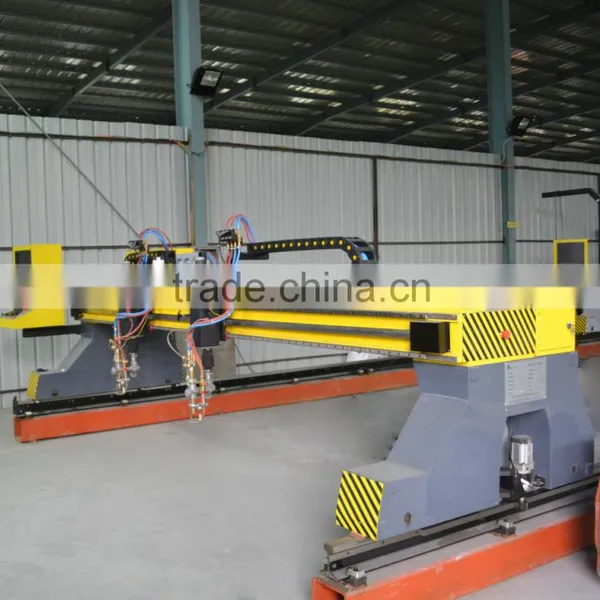

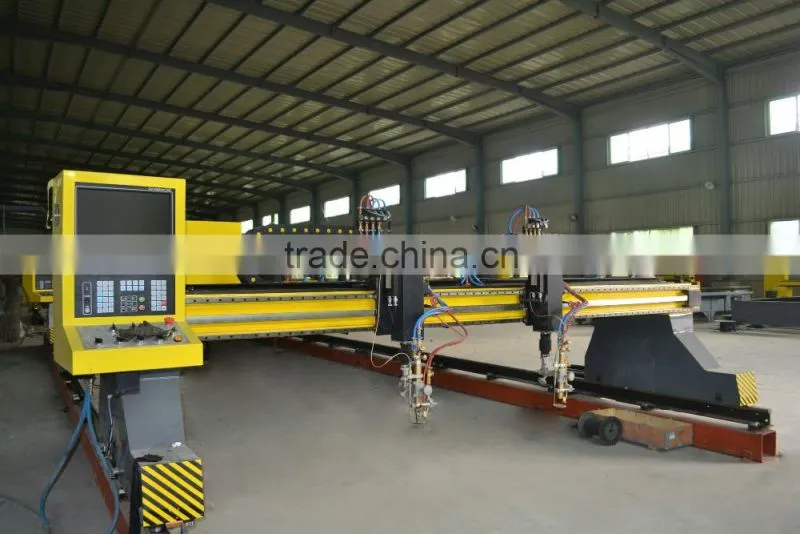

Gantry CNC gas cutting machine is one of our main product, our engineers and workers make it owns both good looking and strong practibility features, it is being widely used in various industry area.
The main structure and features of gantry cnc gas cutting machine
- The beam adopts enhanced wide body box structure and endframe adopts low center of gravity, make the equipment durable and symmetric. All the welding points are stress released to ensure the whole rigidity strength and dynamic balance.
- The machine is equipped with gear rack, servo motor and planetary reducer on both horizontal and vertical direction, the horizontal move adopts high precision drive rail and steel belt, can transmit stably on the same or specular direction between master-slave cutting torches.
- Crossbeam drive adopts PMI linear guide rail , to ensure the moving accuracy and cutting quality.
- Automatic memory function when power off or emergency stop.
- Auto alarm function when faced with a mistake or arc breaking.
- Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
- 17" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of gantry cnc flame cutting machine
| Configuration | |||||
| Structure | Wide body strengthen welding box structure | ||||
| Drive motor | Panasonic servo motor | ||||
| Reducer | Shimpo | ||||
| Crossbeam guide rail | PMI linear guide rail | ||||
| Guide rail | 43kg heavy guide rail | ||||
| CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD capacitive THC | ||||
| Flame cutting torch | Xinsanhu | ||||
| Cutting gas | oxygen and propane | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Crossbeam width | ≥500mm | ||||
| Cutting thickness | 5 to 150mm | ||||
| Cutting speed | 50 to 8000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.8m less than track width | ||||
| Cutting length | 2m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel | ||||
| Operation language | Multilanguage | ||||

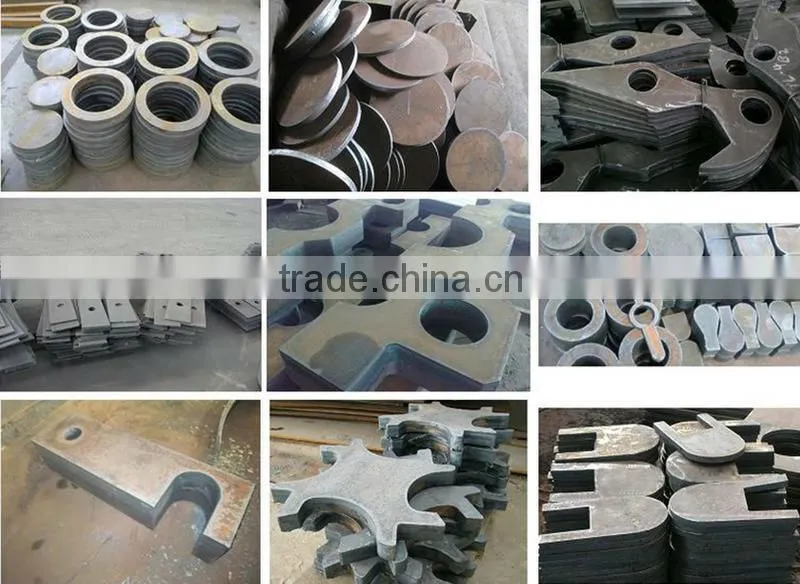

Cutting samples of heavy gantry cnc flame cutting machine
Our services
- 12 months warranty since machine reaches at buyer's place
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Installing and cutting video can be provided
- Engineers are available to service aboard

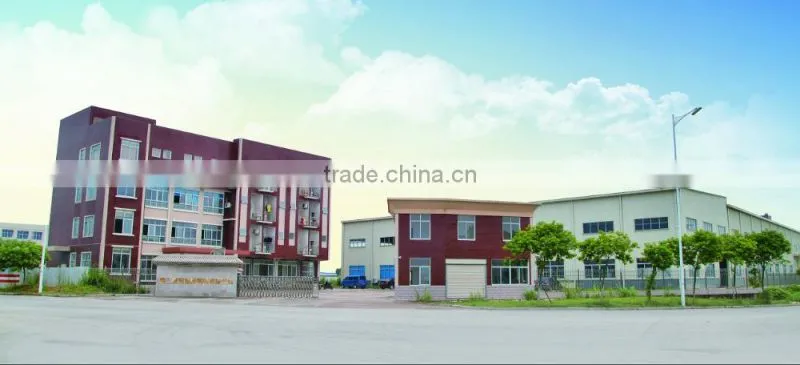

Zhangzhou Honghui Electrical Equipment Devolopment Co.,Ltd is a manufacture focus on producing CNC cutting machine and inverter welding machine for many years, the configuration of our machines are choosen by our technicists and engineers through over and over test and experiment, make sure it has better performance and higher quality on the cutting and welding job.
If any question or interest about our machines, kindly please contact us, we will give you a satisfied replay as soon as possible.
