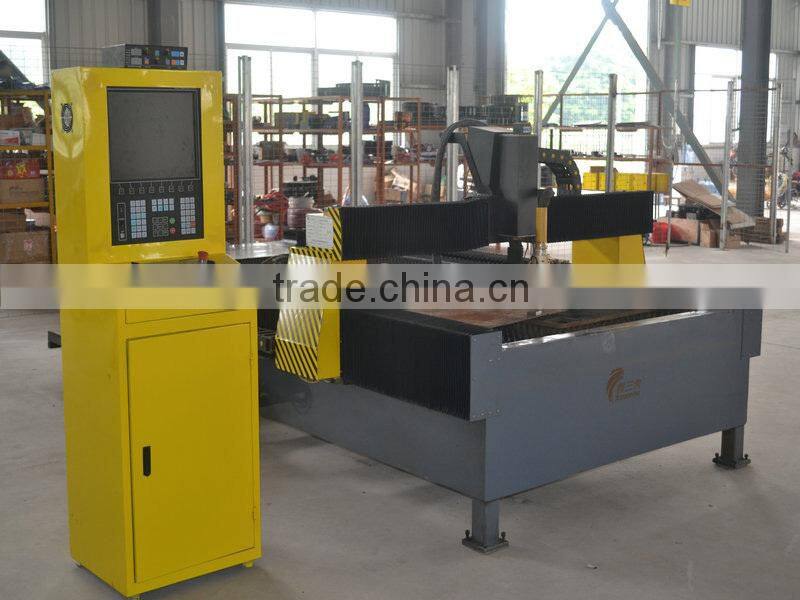

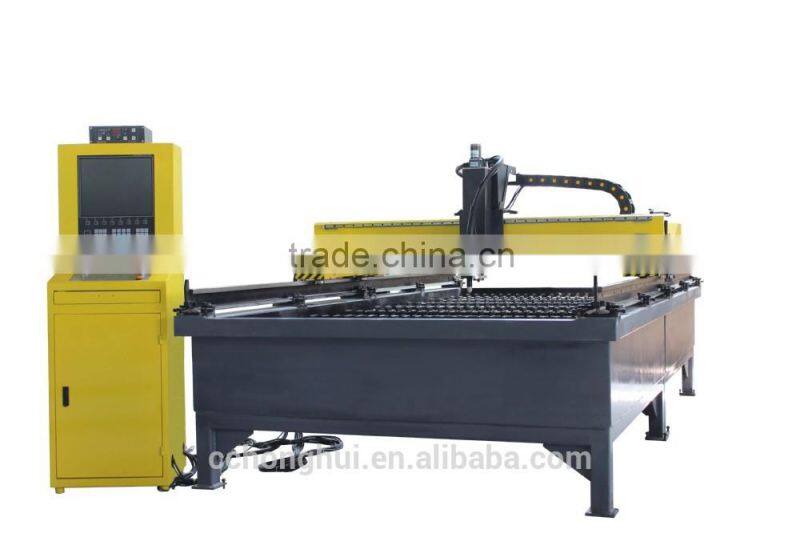

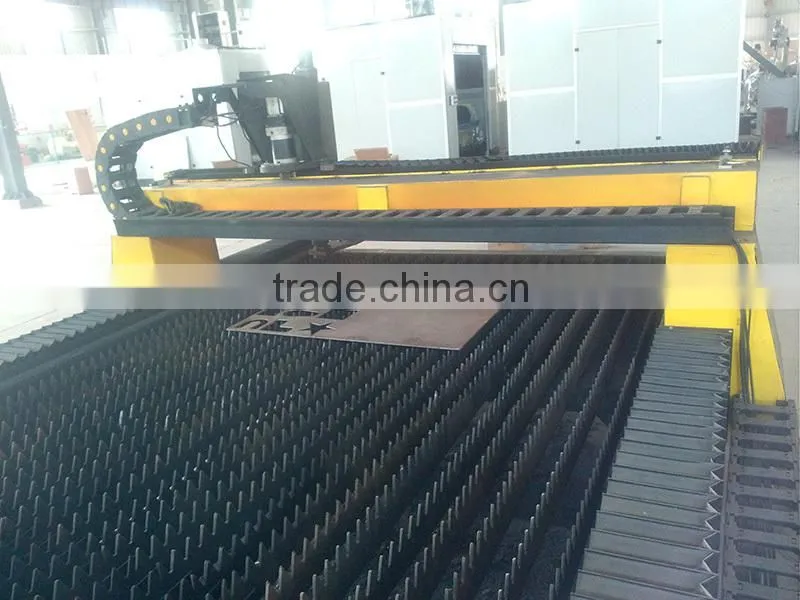

Table cnc flame cutting machine adopts seperated frame type cutting table, can be equipped with zigzag or straight bar on the table surface.
Table cnc flame cutting machine have excellent performance when cutting thin sheets, such as less than 10mm sheets.
The main structure and features of table cnc flame cutting machine
1. The machine is equipped with gear rack, servo motor and planetary reducer on both horizontal and vertical direction.
2. Crossbeam drive adopts PMI linear guide rail , to ensure the moving accuracy and cutting quality.
3. Automatic memory function when power off or emergency stop.
4. Auto alarm function when faced with a mistake or arc breaking.
5. Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
6. 17" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of table cnc flame cutting machine
| Configuration | |||||
| Structure | Seperated frame structure | ||||
| Drive motor | Panasonic servo motor | ||||
| Reducer | Shimpo | ||||
| Crossbeam guide rail | PMI linear guide rail | ||||
| Guide rail | 24kg level H guide rail | ||||
| CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD capacitive THC | ||||
| Flame cutting torch | Xinsanhu | ||||
| Cutting gas | Oxygen and propane or acetylene | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | 5 to 150mm | ||||
| Cutting speed | 50 to 8000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 1m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel | ||||
| Operation language | Multilanguage | ||||

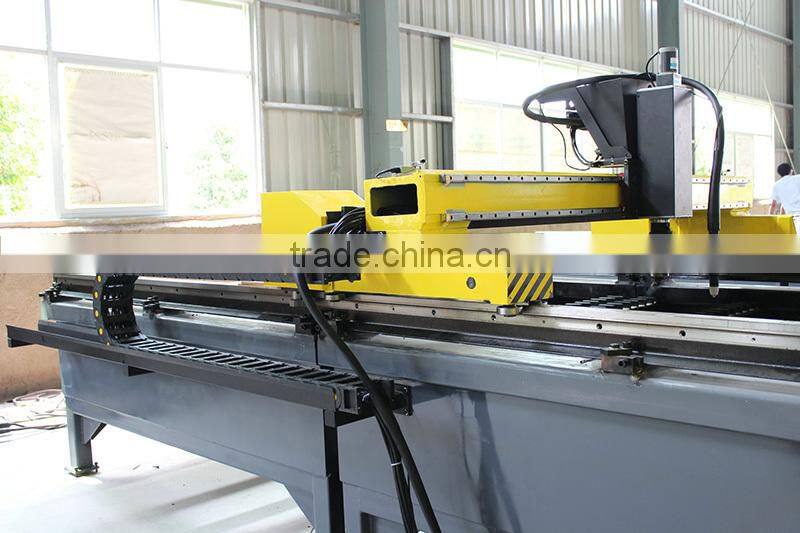

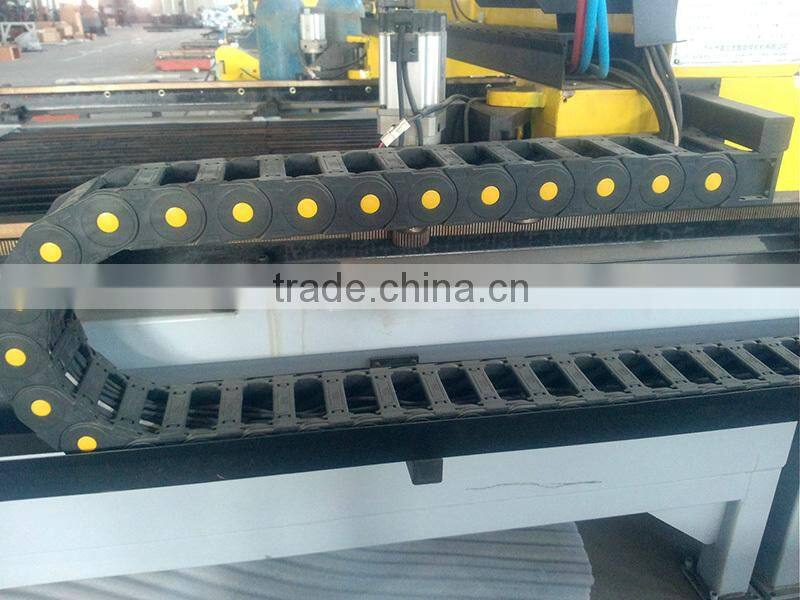

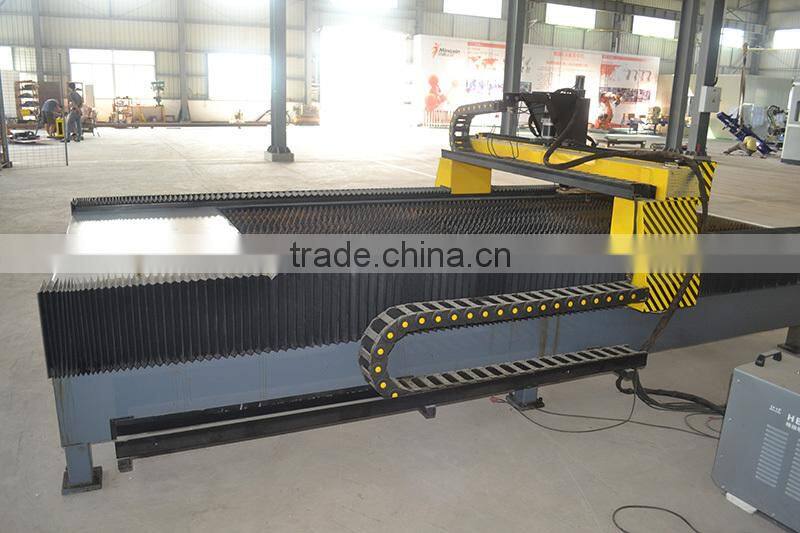

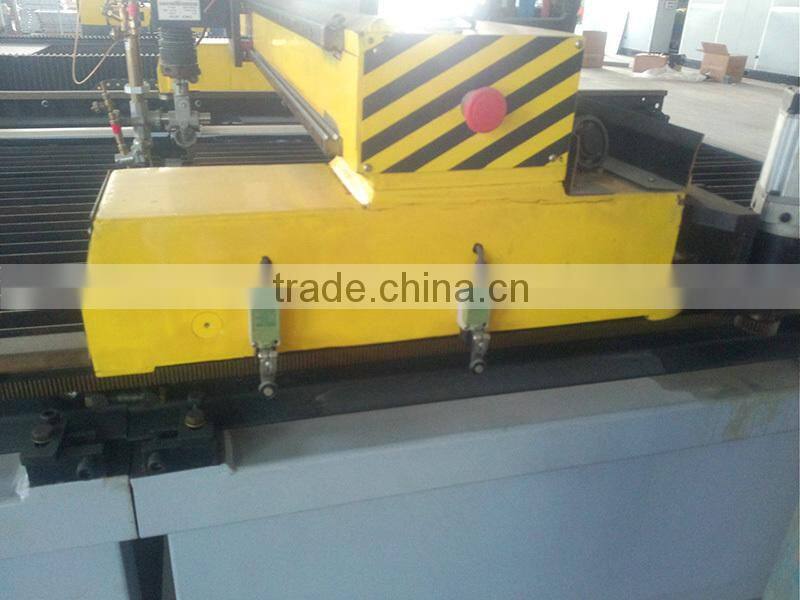

Main parts of table cnc flame cutting machine
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Installing and cutting video can be provided
- Engineers are available to service aboard
Zhangzhou Honghui Electrical Equipment Devolopment Co.,Ltd is a manufacture focus on producing CNC cutting machine and inverter welding machine for many years, the configuration of our machines are choosen by our technicists and engineers through over and over test and experiment, make sure it has better performance and higher quality on the cutting and welding job.
If any question or interest about our machines, kindly please contact us, we will give you a satisfied replay as soon as possible.
