Home > Packaging & Printing > Printing Machinery > Flexographic Printer > HSS-320G/450G Logistics Label (logo) Flexo Printing Machine With Three Die-cutting Stations

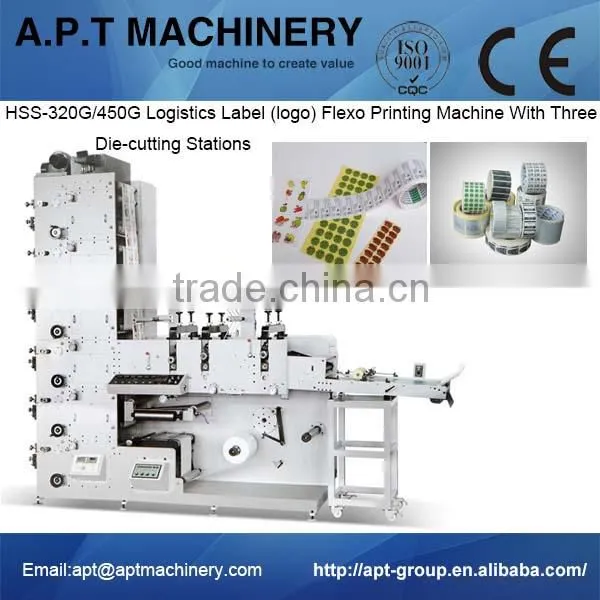

HSS-320G/450G Logistics Label (logo) Flexo Printing Machine With Three Die-cutting Stations
US$ 50,000 - 65,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HSS-320/450 Label (logo) Flexo Printing MachineUS$ 50,000 - 55,000MOQ: 1 Set -
HSQ-320 Automatic Label Slitting MachineUS$ 1 - 5,200MOQ: 1 Set
-
HSW-320 Horizontal Label Inspection MachineUS$ 2,500 - 3,000MOQ: 1 Set
-
HSM-320/450 Type Auto Die Cutting Machine for Self Adhesive TrademarkUS$ 12,000 - 15,000MOQ: 1 Set
-
HSD-320G/450G Label Slitting Machine With Rotary Die-cutting StationUS$ 1 - 10,000MOQ: 1 Set
Condition
New
Plate Type
Letterpress
Place of Origin
Zhejiang, China
Model Number
HSS-320G
Usage
Bill Printer, Card Printer, Label Printer, Paper Printer
Automatic Grade
Automatic
Voltage
380V
Gross Power
20kw
Dimensions(L*W*H)
2600*1500*1100mm
Weight
3500kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
HSS-320G/450G Logistics Label (logo) Flexo Printing Machine With Three Die-cutting Stations
Machine Features:
- Adopt the ceramic anilox cylinder to transfer the ink.
- Each printing unit adopts3600 plate-adjustment.
- Three die-cutting stations,the first and second die-cutting station can do double sides working, the third die-cutting station can be used as sheeter.
- Computerized web-guiding system is installed in the front of printing unit, it ensures the material always in the right position.(standard configuration)
- After sheeting in the third die-cutting station,conveyor belt can output the products orderly.(option)
- Unwinding and rewinding tension are auto-controlled by magnetic powder,two rewinders is possible in this machine.
- Video inspecting system is an option. It can watch the printing quality when in high speed.
- The ink rollers will be separated from the printing roller, and keep eunning when the machine stops.
- Main machine inverter is imported.
- The machine can finish material-feeding ,printing,vanishing,drying,laminating,die-cutting,
Rewinding and sheeter in a lump.It is ideal machine for printing note and top-grade adhesive label.
Main Technical Parameter:
Model |
HSS-320G |
Printing Speed |
100m/min |
Printing Colour |
5colours |
Max.Paper Roll Width |
320mm |
Max.Printing Width |
310mm |
Max.Unwinding Diameter |
650mm |
Max.Rewinding Diameter |
650mm |
Printing Length |
175-355mm |
Precision of Chromatography |
±0.1mm |
Dimensions(L x W x H) |
2.6*1.1*2.6(m) |
Machine Weight |
About 3350kg |
