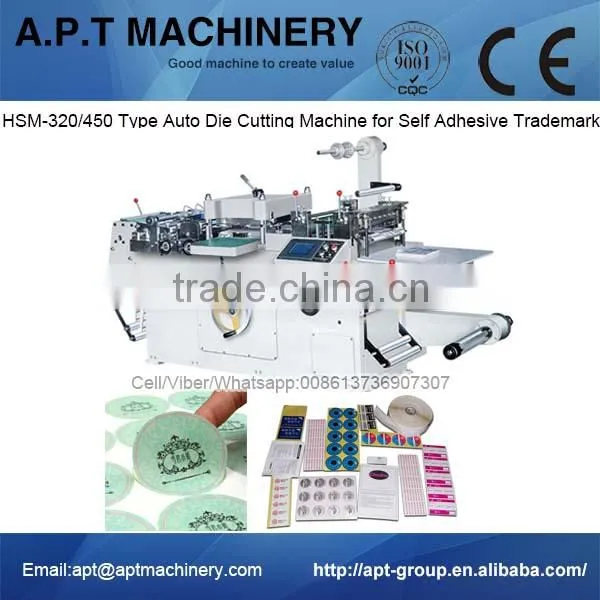

HSM-320/450 Type Auto Die Cutting Machine for Self Adhesive Trademark
Machine Features:
The machine adopts accurate flatten die-cutting system, material towing is controlled by servo motor; three photocells do the web-guiding job. Die-cutting, waste rewinding and rewinding (or sheeter) can be finished in one process. It’s suitable for die-cutting adhesive paper, Dacron label and laser hologram mark. This is the ideal association equipment for flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine. It’s the most efficient machine for printing house.
Main Technical Parameter:
Model |
HSM-320 |
Die Cutting Speed |
30-180time/min |
Max Feeding Diameter |
450mm |
Max.Paper Roll Width |
320mm |
Max.Die Cutting Width |
300mm |
Max.Die Cutting Length |
300mm |
Positioning Precision |
±0.10mm |
Main Motor Power |
2.2kw |
Total Power |
3.5kw |
Power Supply Voltage |
220v±10% |
Weight |
About 1500kg |
Dimension(L x W x H) |
2800x950x1400mm |
