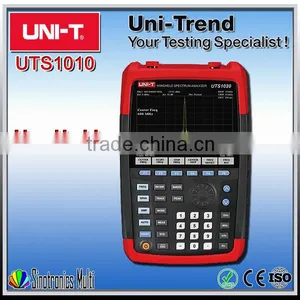

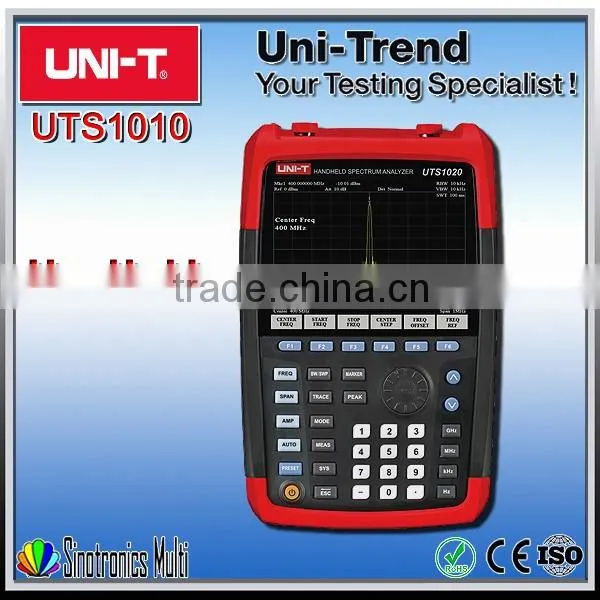

Best Handheld Spectrum Analyzer UTS1020
- 5000 Piece / Pieces per Month
- shanghai ningbo
Product Details
Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UTS1020 |
Product Description
1,6.5 inches Large High-Definition Screen for Clear View;
2,Splendid and Vivid Structural Design;
3,Light-Weight, Compact, Easy to Carry With;
4,Offers 6000mAh Large-Capacity Rechargeable Battery forContinuous Working up to 4 Hours;
5,Shares Similar Interface with that of Bench-Top Spectrum Analyzer.
6,Offers better specifications than that of prevailling portable spectrum analyzers prevailling in the market; Suitable for indoor and outdoor use.
Specification | UTS1020 |
Spectrum Measurement | |
Range | 9kHz~2.6GHz |
Resolution | 1Hz |
Accuracy | ±(Frequency Marker Readout*Frequency Reference Accuracy 1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)]+1Hz) |
Internal Reference(10MHz) | Aging Rate: <1ppm/year; Stability Over Temperature :<0.5ppm(15℃ ~ 35℃) |
Resolution Bandwidth (RBW) | |
Range | 10Hz~3MHz, Customized down to: 1Hz~10Hz |
Electability(60dB/3dB) | RBW≤500kHz :<5:1 Typical (Digital implementation,next to Gaussian shape); <5% Typical |
Accuracy | RBW≤500kHz : <5% Typical |
Video Bandwidth | 10Hz~3MHz |
Average Noise Level (1Hz RBW, 0dB RF Attenuator ) | |
Preamplifier Off | 100kHz~1MHz:<-100dBm-3×(f/100kHz)dB; 1MHz~10MHz:<-130dBm; 10MHz~1GHz:<-135dBm; 1GHz~3.6GHz:<-130dBm |
Preamplifier On | 100kHz~1MHz:<-120dBm-3×(f/100kHz)dB; 1MHz~10MHz:<-150dBm; 10MHz~1GHz:<-155dBm; 1GHz~3.6GHz:<-148dBm |
Phase Noise(fc=500MHz) | |
Offset 30kHz | -90dBc/Hz |
Offset 100kHz | -100dBc/Hz |
Offset 1MHz | -110dBc/Hz |
Sweep Time | |
Span (100Hz≤SPAN≤3.6GHz) | 10ms to 3000s |
Zero Span | 1ms to 3000s |
Sweep Modes | Continuous, Single |
Trigger | |
Trigger Source | AUTO,Video,EXT |
Offset 100kHz | 5V TTL Level (Typical ) |
Frequency Counter | |
Resolution | 1Hz,10Hz,100Hz,1kHz |
Uncertainty | Frequency Readout x Frequency Reference Progress Counter Resolution |
Amplitude Accuracy (20℃~30℃) | |
Overall Amplitude Accuracy(90%) | ±1.5dB,Input Signal Range: -50dBm ~ 0dBm |
Amplitude | |
Max. Safe Input Level | Average Continuous Power: 27dBm |
Max. Input DC Voltage | 50Vdc |
Input Attenuator Range | 0~39dB, in 3dB step |
1dB Compression | 7dBm |
Internal Memory | 128MB |
Residual Response | |
Third-Order Intercept(TOI) | >30MHz:13dBm |
Second Harmonic Intercept(SHI) | 30dBm |
Input Related Spurious | <-60dBm |
Residual Response | <-85dBm |
Tracking Generator (Optional) | |
Frequency Range | 100kHz to 1.5GHz |
Output Power | -30dBm ~ 0dBm, in 1dB step |
Output Flatness | ±3dB |
Input/Output | |
RF Input | SMA Type,Female (50Ω) |
USB | USB Host,USB Device |
LAN | 10/100 Base-T, RJ-45 Connector |
AM/FM Demodulation | Headset |
Reference Input/Output | 10MHz, BNC Female, Input: 0dBm ~ +10dBm;Ouput: 0dBm±2dB |
General Characteristics | |
Power | Li-ion Battery: 7.4V 6600mAh;DC Adapter: 100-240VAC 50/60Hz 1.5A |
Display | 6.5 Inches TFT LCD, 640×480 |
Product Color | Red and Grey |
Product Net Weight | 3.0 Kg |
Product Size (W×H×D) | 182mm × 288mm ×142mm |
Standard Accessories | DC Adapter,N/SMA Convertor,N/BNC Convertor, RF Cable, Antenna |
Standard Individual Packing | Gift Box, English Manua |
Standard Quantity Per Carton | 1 PC |
Standard Carton Measurement (L×W×H) | 400mm × 280mm × 220mm |
Standard Carton Cross Weight | 3.9 Kg |
We do not have MOQ, but we have MOV (Min order value) which is USD5000. If your order quantity is big enough, we will give you some discount.
