Best Function Generator UNI-T UTG9003C
US$ 87.9 - 101.9
MOQ: 6 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UTG9003C
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Function Generator UNI-T UTG9005CUS$ 86.3 - 101.9MOQ: 6 Pieces -
Best Function Generator UNI-T UTG9010CUS$ 108.6 - 114MOQ: 6 Pieces
-
Best Digital Oscilloscopes UNI-T UPO 2204CS Quality ChoiceUS$ 723.60 - 815.70MOQ: 1 Piece
-
Best Digital Double Channel Oscilloscopes UNI-T UTD2052CLUS$ 158.7 - 181.8MOQ: 1 Piece
-
Best Digital Double Channel Oscilloscopes UNI-T UTD2072CEX Quality ChoiceUS$ 206.3 - 236.4MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
UNI-T
Model Number
UTG9003C
Product Overviews

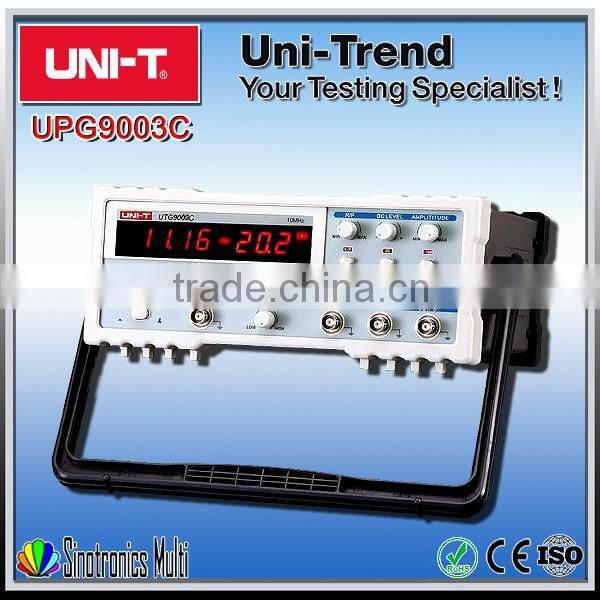

Product image
Product Description
UTG9000C series function generator can outputs sine, square,triangle, pulse, ramp, TTL single pulse etc. Its signal frequencyis up to 10MHz_ It can adjusts DC level, duty cycle. It displays the frequency with a 4-digits-LED meter, and displays the output amplitude with a 3-digits-LED meter. It also can be used as a 10MHz frequency counter.
Product parameters
| Features | Range |
| Model | UTG9003C |
| Waveforms | Sine, Square, Triangle, Ramp, Pulse, TTL etc. |
| Amplitude | |
| Range (no load) | from 1mVpp to 25Vpp |
| Accuracy | ±5% |
| Resolultion | 0.1mV |
| Frequency | |
| Range | from 0.2Hz to 2MHz |
| Accuracy | ±1% |
| Resolultion | 1mHz |
| Output Power | 4.5W (Power output) |
| Output Impedance | 1Ω (Power output) |
| Attenuator | 20dB + 40dB |
| DC Offset | from -10V to +10V |
| Display | Frequency: 4-digits-LED, Amplitude: 3-digits-LED |
| Duty Cycle | from 10% to 90% |
| Distortion of Sine | ≤2% (at 1kHz) |
| Rise time of Square | ≤50ns |
| VCF | No |
| Frequency Counter | |
| Frequency Range | from 0.2Hz to 10MHz |
| Amplitude Range | from 0.5Vp-p to 5Vp-p |
| Input Impedance | 10kΩ |
| General Characteristic | |
| Power | AC 220V,50Hz |
| Product Color | White and Gray |
| Product Net Weight | 2.5 Kg |
| Product Size | 320mm×240mm×100mm |
| Standard Accessories | BNC to Alligator Clips,Power Cord |
| Standard Individual Packing | Gift Box,English Manual |
| Standard Quantity Per Carton | 6 Pcs |
| Standard Carton Measurement | 660mm×410mm×600mm |
| Standard Carton Cross Weight | 18 Kg |
MOQ
We do not have MOQ, but we have MOV (Min order value) which is USD5000. If your order quantity is big enough, we will give you some discount.
