Specifications
1 For ceramic honeycomb2 capacity:2.5-3.0
3 stainless steel structure

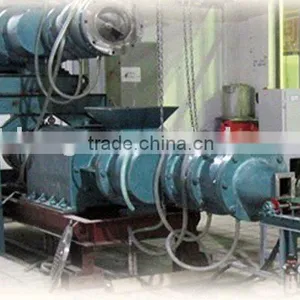

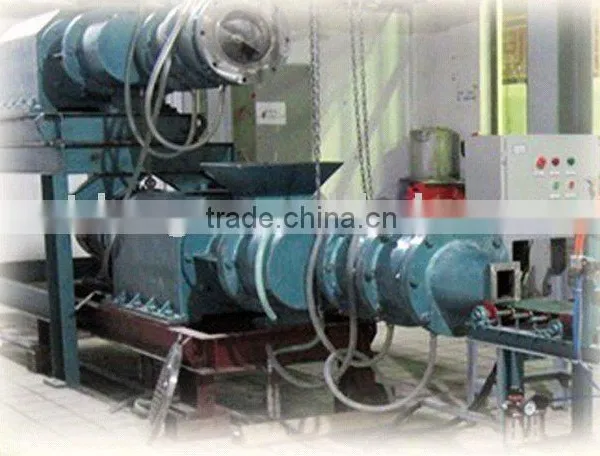

TCH 250 pre-extruder is designed based on the features of China environment friendly catalyst ceramics production, and absorbed the features of existing same type machines both home and abroad, at the same time, the machine could extrude plastic clay for other industries. It could change different specification of technology machine nose and nozzle or sieve plate for pre-extruding and filtering catalyst raw material or extruding ceramic roller.
Usually need two sets when production, upside and underside layout. The upper one is for pre-filtering, the lower on is for extruding cubic shape.
1. Machine material: Stainless steel.
2. Upper drive motor: 22KW
3. Diameter of screw blade:Φ250mm
4. Rotation speed of extruding shaft: 25Rpm
5. Install sieve plate in clay outlet(4-6 sieves)
6. lower drive motor: 22KW
7. lower extruding speed: 2.5-3.0T/H
8. Pre-extrude block size: 250X100X80mm(Length adjustable)
9. Overall size(LXWXH): About 4500x1200x1800mm
10. Motor supply: 380V Three phase 50HZ
