PRODUCT OVERVIEW
Our clay brick making machine includes 3 power configurations to adapt to global construction sites and small workshop production:
·✋ Manual Type: No electricity or fuel required, zero energy consumption, ideal for remote off-grid mountain areas and family mini workshops
·⚡ Electric Hydraulic Type: Stable 30-ton hydraulic pressure with higher hourly output, designed for mass production in fixed factory plants

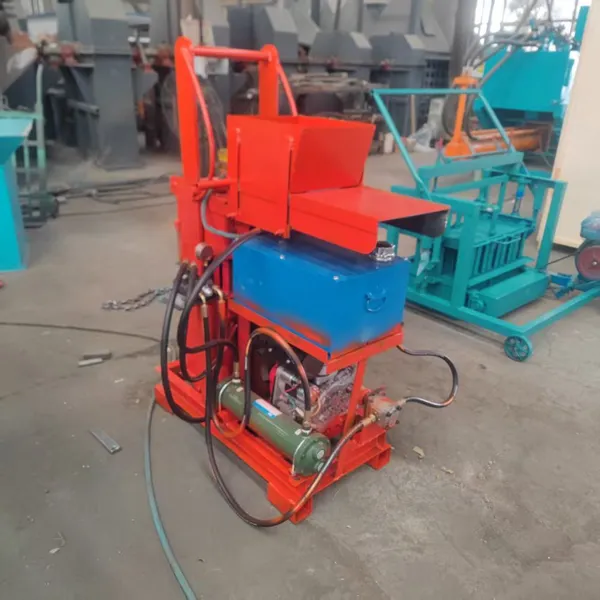

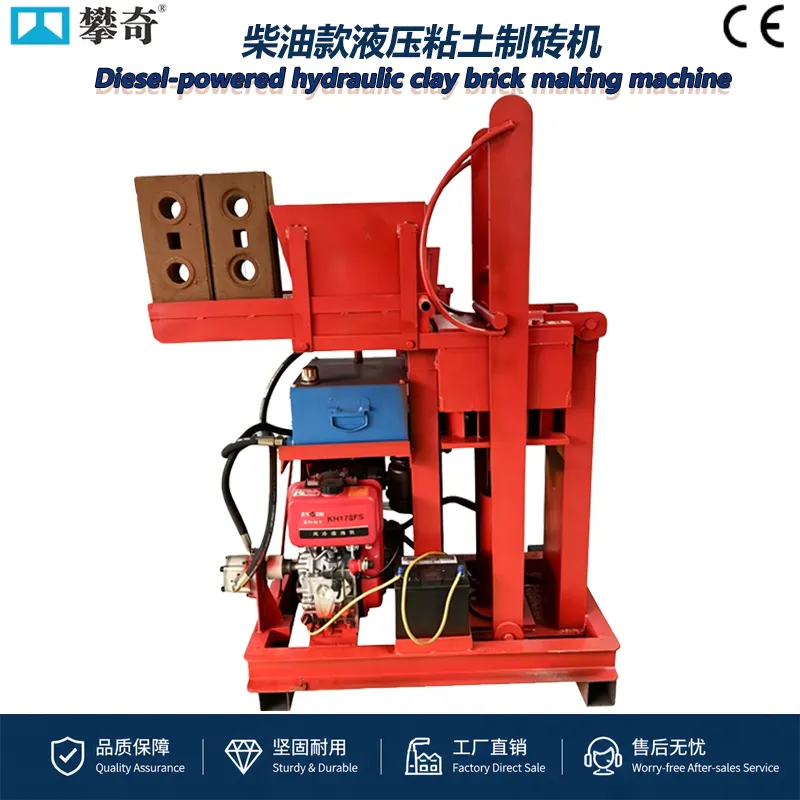

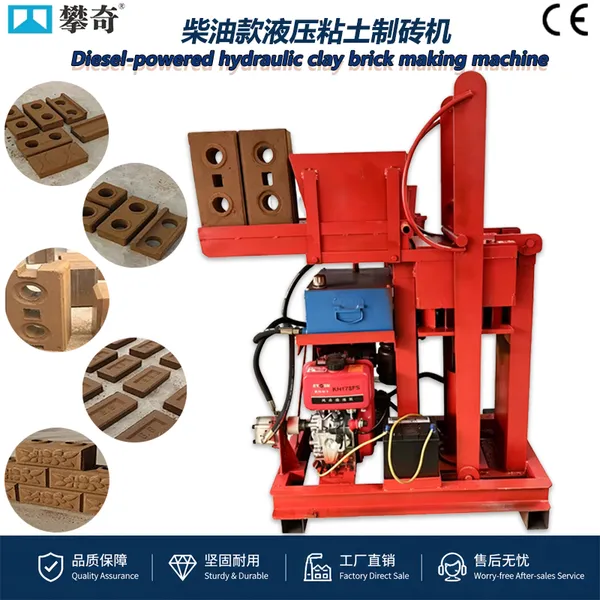

· 🛢️ Diesel Hydraulic Type: Independent power system, operates reliably at sites with unstable or no grid power supply
Quick-change customized molds support production of interlocking bricks, standard solid bricks, paving blocks and more. High-pressure compaction delivers uniform density and high hardness for finished bricks, widely applied in residential wall construction, municipal road projects and landscape slope protection.
PRODUCT ADVANTAGES
| ✅ Three power options to fit all production environments worldwide |
| ✅ Custom interchangeable molds, one machine produces multiple brick specifications |
| ✅ 30T hydraulic pressing system for dense, high-strength bricks with high yield rate |
| ✅ Simplified mechanical structure, easy operation with short training for new operators |
| ✅ Thickened wear-resistant steel frame, low failure rate and affordable maintenance cost |
| ✅ Wide application: housing construction, road paving, river slope stabilization, garden landscaping |
Product Specifications
| Model | PQ2-40 Manual | PQ2-40 Electric | PQ2-40 Diesel |
|---|---|---|---|
| Molding Cycle (s) | 60 | 60 | 60 |
| Power (kW) | N/A | 30 | 16 |
| Output (times/8h) | 300-400 | 300-400 | 300-400 |
| Overall Size (mm) | 1500×600×1100 | 1200×660×1530 | 1300×700×1600 |
| Weight (kg) | 200 | 350 | 400 |
A full range of customizable models are available. Contact Seven for detailed customized quotations and technical datasheets.
KEY STRUCTURE & WORKING PRINCIPLE
The three variants cover all mainstream operation scenarios: off-grid remote zones, permanent factory facilities, and unstable-power field construction sites. The core working mechanism relies on high-pressure compaction to produce dense, high-strength clay bricks, perfectly suited for rural housing and small-scale block manufacturing workshops.

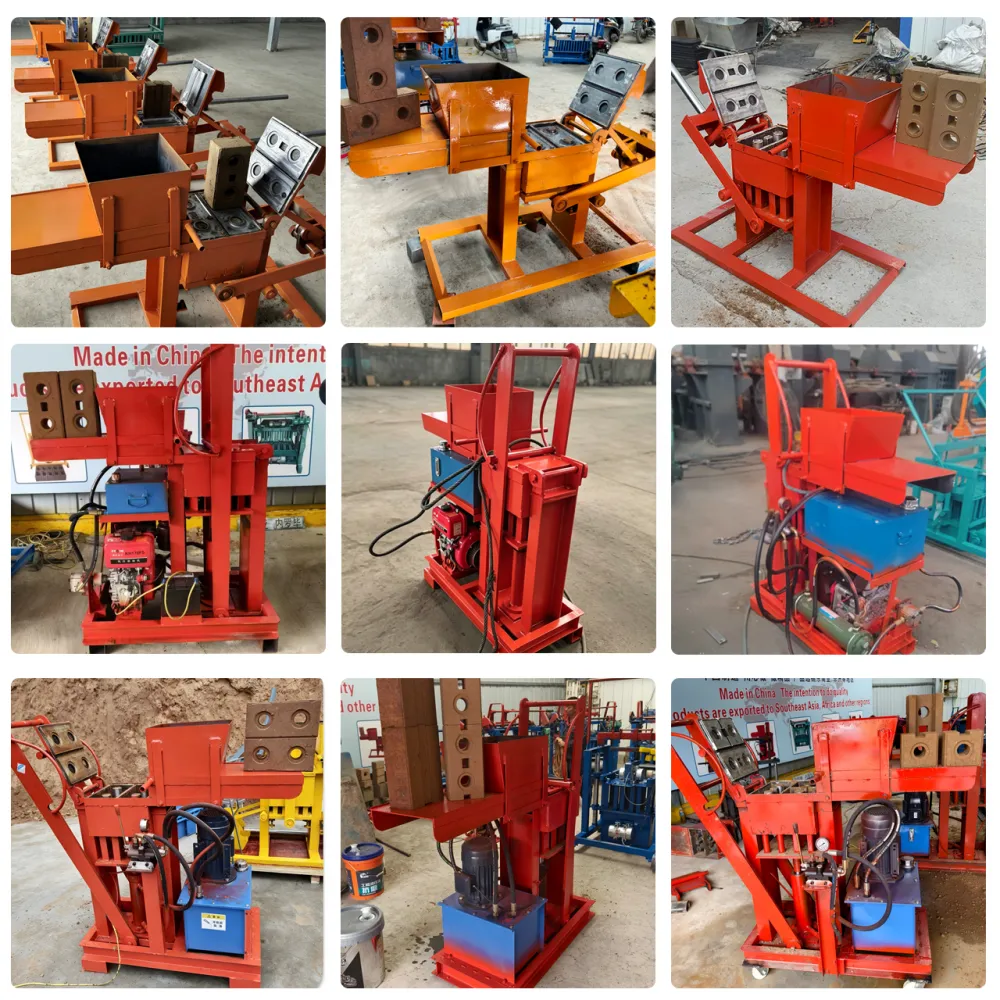

MULTIPLE UNIT MODELS AVAILABLE
CORE COMPONENTS
1. Concrete Mixer
Blends cement, sand, aggregate, fly ash and raw materials into homogeneous mixture, essential pre-processing equipment for brick production.
2. Conveyor Belt
Automatically transports mixed raw material to machine hopper to enable continuous production and cut manual feeding labor.
3. Brick Transport Cart
Moves finished bricks and pallets for easy stacking and stock handling.
4. Pure Copper Main Motor
Primary power unit with copper winding for strong torque, high heat resistance and extended service lifespan for stable operation.
6. Vibration Motor
Delivers high-frequency vibration to compact raw material inside molds for dense, high-compressive-strength finished blocks.
7. Feeding Hopper
Stores incoming mixture and feeds evenly into mold cavities to guarantee consistent brick dimension and quality per batch.
FULL PRODUCTION LINE PROCESS
Concrete Mixer → Conveyor Belt → Feed Hopper → Brick Making Unit (Copper & Vibration Motor, Cabinet Controlled) → Finished Brick Transfer Cart

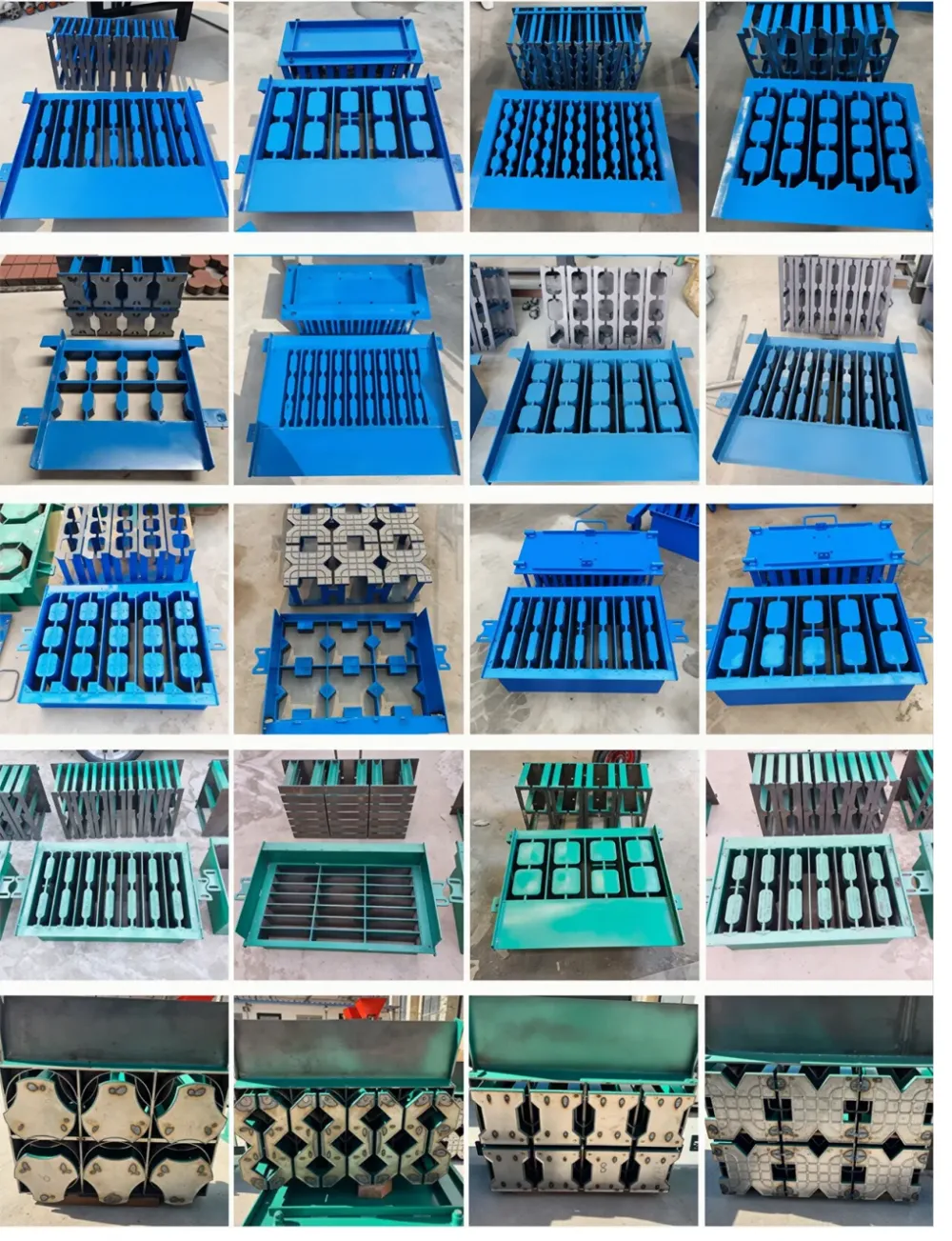

MOLD OPTIONS
RAW MATERIALS & FINISHED OUTPUT
The machine supports multiple feedstocks: water, sand, cement, construction waste, stone aggregate, fly ash, cinder, clay, coal gangue. Proper proportioning produces qualified hollow blocks, solid standard bricks, curbstones and more; this process recycles industrial solid waste to lower total production costs.
Custom molds manufacture hollow blocks, solid standard bricks, perforated blocks, interlocking retaining bricks, paving blocks and grass planting bricks. Widely deployed for residential construction, municipal roadworks, landscape greening and river bank stabilization. High-pressure forming ensures precise dimensions, dense structure and high compression strength to meet global construction standards.
Sample finished goods include hollow blocks, solid standard bricks, grass pavers, curbstones, interlocking slope protection blocks. High mechanical strength and full size range fit wall masonry, pavement, landscape and hydraulic slope works.
Colored decorative paving bricks are available with customized pigment finishes for sidewalks, plaza surfaces and park trails, balancing structural durability and aesthetic appearance.
COMPANY PROFILE
Henan Panqi Heavy Industry Technology Co., Ltd. is a professional manufacturer and exporter specialized in brick making machinery. We focus on research, production and sales of non-fired block machines, hollow brick machines, semi-automatic and full-automatic brick production lines.
Our factory has complete production equipment and standardized production processes. All machines adopt thickened frame, pure copper motors and high wear-resistant manganese steel molds. Customized voltage, brick sizes and production layouts are available.
With stable quality and reliable after-sales service, our machines have been exported to more than 100 countries in Africa, Southeast Asia, the Middle East and South America. We provide one-stop brick factory solutions with high-quality machines, stable performance and long-term technical support for global customers.
QUALITY CERTIFICATES
CUSTOMER SITES
Real-site photos display machine operation at partner factories and construction yards, covering equipment installation, commissioning, full-line production and buyer acceptance inspections, reflecting actual output performance and end-user feedback.
EXPORT PACKING & LOADING
Images show professional reinforced packaging and container loading procedures. Secure fixing and shockproof wrapping prevent transit damage during long ocean freight, ensuring on-time intact delivery to global destinations.
FREQUENTLY ASKED QUESTIONS
Q1: Are you a direct brick machine manufacturer?
A: Yes, we operate a full in-house production, QC and after-sales system based in Zhengzhou, Henan. Factory visits and machine test runs are welcome anytime.
Q2: What is your MOQ? Can you send physical samples?
A: Minimum order quantity is 1 unit. As heavy industrial machinery, physical sample shipping is unavailable, but we supply HD operation videos, full spec sheets and virtual factory tours online.
Q3: How do you guarantee machine quality and service life?
A: Units are built with thick high-tensile steel plate; critical components receive heat treatment and strict quality inspection. Every machine undergoes no-load and full-load testing before shipment for low breakdown rates and extended service life.
Q4: What is production lead time? Is customization supported?
A: Standard model lead time is around 30 working days. Custom configuration is available based on site layout, raw material type and required brick sizes; customized delivery timeline will be confirmed formally in sales contract.
Q5: What after-sales support is included? How fast is troubleshooting assistance?
A: 1. 1-year full machine warranty, extended warranty optional for key components
2. 24/7 online technical support for remote commissioning & repair guidance via video/photos
3. Complete English operation manuals and online training tutorials
4. Long-term fast dispatch of replacement spare parts
Q6: Which raw materials and brick types are compatible?
A: Compatible feedstocks: cement, sand, gravel, fly ash, construction debris, natural clay etc. Mold swaps produce standard solid bricks, hollow blocks, curbstones, grass pavers, interlocking slope blocks and other non-fired masonry units.
For any further inquiries, please contact Seven anytime.
