Help CenterMulti-layer Roller Drying Kiln
Related Products
-
Ceramic Honeycomb CutterUS$ 15,000 - 15,000MOQ: 1 Set -
Ceramic Ball MachineUS$ 15,000 - 18,000MOQ: 1 Set
-
Clay Roofing Tile MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
Clay Tile Forming MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
Tunnel Kiln for Clay Roofing Tile and Clay BricksUS$ 300,000 - 3,000,000MOQ: 1 Set
Specifications
1. SACMI technology2. uniformly drying
3. improve productivity largely
4. Low defect ratio
5. Unique technolgy in Asia

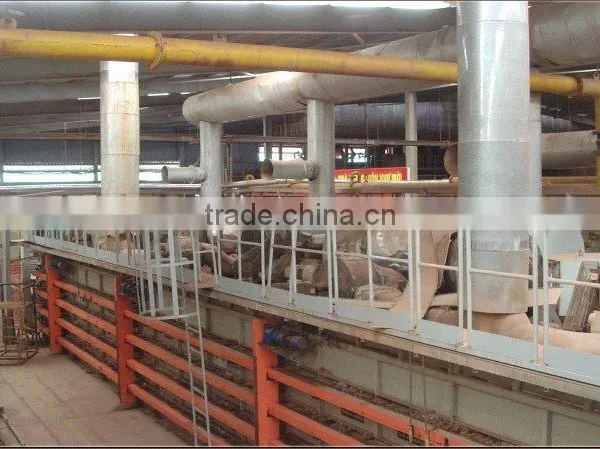

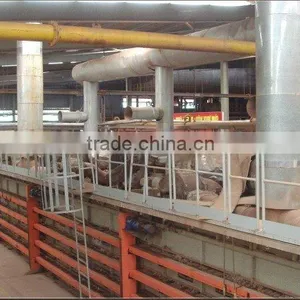

5-layers roller drying kiln is the most advanced roller dryer. The success of this equipment brings a technological revolution in drying technology. It is not only solved the problems of uneven drying in previous chamber type drying technology and easy to crack, deformation and others, but also shorted the drying time and improved the productivity largely. This equipment is suite for drying some high class glazed tiles, split tiles, terracotta facade tiles which adopt wet extruding, roller dyer drying.
The dryer enable the brick fast drying in a very widely range of drying period (Depend on the uniformity of whole technological parameter and the adobe steady performance). Through every stage of drying, the water content of adobes could meet 1% when getting out drying kiln. The kiln inner and top wall use 2mm steel board. According to drying feature of product, the air ducts have been segment special handing, make sure the temperature and humidity in kiln is very uniformly.
The transmission adopted conventional 45°C bevel gear driving, gear is soaked in oil tank to guarantee the well running condition of driving system, thus maximize guarantee the driving balance. Separate drying, every layer is equipped with a frequency conversion, total 5 frequency conversion for speed regulating to make the dryer could adopt different product, and enable a very large regulating range of drying period.
Main technical parameters:
Unit length: 5250mm
Rated length: 3000mm
Layers: 3~5 layers (Per requirement to design)
Drying temperature: 50~150°C
Adobes enter dryer water content: 12~17%
Adobes get out dryer water content 1~2%
Roller diameter: Φ60mm
Center distance between rollers: 87.5mm
Roller material: seamless steel pipe
Roller length: 3900mm
Drying kiln consists of:
Transmission: bevel gear driving, unified control by 1*5 frequency conversion (1Set/layer),
12 drive motors /layer.
Fan: thermal supply cycle fan 12 Sets (18.5kw) + dehumidify fan 2 Sets; Fan is variable frequency control.
Combustion engine: 12 Sets
Temperature control system: balance air supply system, air regulating valve and auto temperature PID adjuster.
Hygrometer: Set 6 humidity control devices, and designed manual humidity test holes in other proper area, mainly regulate the humidity manually (spot check by portable humidity detector)
