Help CenterSBWZ/R Series Integral Temperature Transmitter
Related Products
-
JPB6300 Series Pressure TransmitterNegotiableMOQ: 50 Pieces -
JPB2000 Series Pressure TransmitterNegotiableMOQ: 50 Pieces
-
LPB8500 Series MiNi Pressure TransmitterNegotiableMOQ: 50 Pieces
-
LPB8300 Series MiNi Pressure TransmitterNegotiableMOQ: 50 Pieces
-
LPB8100 Series High Performance Pressure TransmitterNegotiableMOQ: 50 Pieces
Specifications
can be used with instrument,recorder and computer to be a temperature control system.Summary:
SBWR/Z series temperature transmitters are scene installation temperature transmitter units to be used to measure the temperature of the gas,liquid and so on between-200℃ and +1600℃.They adopt two-wire way,output the current signal of 4 to 20 mA,can be used in the junction box or fixed in the instrument box.
The product have already extensively applied in the petroleum,chemistry industry,metallurgy,electric power,light industry,textile industry,food processing,etc.and can be used with instrument recorder and computer to be a temperature control system.
Characteristics:
- Compensation for cool end with high accuracy
- Output signal linear with temperature
Technical parameter
- Ambient temperature effect:
Grade 0.2:0.02% F S/℃
Grade 0.5:0.05% F S/℃
Grade 1.0:0.075% F S/℃
- Output:4 to 24 mA,two-wire transmit
- Power supply:14 to 34 VDC,or 24 VDC
- Load(Ω):<(U-12)/0.02A
- Error of Compensation for cool end:<1℃(under work Temp)
- Work Temp:-25~85℃
- Storing Temp:-40~125℃
- Humidity:5~95%
- Accuracy of the indicator:±2.5%(100% scale)
±1.0%(LED)
- Power onsume:<0.5W
Connected diagram

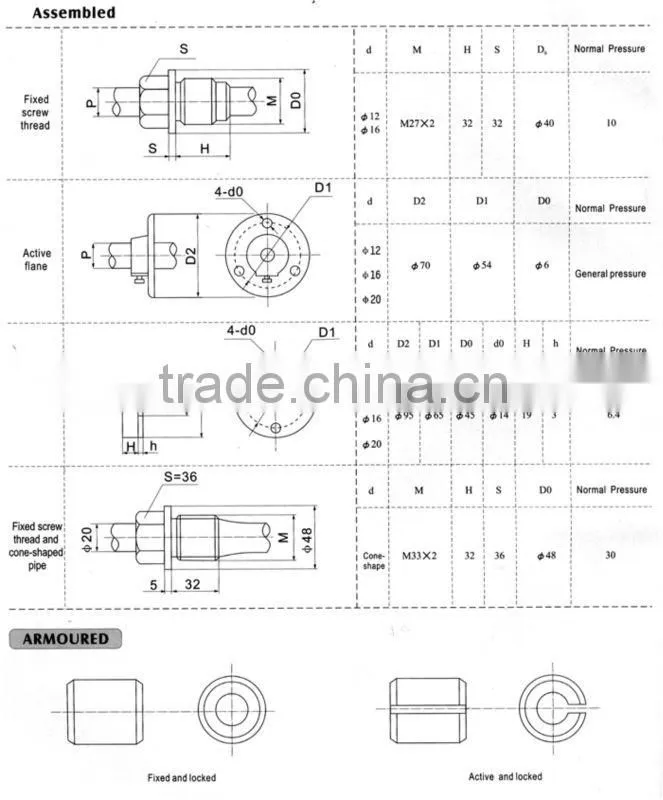

Size nominal pressure:

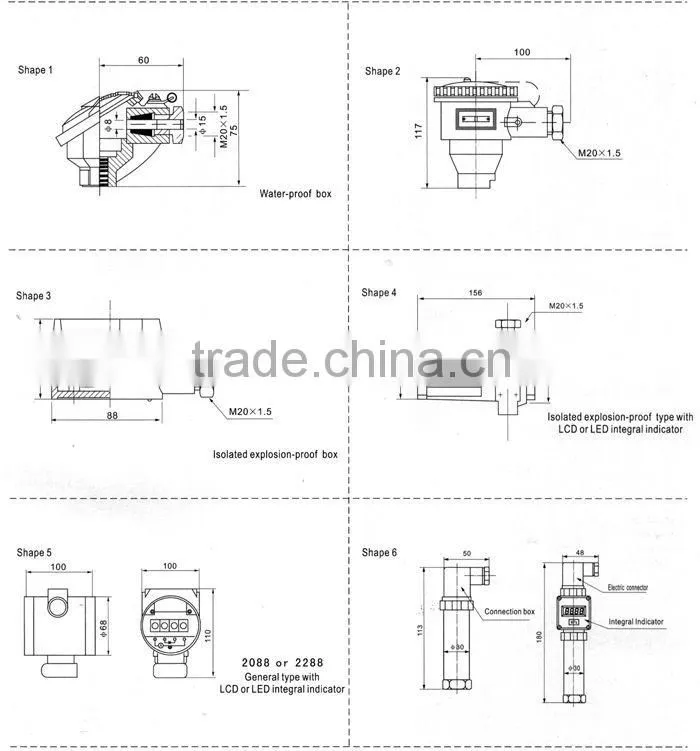

The Size of Junction Box:
