LPB8500 Series MiNi Pressure Transmitter

Specifications

Summary:

PB8500 Series diffused silicon stain pressure transmitters are high medium temperature industrial pressure transmitters, which use the sensor elements with high accuracy, stability and reliability .The products are the scene remote measurement metres that measure the pressure of the liquid or gas or the level of the liquid in the high temperature , then change into standard electric signal.

Scope of application

• Light industry
• Medical instrumentation
• Spaceflight machine
• petroleum chemical industry
• Process pressure control
• Navigation shipbuilding
• Water supply system with constant pressure
• Other auto-control and measuring system
• Power station

 Characteristics:

• Wide range:-10KPa~40MPa
• Up to 125℃
• Zero and range adjustable
• Reverse polarity and limit protection
• Extensive and conveninent
• High accuracy,stability,reliability
• Easy to fix

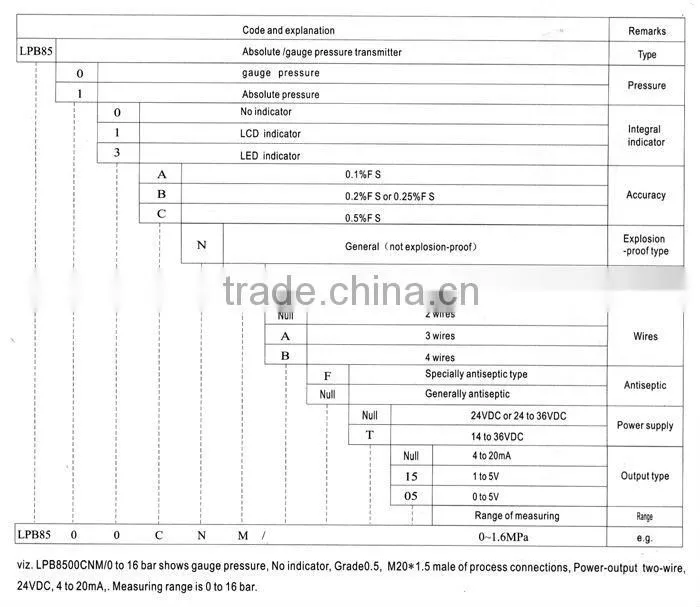

Technical parameter

Linear:Superior to 0.25%F S

Thermal effect:±0.03%F S/℃

1 year stability:superior to 0.25%F S

Response time:≤10ms

Power supply:24 VDC(or 12~35VDC)

Output:4~20mA

Load(Ω):<(U-12)/0.02A

Proof pressure:150%F S

Burst pressure:300%F S

Compensate Temp: -10~+70℃

Storing Temp: -40~+125℃

Process connection:M20*1.5 male or 1/2NPT male

Mounting position effect:unrestricted

Enclosure Protection:IP65

Wetted parts:304 stainless steel

Diaphragm material:316L stainless steel

Housing material:stainless steel

Electrical connection:DIN 43650 Plug Connector

Weight:about 500g

Power onsume:<0.5W(24VDC)

Connected diagram:
