JPB2000 Series Pressure Transmitter

JPB2000 Series Pressure Transmitter thumbnail-1
JPB2000 Series Pressure Transmitter photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GAOHE
Model Number:
JPB2000 Series
Contact Supplier Request Quote Chat Now
Shanghai Gaohe Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China(mainland)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name GAOHE
Model Number JPB2000 Series

Specifications

JPB2000 series use the sensor elements with high accuracy, stability and reliability.

Summary:


PB8500 Series diffused silicon stain pressute transmitters measure the pressure of water or air,use domestic sensor,with high reliability and high performance-cost.



Scope of application

  • Light industry
  • Environment protection and water-treatment
  • Power station
  • petroleum chemical industry
  • Process pressure control
  • Water supply system with constant pressure
  • Other auto-control and examination

 Characteristics:

  • High performance-cost
  • Wide range:-1~600 bar
  • Zero and range adjustable
  • Reverse polarity and limit protection
  • Extensive and conveninent
  • High accuracy,stability,reliability
  • Lighting strike protection
  • Housing pretection grade:IP65(for JPB2000)

Technical parameter



Linear:Superior to 0.5%F S

Thermal effect:±0.03%F S/℃

1 year stability:superior to 0.5%F S

Response time:≤10ms

Power supply:24 VDC(or 12~35VDC)

Output:4~20mA(or 0~10mA,1~5V,0~5V,0~10V)

Load(Ω):<(U-12)/0.02A

Proof pressure:150%F S

Burst pressure:300%F S

Compensate Temp: -10~+70℃

Storing Temp: -40~+125℃

Process connection:M20*1.5 male or 1/2NPT male

Enclosure Protection:IP65(only to jPB2000)

Wetted parts:304 stainless steel

Diaphragm material:316L stainless steel

Housing material:Cast Alum bum(JPB2000),Stainless Steel(JPB2300)

Weight:400g(JPB2000),450g(JPB2300)

Power onsume:<0.5W(24VDC)

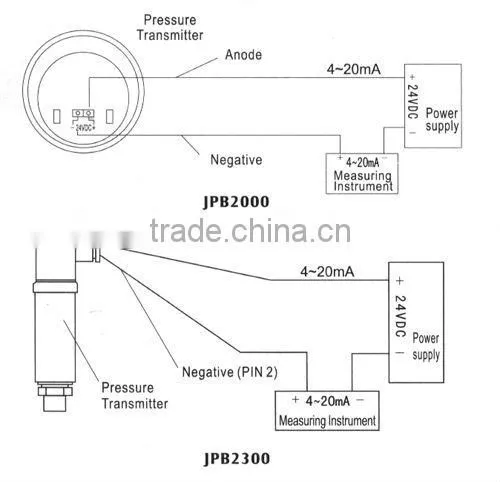

Connected diagram:

JPB2000 Series Pressure TransmitterJPB2000 Series Pressure TransmitterJPB2000 Series Pressure Transmitter
