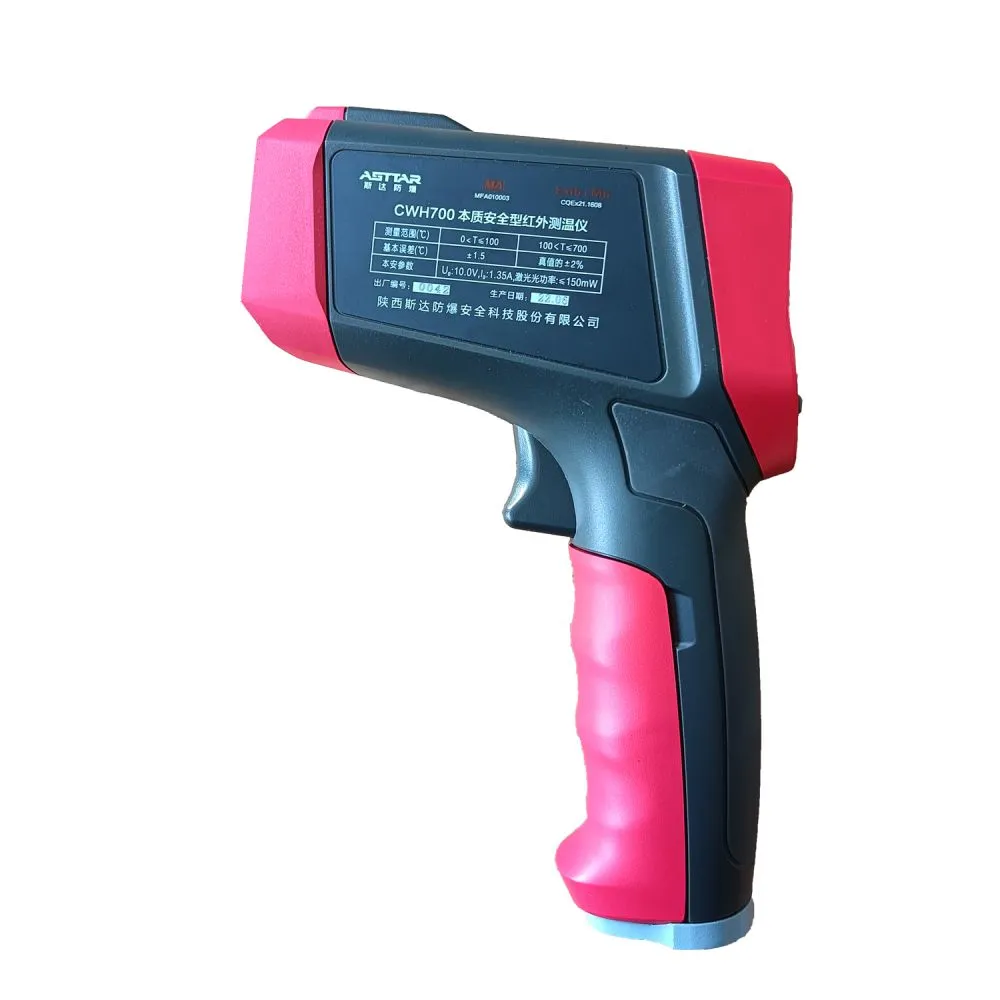

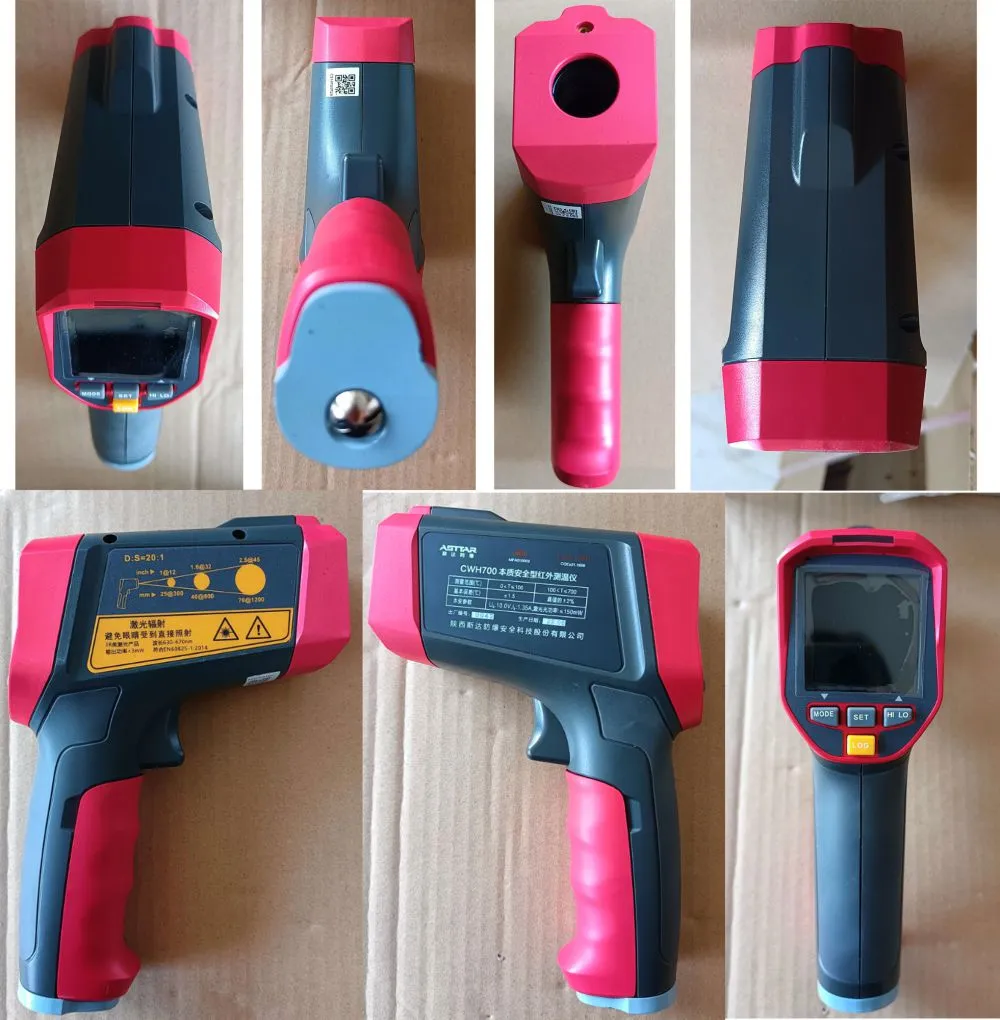

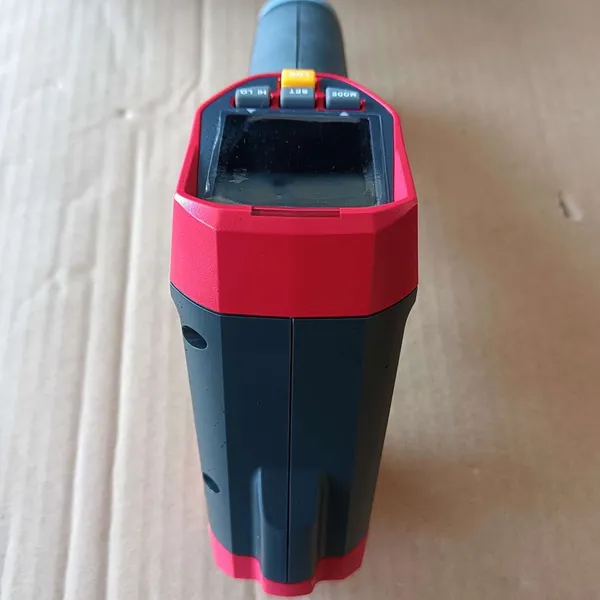

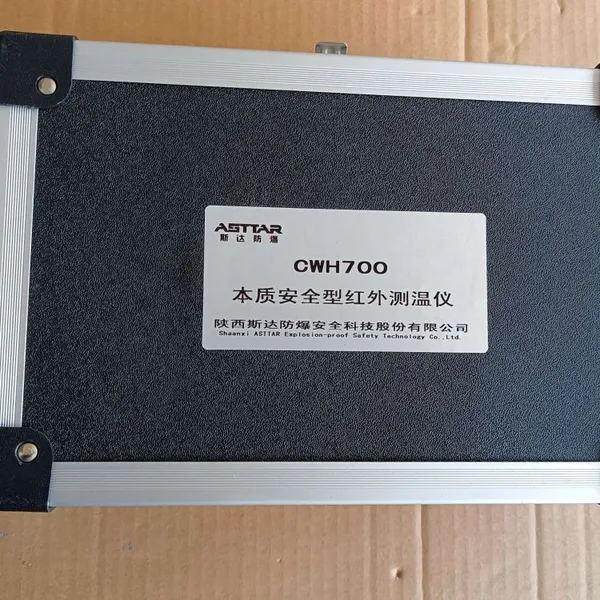

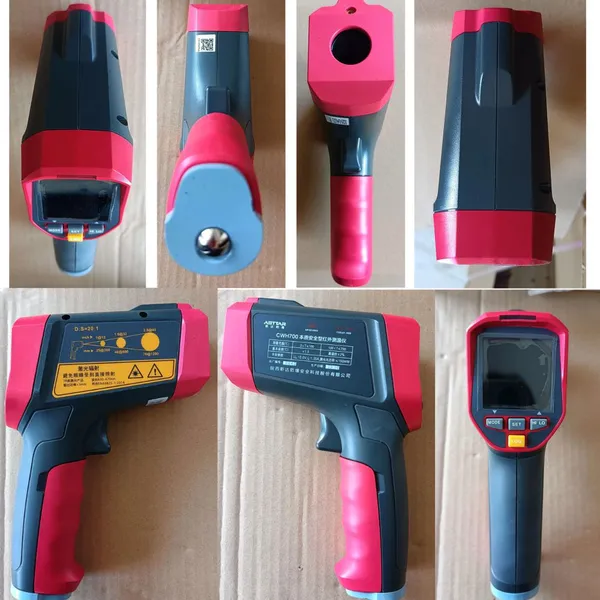

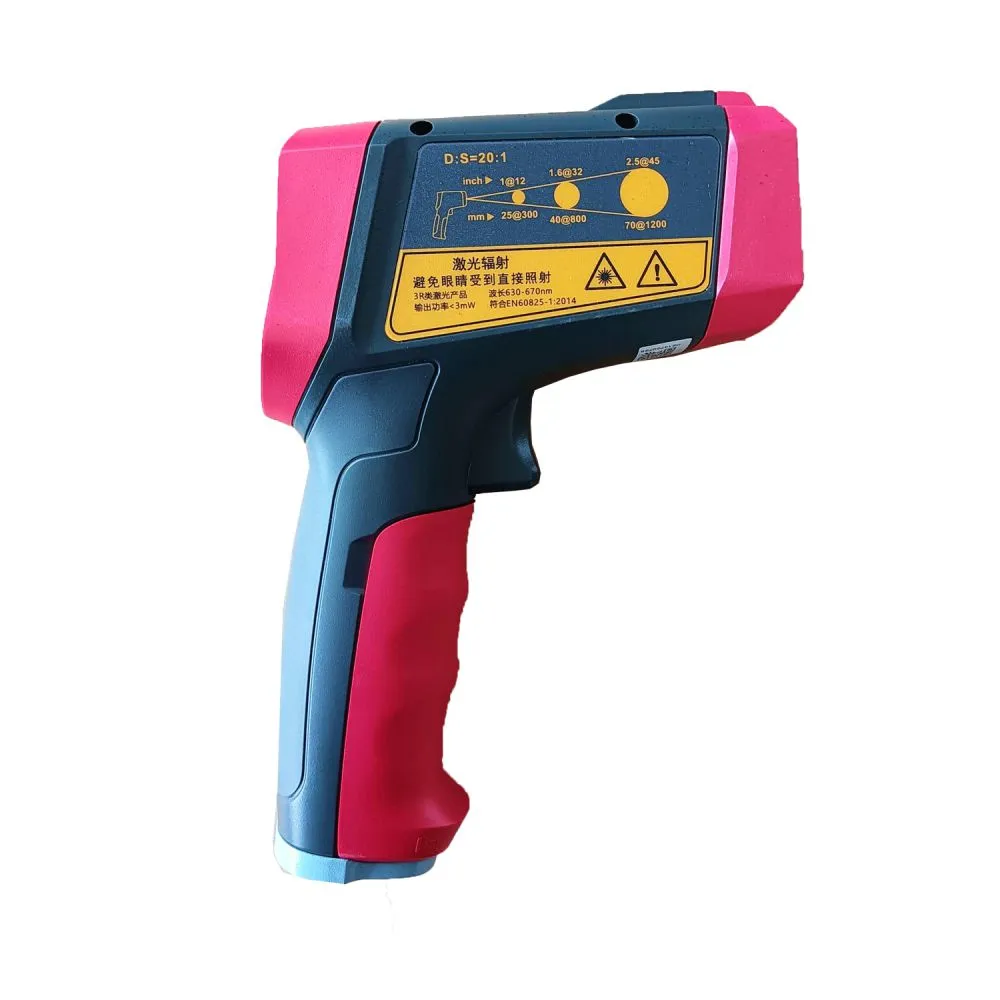

CWH700 Intrinsically Safe Infrared Thermometer
Application
It is a professional non-contact high-precision infrared temperature detector; the surface temperature can be quickly and accurately determined by measuring the infrared energy radiated from the target surface, which is rugged, small in size, high in precision, dustproof, waterproof, easy to use and so on.
The thermometer is mainly used to measure the temperature of the object surface quickly and non-contact in the working environment with flammable and explosive gas mixture.
Main specification
Item |
Main technical specification |
|
Measurement range |
(0-700)°C (The temperature measurement value can be set to a minimum of -30 °C and a maximum of 700 °C |
|
|
Measurement accuracy The ambient temperature is 24°C ±1°C |
Temperature T °C |
Basic error °C |
0 |
±1.5°C |
|
100 |
±2% of the true value |
|
LED display |
EBTN color screen |
|
Temperature coefficient |
0.1°C/ °C (0.1°F/ °F) or ±0.1% of reading per degree, take a larger value |
|
Repeatability |
0.7°C or 0.7% take a larger value (1.5°F or 0.7% take a larger value ) |
|
Emissivity |
0.1-1.0(Factory default value 0.95) |
|
Spectral response |
(8-14)μm |
|
Display resolution |
0.1 °C (0.1 °F) |
|
Automatic shutdown |
15 seconds |
|
Low voltage prompts |
√ |
|
High, low temperature LED alarm |
√ |
|
High, low temperature sound alarm |
√ |
|
Digital hold |
√ |
|
Unit conversion (° C / °F) |
√ |
|
Data storage |
99 sets |
|
Aiming method |
laser locking measurement |
|
Display information |
MAX (maximum value); MIN (minimum value) DIF (temperature difference) AVG (average value) |
|
Reservation measurement function |
The longest reservation can be set to be measured every 4 days, the shortest reservation can be set to be measured every 1 minute; Up to 99 measurements |
|
Battery pack |
6F22 type / 9V Zinc-manganese dry battery |
|
Explosion-proof type |
Exib I Mb |
|
Dimension |
(179×126.5×53)mm |
|
Weight |
0.31kg |
|
Protection grade |
IP65 |
|
|
Operating environment
|
Operating temperature: (0-40)°C ; Operating humidity: Atmospheric pressure: (80-110) kPa |
|
