JPB6300 Series Pressure Transmitter

Specifications

JPB6300 series use the sensor elements with high accuracy, stability and reliability.

Summary:

JPB6300 Series pressure transmitters measure the pressure of water or air.The sensors of JPB6300 series are piezoresistive, pressure sensors based on ceramic.JPB6300 series pressure transmitters have high raliability and high performance-cost.



Scope of application

• Light industry
• petroleum chemical industry
• Process pressure control
• Water supply system with constant pressure
• Power station
• Environment protection and water treatment
• Other Aoto-control and examination

 Characteristics:

• Wide range:1~400 bar
• Zero and range adjustable
• Reverse polarity and limit protection
• High perfomance-cost
• Lighting strike protection

Technical parameter



Linear:Superior to 0.5%F S

Thermal effect:±0.05%F S/℃

1 year stability:superior to 0.5%F S

Response time:≤10ms

Power supply:24 VDC(or 12~35VDC)

Output:4~20mA

Load(Ω):<(U-12)/0.02A

Proof pressure:150%F S

Burst pressure:300%F S

Storing Temp: -40~+125℃

Process connection:1/2 NPT male or 1/4NPT male or 1/8 NPT male

Wetted parts:304 stainless steel

Housing material:stainless steel

Weight:about 150g

Power onsume:<0.5W(24VDC)

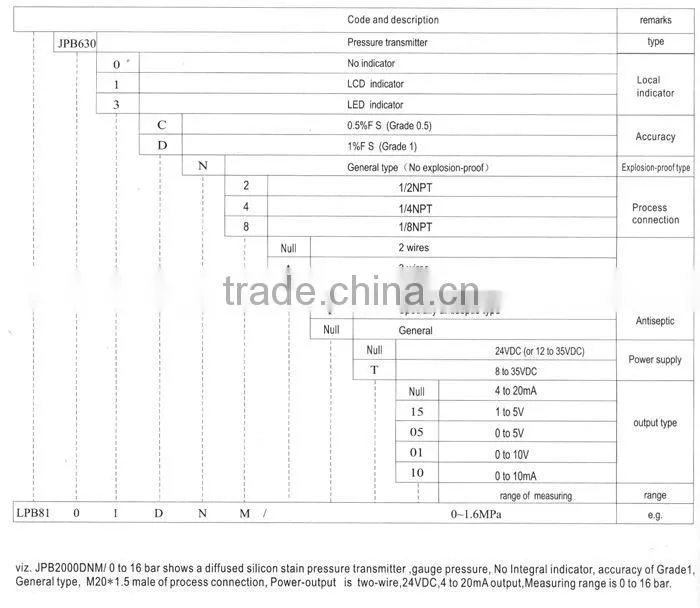

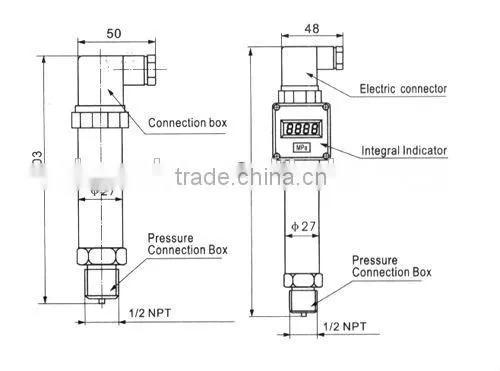

Connected diagram:
