Specifications
They are famous for high accuracy,small,light,firm,convenient,good overload protection,the price is very low according to IECSummary:
SST series capacitance transmitters have so many advantages such as new design,all specifications,easy installation,essence safety explosion-proof etc.They are famous for high accuracy,small,light,firm,convenient,good overload protection.
SST series capacitance transmitters include pressure,difference of pressure,absolute pressure,flux,level and so on.The product whose options,signal,installation are according to the worldwide companies and price is very low observes domestic IEC,so it is the best choice for the customer.
Characteristics:
- Super performance,measuring the pressure
- Difference of pressure,absolute pressure,flux,level
- Simulation accuracy: ±0.075% ~ ±0.1%F S
- Complete performance:±0.25%F S
- Stability:0.25% 60months
- Scale:100:1
- Response time:0.2s
- Small,stainless steel flange
- Best measure
- Sole sensor with H jacket(patent)
- Excellent cold and hot stabilities
- Brainpower transmitter with 16Bits computer
- 4 to 20 mA,HART consultative DS,long-distance control
- Support to upgrade
Technical parameter
- Accuracy:±0.25% to ±0.075%
- Ambient temp effect/28℃
Scale ratio from 1:1 to 10:1≤±0.2%
Minim scale:≤1.5kPa:±0.5%
- Influence of pressure(differential pressure)
1.zero error
0~13.7Mpa,±0.2%/6.9Mpa
over 13.7Mpa,±0.5%/6.9Mpa
2.full scale error:±0.25%/6.9Mpa
- Stability:60 months,±0.25%F S,28℃
Max pressure:6.9Mpa,scale for 1:1
- Place influence:
Move less than 250 Pa on zero,no influence for scale
- General performance:
±0.25%(scale of 1:1,28℃ changeable,6.9 Mpa)
- Vibration influence(except minim scale)
Measure random axis<±0.1%F S(15~2000Hz)
- Influence of power supply:effect≤0.005%/V
- Isolation and reverse polarity protection
No arc light under 50 Hz,100 Vpp
No damage when reverse connection under 24 VDC
- Power supply:12~45 VDC

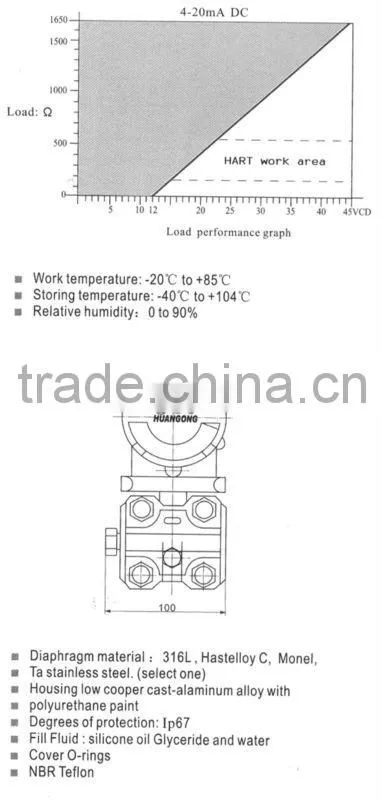

Connected diagram

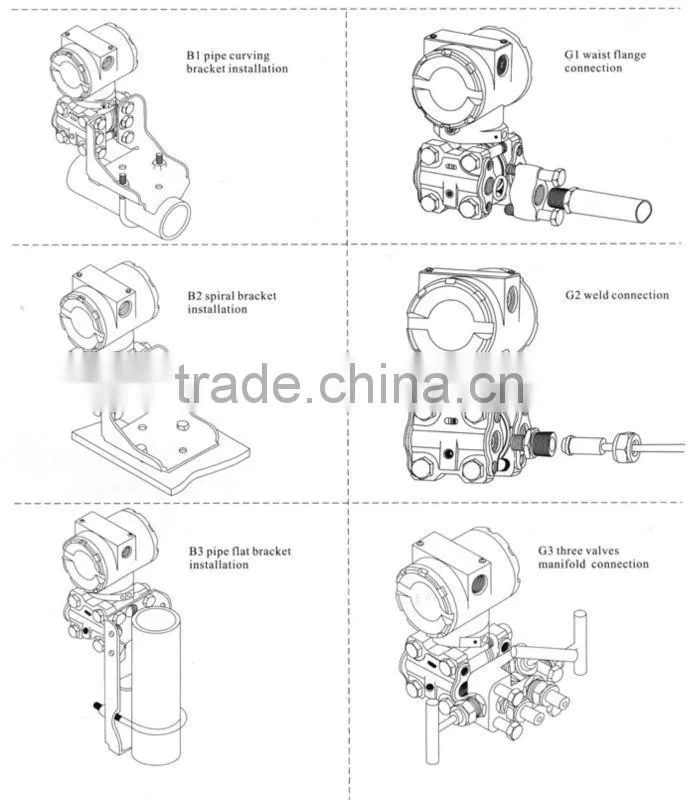

Installation process connector:

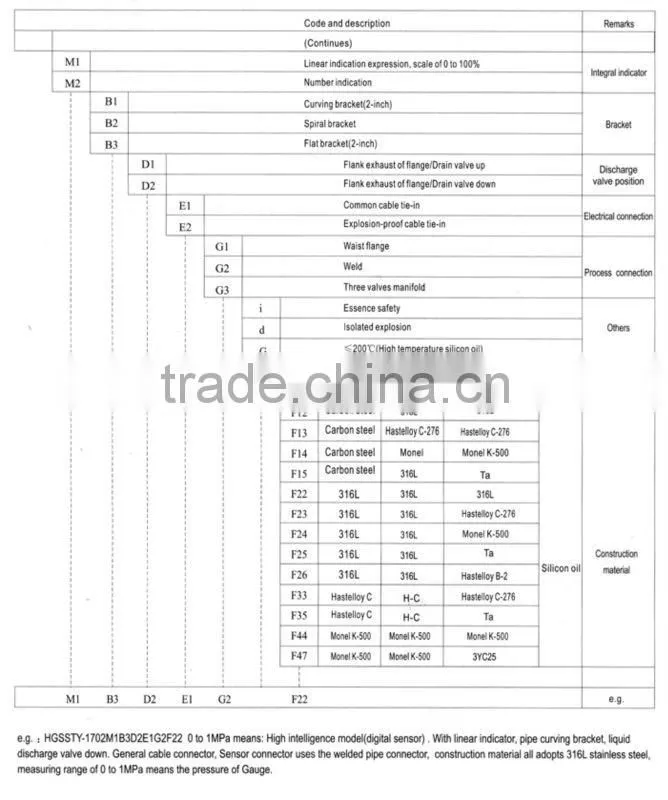

Attachment and material code:

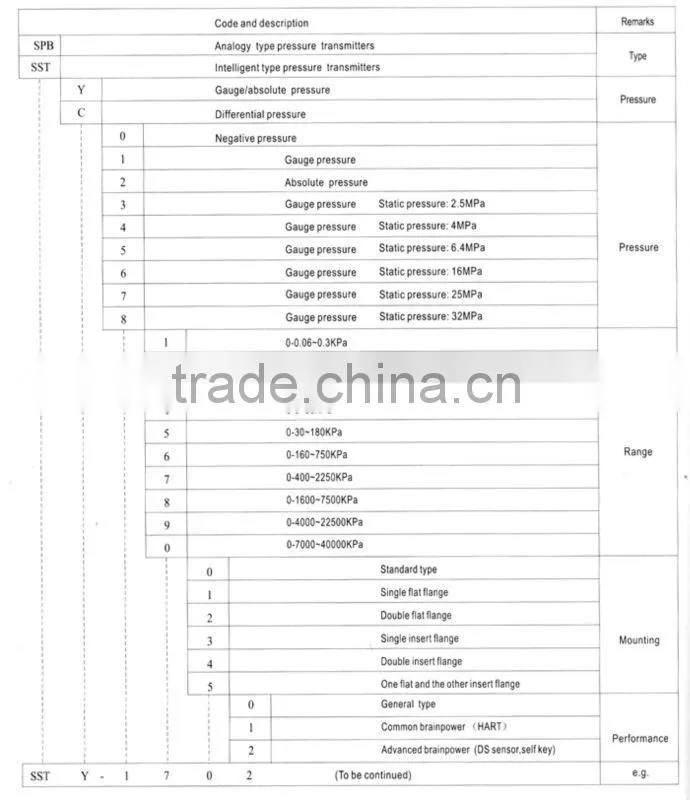

Guide of type:

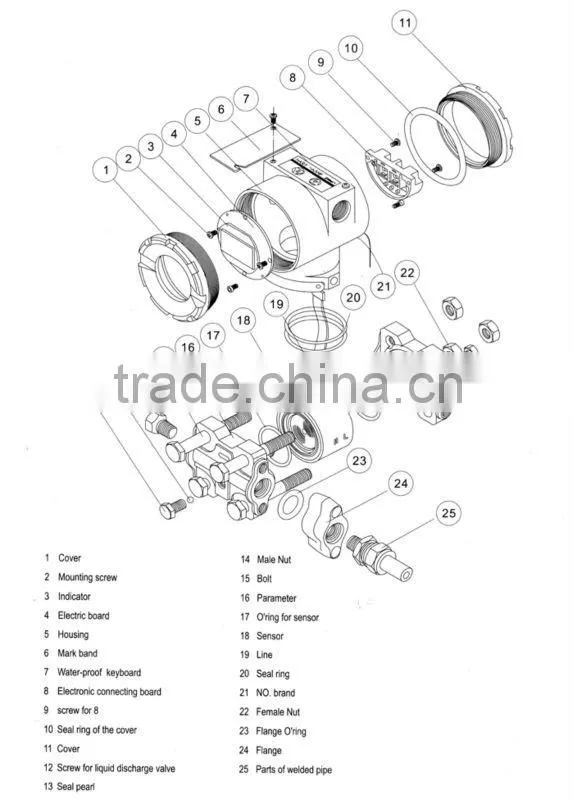

Break down diagram:
