LPB8600 Submersible Hydrostatic Level Transmitter

Specifications

Summary:

LPB8600 series submersible hydro static transmitters consist of breathing cable and stainless steel pipe that measure the height of the liquid by the pressure of the sensor, then change into standard electric signal.

Scope of application

• Sewage treatment, watersupply
• Well, culvert, water tank, pool
• Oil and water pool of industry
• Reservoir ,river way, sea

 Characteristics:

• Convenience and ingenuity
• Wide range: up to 0.5m
• Reverse polarity and limit protection
• Lightning strike protection
• High accuracy, stability and reliability
• Dew-proof, water-proof

Technical parameter

• Accuracy: 0.5%F S(including linearity. Hysteresis and repeatability)
• Measuring Range:0 to 1m,0 to 3m, 0 to 5m,0 to 10m,up to 1500m
• Linearity: superior to 0.5%F S
• Thermal effect: <±0.03%F S/℃
•  1 year stability: superior to 0.5%F S
• Response time: 10ms
• Power supply: 24VDC
• Output: 4-20mA
• Load: (Ω):<(U-12)/0.02A

• Operating Temp:-20 to +85℃
• Compensated Temp:-10 to 70℃
• Storing Temp:-40 to 125℃
• Installation: at the bottom of the liquid

• Wetted parts:304 stainless steel
• Diaphragm material: 316 SS stainless steel
• Breathing cable material: Polythene
• Weigh: stainless steel pipe: G1=300g

                        breathing cable: G2=65g/m
                            junction box: G3=700g

• Gross weigh: G=G1+G2×length(m)+G3
• Power consume: <0.5w (24VDC)

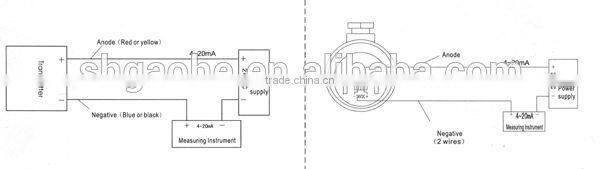

Connected diagram:

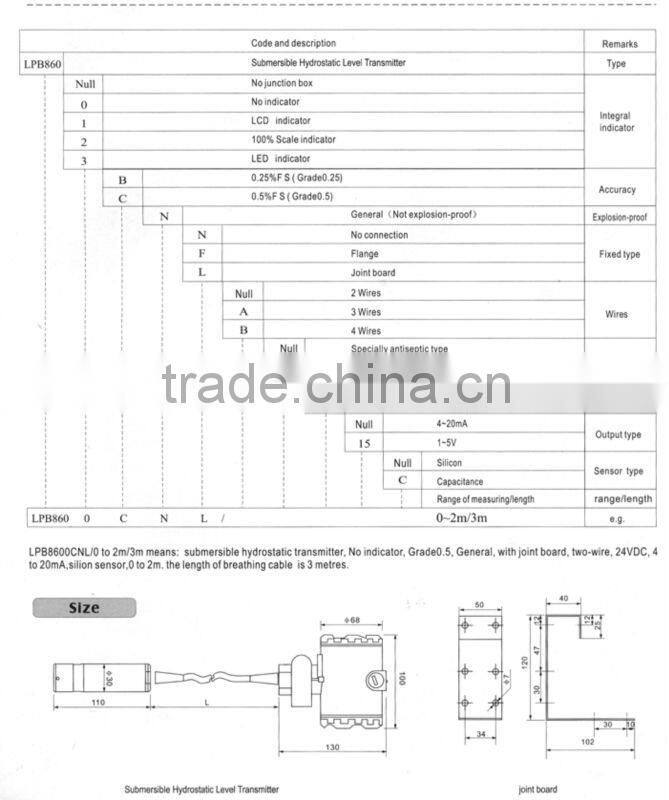

Mode and Suffix Codes
