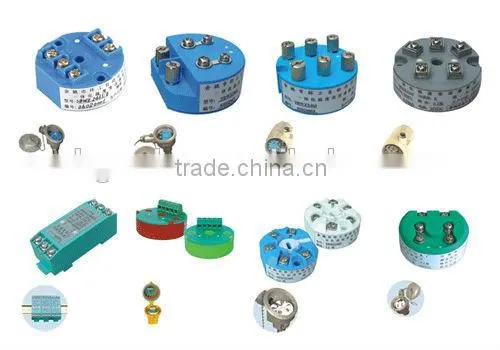

HGWZ/R Series High Performance Temperature Transmitter Module

Specifications

They adopt two-wire way, output the current signal of 4 to 20mA,can be used in the junction box or fixed in the instrument box.



Summary

HGWZ/R series temperature transmitter modules  measure are scene installation temperature transmitter units. They adopt two-wire way, output the current signal of 4 to 20mA,can be used in the junction box or fixed in the instrument box.





Scope of application



• Petroleum, chemical industry, textile industry, metallurgy
• Electric power
• Spaceflight, food processing, medicine
• Other autocontrol and examination



Characteristics

• Advanced non-linear adjustment circuit
• Floating self-adjustment circuit
• Sole anti-interruption circuit
• High accuracy cold end compensation circuit
• Anti-corrosive, high reliability

Technical parameter

• Accuracy: ±0.1%F.S,±0.2%F.S,±0.5%F S(including linearity. Hysteresis and repeatability)
• Thermal effect: Grade 0.1: 0.02%F S/℃

                                   Grade 0.2: 0.03%F S/℃

                                   Grade 0.5: 0.05%F S/℃

• Power  supply:24VDC
• Output: 24VDC,4-20mA
• Error of compensation for cool end: <1°/K,J,E,S
• Stability: <2%/F.S/year
• Load: 0-600Ω
• Power supply: 24VDC
• Operating Temp: -25℃ to +85℃
• Storing Temp:-25 to +125℃
• Response time: ≤10ms
• Explosion-proof: Intrinsically  safe rating Exia ⅡC

• Power consume: <0.5W(24VDC)

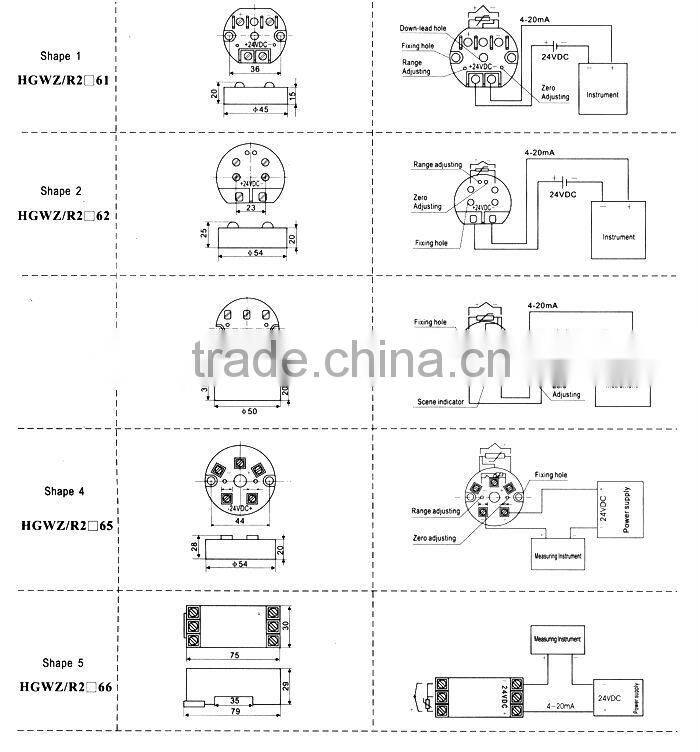

Connected diagram:







Sealed Installation Method on Boller Flue Port             Wiring Diagram

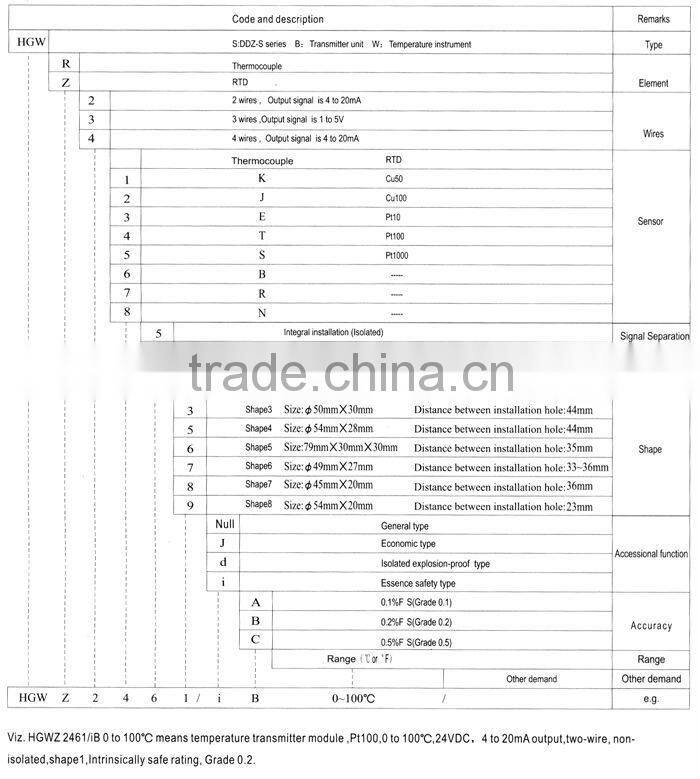

Model and Suffix Codes:
