Specifications
1.Hi-Fi with apt-X
2.Super mini, antenna built in
3.Elaborate RF enhancement design
4.Support dual-mic noise/echo cancelling
Best Price Wireless Bluetooth Module
| Spec Item | Range | |
| General | Dimension (mm) | 17.0 x 9.0 x 3.0 mm (double side mounting) |
| PCB material | FR4 4 layers | |
| Soldering pin type | Double soldering pads for flat cable | |
| Antenna | Antenna built-in | |
| Firmware memory | ROM | |
| Bluetooth | Bluetooth version | Bluetooth specification: V4.1 + EDR |
| Bluetooth chipset | BlueCore® CSR8645™ | |
| Profiles supported | A2DP/AVRCP/HFP/HSP | |
| Connectivity | Multi-link - A2DP/HFP | 2 x host devices (A2DP/HFP) or 2 x headsets |
| App connection | Support for Smart App Connectivity | |
| NFC | External NFC module available (Optional) | |
| RF/Wireless | Frequency range | 2.402GHz to 2.483GHz |
| Transmission power | Class 2 , -4 ~ +6 dBm | |
| Sensitivity | -90dBm (typical) | |
| Wireless Range | >10m ( free space) | |
| Audio | Microphone inputs | 2 x analog mic (stereo or dual-mono) |
| Line-in | Support for stereo line-in | |
| Output for speaker | Stereo differential output (upto 50mW) | |
| ADC sampling | 8 KHz ~ 48 KHz, 16-bit high-quality | |
| DAC sampling | 8 KHz ~ 96 KHz, 16-bit high-quality | |
| Codec | Hi-Fi quality stereo codec | |
| Decoder support | aptX, SBC, MP3 and AAC | |
| Music Enhancements | Configurable EQ, S3D, Volume Boost | |
| Noise/Echo reduction | CVC6.0 noise and echo reduction | |
| HSP voice | HD voice, bi-directional noise reduction | |
| Electrical | Supply Voltage - Charger | 4.75~5.75V (Recommended) |
| Supply Voltage - Battery | 4.30V (Max) | |
| Supply Voltage | 3.0V~3.7V (Recommended) | |
| Power comsumption - StandBy | ~250uA (typical) @ACL link, Sniff 500ms, LED off | |
| Power comsumption - SCO | ~12 mA (typical) @SCO link, HV3 packet | |
| Power comsumption - A2DP | ~14 mA (typical) @SBC, 48KHz sampling | |
Key Features
1. Bluetooth stereo module for high-end Bluetooth items
2. Super Mini Size with PCB antenna built in
3. Support for Hi-Fi sound quality
4. Apt-X decoder built in
5. RF transmission power level control configurable
6. Multi-band EQ tunable, S3D and Volume Boost
7. Support for voice prompt
8. Support for USB charging enumeration and Charge management
9. Verified production line capability and quality system
Outstanding features
1. Multi-languages voice prompt (optional)
2. Dual-mic technology as an option for better noise cancellation
3. Multi-link with source devices or 2 headsets
4. Amazing Individuality - Bluetooth kit of 1 transmitter adapter & 2 receivers/headsets
5. Complete verification test on functional, RF, audio and Bluetooth
6. Complete environmental & reliability test
Wireless Bluetooth Module
Factory View
Certification
QA Lab Test
R&D Lad Test
About product

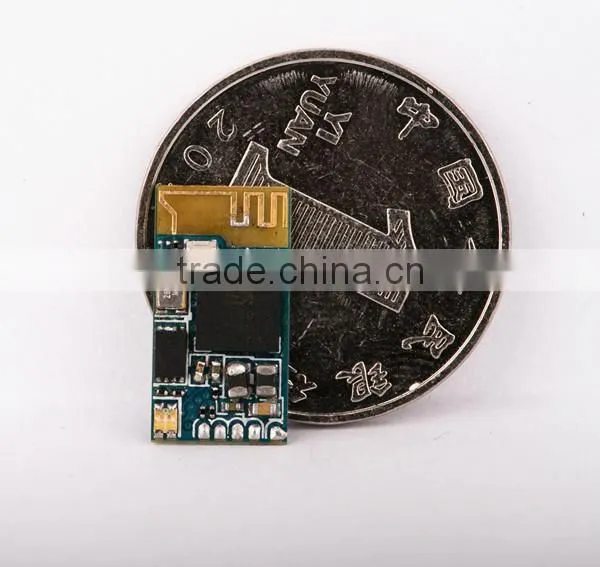

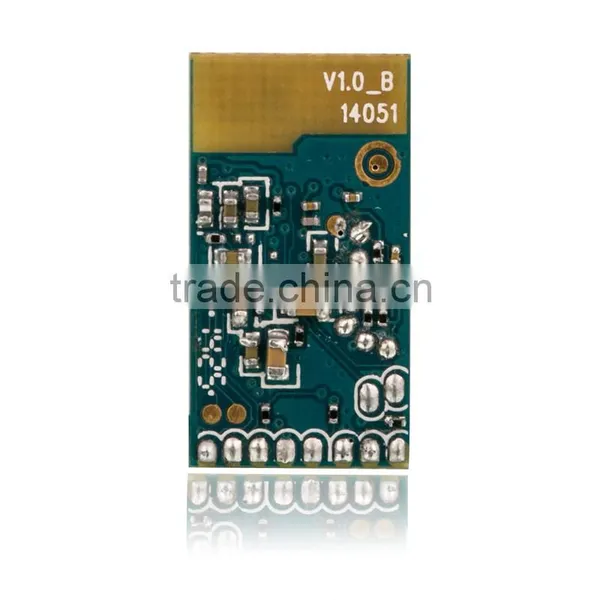

This is a ultra small size Bluetooth module with PCB antenna built in, focusing on in-ear stereo headset applications. The module is elaborately designed in EMI and audio configuration based on CSR8645 with CVC noise & echo cancellation and apt-X technologies, support for multi-link, smart apps connectivity, dual-mic, voice prompt features. It has excellent RF performance by fine-tuned RF match and antenna directionality.
About company
We are an one-stop supplier with professional service in wireless audio products, both in R&D and production quality based on our management system and industrial expertise.
More Information , Please Fell free to contact us .
Tel:+86 137 9854 4887
Skype:(live) cherry_1763
WhatsApp:+ 86 13798544887
