Hot selling liquid filling machine with great price
- 10 Set / Sets per Month
- SHANGHAI PORT
- T/T Credit Card
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage, Chemical, Medical | Packaging Type: | Bottles |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V/220V | Power: | 3.2KW | Place of Origin: | Jiangsu, China |
Brand Name: | LINKS | Model Number: | XGF14-12-5 | Dimension(L*W*H): | 2500*2050*2200MM |
Weight: | 2800KGS | Certification: | CE, ISO, SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot selling liquid filling machine with great price
XGF14-12-5 three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to water filling processing demands
Main features
1.This machine has a compact structure, completed control system, easy to operate and highly automated.
2.By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.
3.The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.
4.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
5.The machine adopts high effective cap sorting system and completely self control and protective device.
6.The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.
7.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
8.The electric components and pneumatic components are all introduced from world famous brand products.
Model | XGF14-12-5 |
Amount of working position | Rinsing 14, filling 12, capping 5 |
Production capacity | 5000BPH(500ml) |
Pressure of air source | 0.5Mpa |
Air consumption | 0.6m3/min |
Rinsing water pressure | 0.2-0.25Mpa |
Rinsing water capacity | 0.8T/H |
Main motor power | 2.0kW |
Total power | 3.0kw |
Dimension | 2500X2050X2200mm (L×W×H) |
weight | 2800kg |
We also provide the Complete Automatic Pure Water Bottling Plant
It Includes 4 main parts:
1/ Plastic bottle blow molding machine
2/ Water cleaning system
3/ Water washing, filling, capping machine.
4/ Conveyor system, labeling machine, dating machine, film wrapping machine
The complete line main description:
1/ The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.
2/ The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.
3/ We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.
4/ The material is stainless steel 304, food grade much clean and safe.
5/ We provide the engineers for customer installation, training in customer's factory.
Models and Speed List
Model | XGF8-8-3 | XGF14/12/5 | XGF16/16/5 | XGF24/24/8 | XGF32/32/10 |
Washing hands | 8 | 14 | 18 | 24 | 32 |
Filling valves | 8 | 12 | 18 | 24 | 32 |
Capping hands | 3 | 4 | 6 | 8 | 8 |
Suitable PET/Glass Bottles(150ml to 2000ml) | |||||
Capacity(Speed) Base on 500ml | 2000BPH | 5000BPH | 7000BPH | 12000BPH | 15000BPH |
Electric Components Brands Supplier
Main composition | Description Supplier |
PLC | Mitsubishi (Japan) , Siemens (Germany) |
Touch screen | Weinview(Taiwan) |
Frequency converter | Mitsubishi (Japan) , Siemens (Germany) |
Air switch | Schneider (France) |
Breaker | Siemens (Germany) |
Contactor | Siemens (Germany) |
Photoelectric switch | Omron (Japan) |

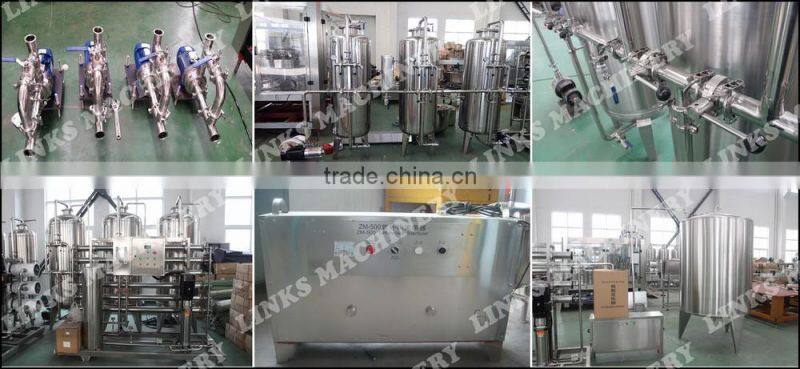

Water Treatment System
Water 3 in 1 Rinsing, Filling, Capping Monoblock Machine
Labeling Machine&Packing Machine
Spare Parts On Machines
1. We provide the complete machines' layout, design according to customer's factory.
2. We provide the complete English manual book for customer, all the machines' touch screen operation is English words, we have Russia, Spanish, Portuguese, French..ect to choose.
3. After delivery, we will send our engineer to customers' factory to install the machines and also train workers how to operate and maintenance. Engineer's salary: 80USD/Per day.
4. Our warranty time is 18 months after the machines installation.
5. We provide the 12 months easy broken spare parts as free, and also provide the spare parts book to customer.
6. Payment method: 30% T/T as deposit after signature the contract, 70% T/T or L/C after inspection before delivery.
7 Common delivery time: 45-70days after confirm the bottle and cap design.
