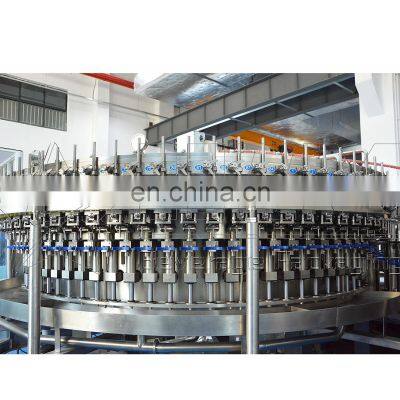

PET Bottle Hot Filling and Aseptic Cold Filling Peanut and Soymilk Plant Based Milk Uht Milk photo-2

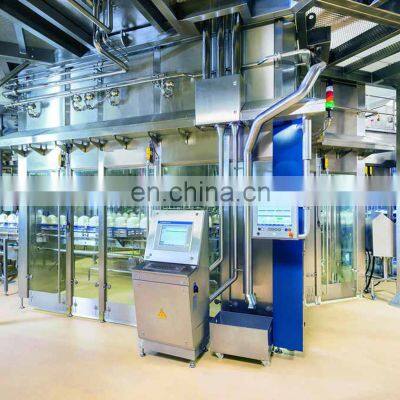

PET Bottle Hot Filling and Aseptic Cold Filling Peanut and Soymilk Plant Based Milk Uht Milk photo-3
PET Bottle Hot Filling and Aseptic Cold Filling Peanut and Soymilk Plant Based Milk Uht Milk photo-4
PET Bottle Hot Filling and Aseptic Cold Filling Peanut and Soymilk Plant Based Milk Uht Milk photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Work Flow

PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk

System Overview
1. Plant based milk PET bottle aseptic filling line

PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk

1. Water treatment 5. Product treatment and homogenization
2. Mixing of meal and water 6. Flexible heating options
3. Hydrolysis 7. Aseptic filling
4. Separation of solids and liquids, blending of additives


 Typtical layout drawing and componets 1



PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk

1. Combi blower/filler/capper 6. Sleeve labeler
2. Cap feeder / washer 7. Date coder
3. Cap sterilizer 8. Carton packer
4. Bottle cooler 9. Palletizer
5. Dryer 10. Stretch wrappe

Typtical layout drawing and componets 2

PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk

1. Combi blower/filler/capper 5. Labeler
2. Cap feeder/washer 6. Date coder
3. FBI 7. Shrink packer
4. Dryer 8. Palletizer
  9. Stretch wrapper

 Typical layout drawing and componets 3

PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk

1. Combi blower/filler/capper 6. Dryer
2. Cap feeder /washer 7. Labeler
3. FBI 8. Date coder
4. Mixer 9. Shrink packer
5. Bottle warmer 10. Palletizer
  11. Stretch wrapper





Components overview

 PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk


Specification

 PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk

Product model 3S10A 6518A
 Copacity 15000bph 27600bph
Module parts sterilize: 1:80, flushing: 55, filling: 35: caping: 10 sterilize 1:80, sterilize 2:80; flushing:70; filling:65;caping:18
Size 11650x9250x4500mm 14460x11750x4500mm
Quality 17200kg 30700kg
Bottle type 28, 38: 28,38 bottle type interchange: Diameter60-110mm; Helght 150~320mm, Volume: 330~2000ml
Beverage type Fruit particle Juice, Tea, Soda water, mik, beverage etc
Sterilization 6D
Inside the bottle sterilization liquid residue <0.5mg/L
Aseptic period 72Hours(Depending on the product)no smart clening the middle
Structure Overview
Model 3S10A:PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milkModel 6518A:PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk



Advantages



 Modular assembly: including aseptci water flushing, filling, rotate capper
 PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk  PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk
 Hygiene:
Aseptic capper is always in a hygienic design and meets even the most difficult hygiene requirements.
− All drives are outside the isolator.
− A liquid seal system seals all of the capper carrousel's rotational movements.
− The movements of the capping head are sealed with bellows.
− Depending on the type of cap, a chuck-cone capper or a gripping-head capper are used.
 PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk  PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk

New generate center liquid material dispenser
1.The new-generation central liquid inlet distributor isolates the material pipeline and the CIP return pipeline through three rotating seals. Unless all three seals fail, the material will not communicate with the CIP return pipeline, which greatly increases the reliability of the distributor.
2.The sealing form of the new-generation central liquid inlet dispenser has been changed to a specially customized rotary seal. The material is polytetrafluoroethylene with carbon fiber, which is acid and alkali resistant, high temperature resistant and wear-resistant.The mating parts of the central shaft and the rotating seal are all made of ceramic-plated surface technology to reduce the surface roughness and extend the service life of the rotating seal.
3.The new-generation central liquid inlet distributor has improved the steam barrier system. The new steam barrier pipeline runs through the entire central liquid inlet from top to bottom, heating and sterilizing the entire central liquid inlet to ensure the continuity of the equipment's sterility.
4.The lubrication system of the bearings of the new-generation central inlet distributor has been changed to high-temperature water lubrication without oil lubrication.Reduces the probability of the material being contaminated.
 PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk  PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk
 Most import sterilization
FFU heating and sterilization:
The air supply part of the FFU is equipped with an air heat exchanger, with steam to heat and sterilize the clean air in the filling chamber. It can not only effectively reduce the heating time of the host during sterilization, but also effectively sterilize the high-efficiency filter (dry filter) and extend the service life of the filter.
with four layers of filters:
The new FFU unit adopts one layer of primary-effect filter, one layer of medium-effect filter, and two layers of high-efficiency filter.
 PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk  PET bottle hot filling and aseptic cold filling Peanut and Soymilk plant based milk uht milk
