tablets granular calcium hypochlorite production line

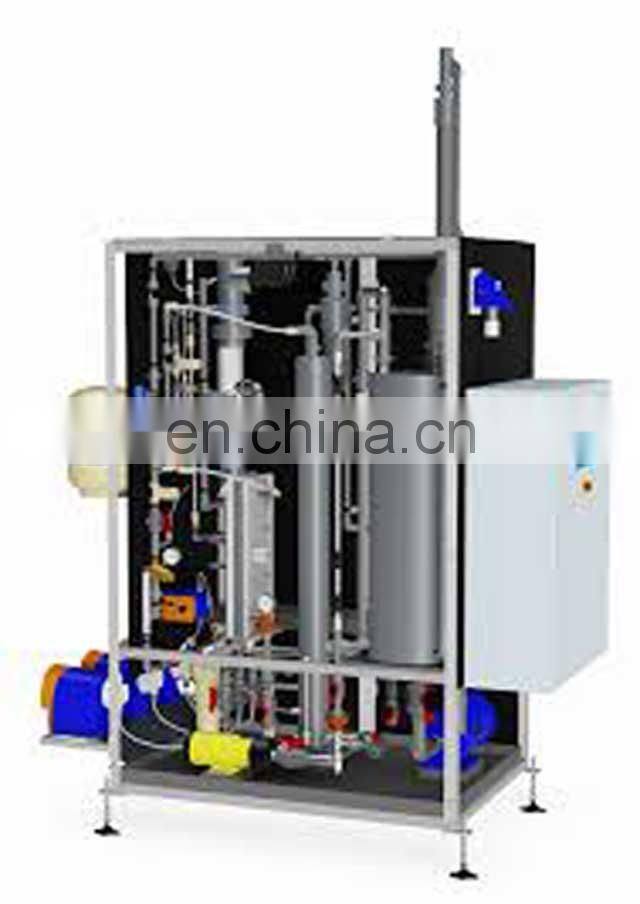

High concentration sodium hypochlorite generator uses membrane to electrolysis 25%-30% brine to produce chlorine gas which is sent into the reaction tower for mix reaction with sodium hydroxide, then got the final product of l2% sodium hypochlorite solution;The system consists of: salt treatment unit, ultra-pure water system, control cabinet, electrolytic unit, reaction tower, sodium hydroxide recycled unit etc.

ON-SITE CHLORINATION WITH AUTO DOSING SYSTEM

1.Salt will be dissolved in the tank and become saturated brine (25%);

2.Diluted into 3% after filtered ( If use sea water as raw material, it will be treated before electrolysis);

3.Electrolysis in the host machine;

4.The final product- Sodium hypochlorite liquid (5000ppm) in the storage tank;

5.Controled by the PLC smart center, send into the pipeline by dosing pump;

6.Mixed with water in pipeline mixer;

7.The residual chlorine meter adjust the dosing according to the preset data;

electrolysis salt water of sodium hypochlorite generator

water electrolysis machine

Large scale water purification system brine electrolysis sodium hypochlorite generator
