Spout pouch filling capping machine
1)Automatic spout pouch filling and capping machine is suitable for liquid or semi-liquid,such as packing jelly, soy milk, yoghourt, mineral water, juice, ice cream, edible oil, seasoning, scour, laundry detergent etc;
2)This is a full automatic production line with such processes as automatic pouch-loading, vacuuming, fixed-position filling, nitrogen flushing, clean spout, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability), discharging;
3)This machine can be connected CIP cleaning syetem, PLC control and touch screen system, air-purifying system, safeguard switch, glass cover. All of these functions can be added or removed according to the clients' requirements.
Description

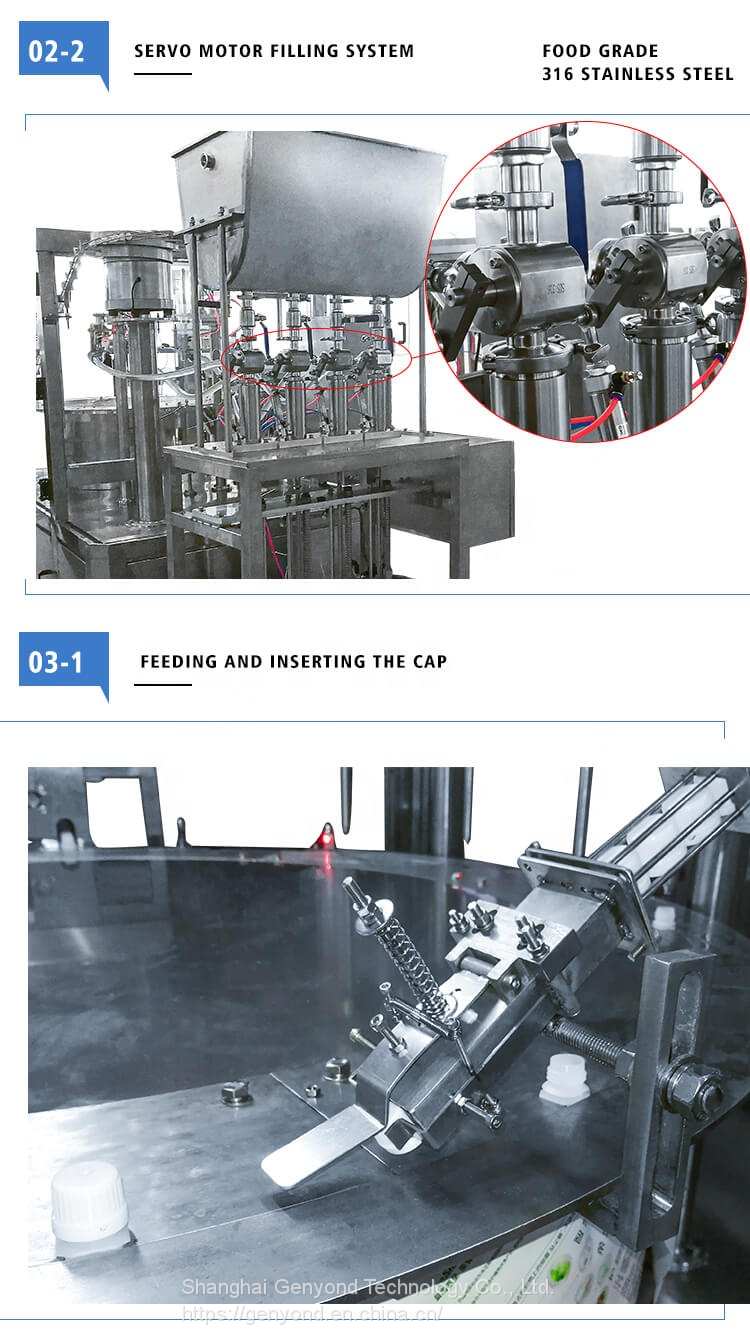

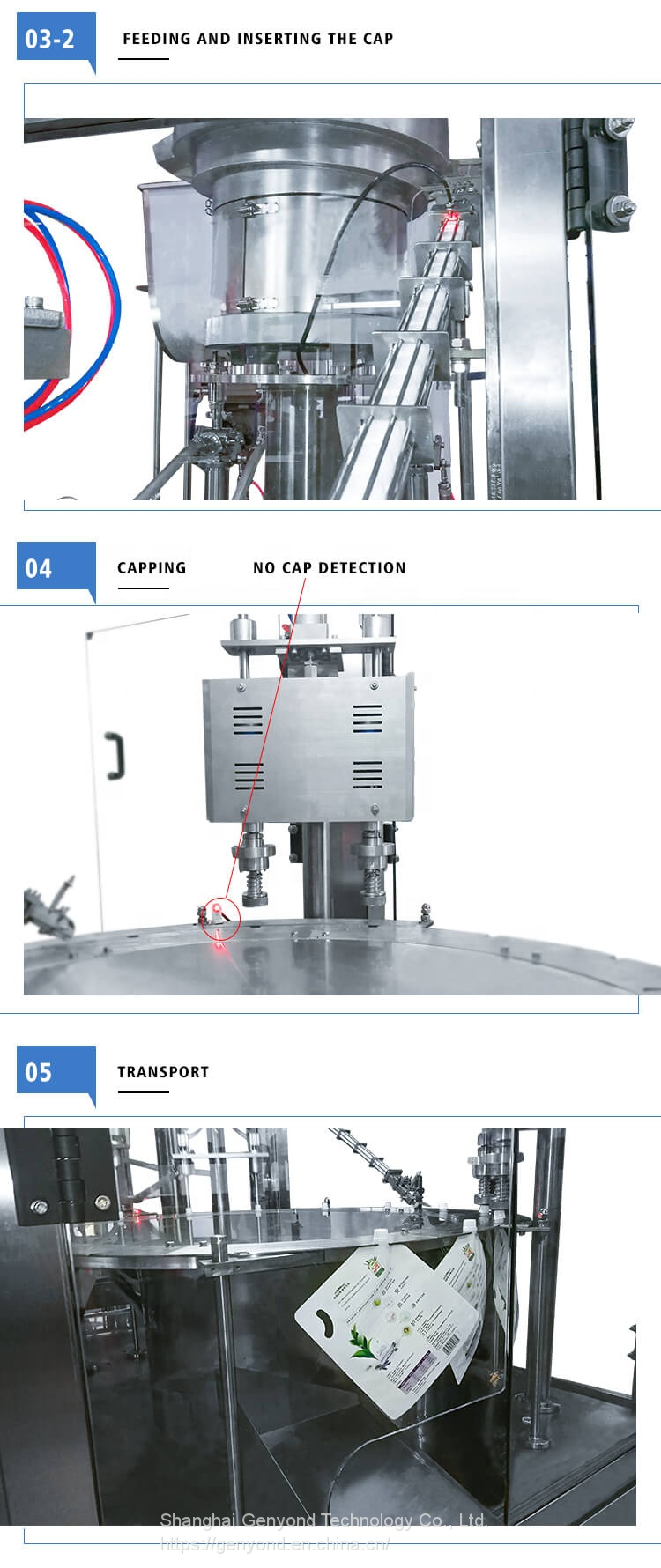

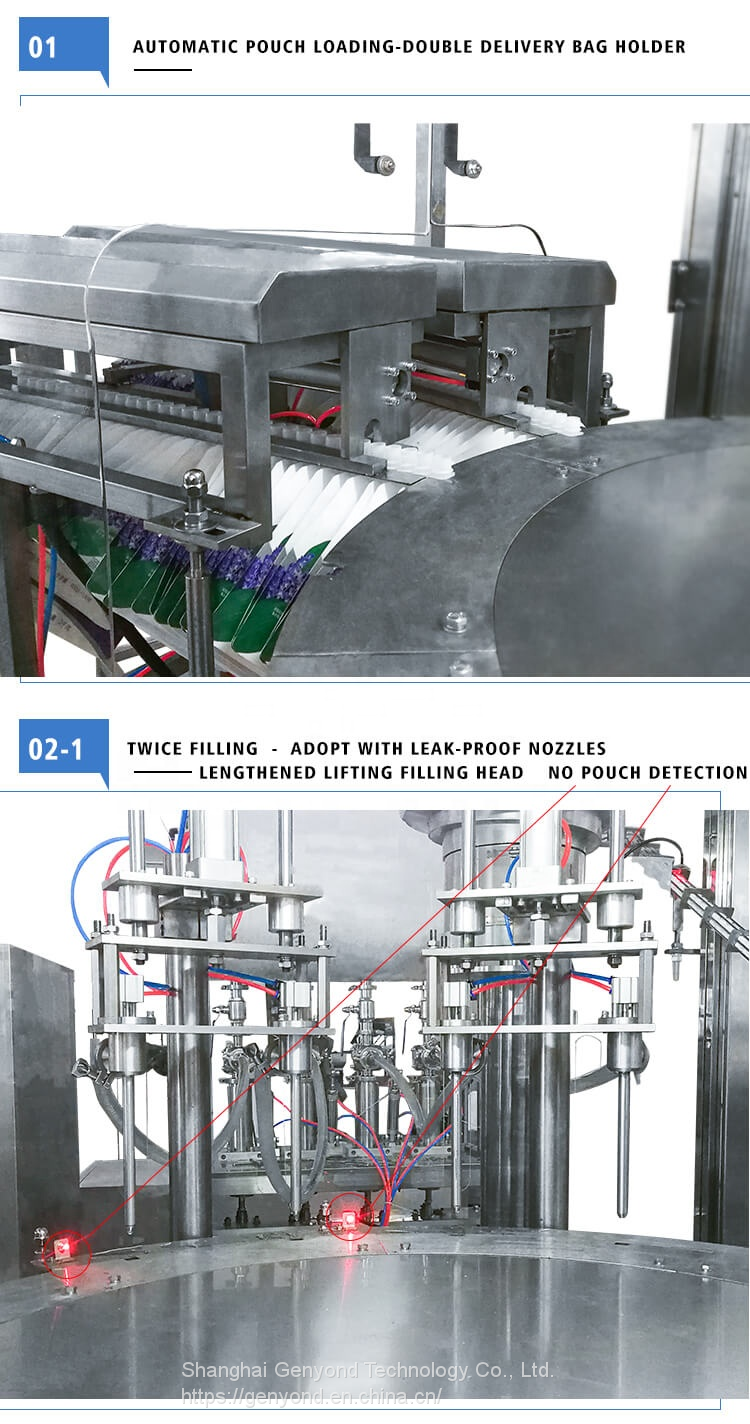

- It is a full Automatic production processes, including pouch loading → dosing filling
→ spout cleaning →cap-vibrating→ cap-inserting → control cap-screwing
→ pouch discharge .
- The machine is integrated with pneumatic, mechanical drive and PLC control.
- Accurate dosing filling, volume tolerance is +-1.5%.
- The filling head will stop filling if no pouches available.
- The capping torque is adjustable.
- The touch screen can be set with two language version.
Specification:
|
Model |
Volume |
Production Capacity (bags/h) |
Dimension of Machine(mm) |
Filling Head |
Filled Contect |
GY-2 |
100-300ML |
1800-2400 |
2180*2240*3230 |
2 |
Liquid product (Juice, Puree, Water etc.) |
GY-3 |
2800-3600 |
2400*2500*3800 |
3 |
||
GY-4 |
4000-4800 |
2400*2500*3800 |
4 |
||
GY-5 |
5000-6000 |
2330*2520*3760 |
5 |
||
GY-6 |
6000-7200 |
2330*2520*3760 |
6 |
||
GY-8 |
7000-8000 |
2330*3610*3300 |
8 |
||
GY-10 |
9000-12000 |
2330*3610*3300 |
10 |
||
|
Model |
Volume |
Production Capacity (bags/h) |
Dimension of Machine(mm) |
Filling Head |
Filled Contect |
GY-1D |
500-2000ML |
500-1200 |
2155*2476*2240 |
1 |
Liquid product (Detergent etc.) |
GY-2D |
1000-2000 |
2155*2476*2240 |
2 |
||
GY-3D |
1500-2500 |
2400*2500*3800 |
3 |
||
GY-4D |
2000-3000 |
2330*2520*3760 |
4 |
