Cheap 2.4G 1T1R External Antenna Wifi Wireless Module Realtek 8189ES Sdio Wifi Modem for Sale

FOB Price

US$ 2.2 - 3.1 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Compare
Model Number	CP812

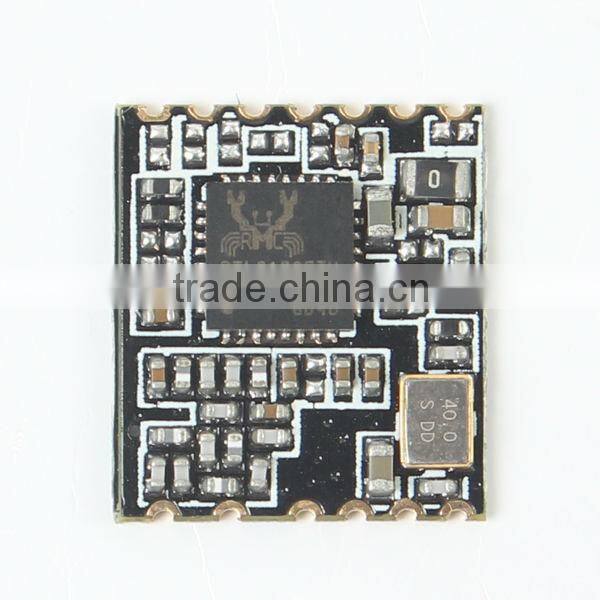

cheap 2.4G 1T1R external antenna wifi wireless module Realtek 8189ES sdio wifi modem for sale

Feature

Specification

Model	CP812
Standards	IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK
Port	SDIO
Frequency Range	2.4~2.4835GHz
Channel	1-14(optional USA Norm, EN, Japanese Norm)
Modulation Type	802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
Transmission Rate	802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps
Receive Sensitivity	130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER
Transmission Distance	Indoor up to 30m,outdoor up to 80m(Base on the environment)
RF Rate	16dBm(Maximum)
Antenna Gain	Need external antenna
Spread-Spectrum Technique	DSSS(direct sequence spread spectrum)
Working Voltage	DC 3.3V ±0.2V
Dimension	14.2mm12.5mm2mm
Working Environment	Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing
Supported OS	Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS
Chip	Realtek RTL8189ES

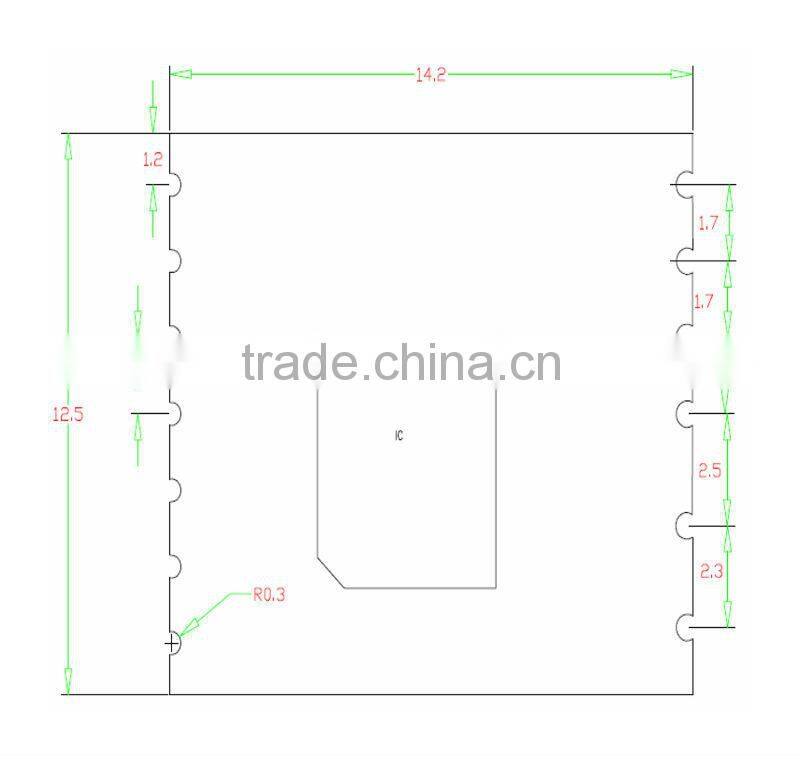

Dimension

Wireless Wifi Module Specification

Our Services

OEM/ODM
customization software
adjustabe hardware according to your mold

Certifications
