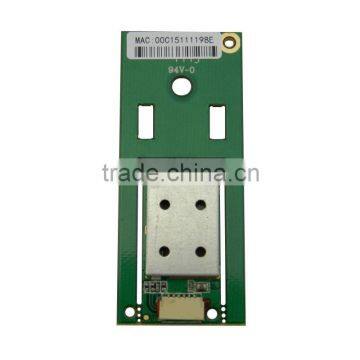

2.4GHz 1t1r Antenna Wifi RT3070 Usb Wireless Module Compare Factory Supply

Name: 2.4GHz 1t1r Antenna Wifi RT3070 Usb Wireless Module Compare Factory Supply
Brand: Compare
SKU: 105305159
Availability: InStock

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Compare

Model Number:

CP315

Shenzhen Compare Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Compare

Model Number CP315

Product Overviews

Wifi module Specification

Product Description

Key Features

Specification

Model	CP315B-1.2
Standards	IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK
Port	USB 1.1/USB2.0
Frequency Range	2.4~2.4835GHz
Channel	1-14(optional USA Norm, EN, Japanese Norm)
Modulation Type	802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
Transmission Rate	802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps
Receive Sensitivity	130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER
Transmission Distance	Indoor up to 30m,outdoor up to 80m(Base on the environment)
RF Rate	16dBm(Maximum)
Antenna Gain	Need external antenna
Spread-Spectrum Technique	DSSS(direct sequence spread spectrum)
Working Voltage	DC 5V
Dimension	25mm60mm2.5mm
Working Environment	Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing
Supported OS	Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS
Chip	MTK RT3070
