Wifi Module Specification

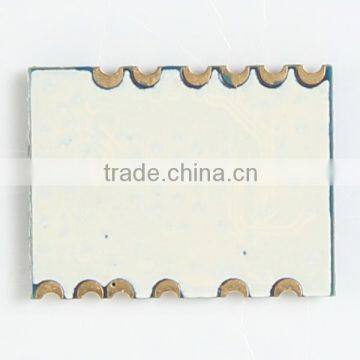

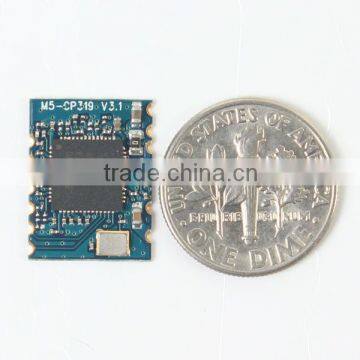

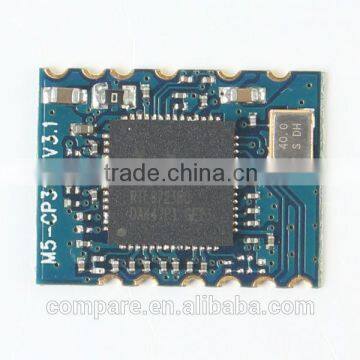

low cost wireless module Realtek RTL8723BU 2 in 1 wifi bluetooth module usb 2.0 wifi modem
Feature
| Model | CP319V3.1 |
| Chip | Realtek RTL8723BU |
| Port | USB2.0 |
| WIFI Antenna Gain | Need external antenna |
| Working Voltage | DC 3.3V ±0.2V |
| Dimension | 16mm*12.4mm*2mm |
| Bluetooth transmission protocol | Bluetooth V2.1+EDR /Bluetooth3.0/Bluetooth 4.0 |
| Bluetooth antenna gain | Need external antenna(can share with WiFi antenna) |
Specification of Wifi
Model |
CP319v3.1 |
Standards |
IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK |
Port |
USB 1.1/USB2.0 |
Frequency Range |
2.4~2.4835GHz |
Channel |
1-14 |
Modulation Type |
802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) |
Transmission Rate |
802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps |
Receive Sensitivity |
130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER |
Transmission Distance |
Indoor up to 30m, outdoor up to 80m(Base on the environment) |
RF Rate |
16dBm(Maximum) |
Antenna Gain |
Need external antenna |
Spread-Spectrum Technique |
DSSS(direct sequence spread spectrum) |
Working Voltage |
DC 3.3V ±0.2V |
Dimension |
16mm*12.4mm*2mm |
Working Environment |
Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS |
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip |
Realtek RTL8723BU |
Specification of Bluetooth:
Model |
CP319V3.1 |
interface type |
USB 1.1/USB2.0(2G/3G calling need connect PCM port) |
Bluetooth transmission protocol |
BLE/Bluetooth V2.1+EDR /Bluetooth3.0/3.0+HS |
frequency range |
2.402GHz - 2.480GHz |
working channel |
0-78 |
Modulation Type |
GFSK,DPSK |
transmission distance |
Indoor up to 10m,outdoor up to 20m(Base on the environment) |
RF Rate |
9dBm(Maximum) |
antenna gain |
Need external antenna(can share with WiFi antenna) |
spread-spectrum technique |
frequency hopping |
working voltage |
DC 3.3V ±0.2V |
Working environment |
Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS |
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip |
Realtek RTL8723BU |
Dimension
OEM/ODM
customization software
adjustabe hardware according to your mold
