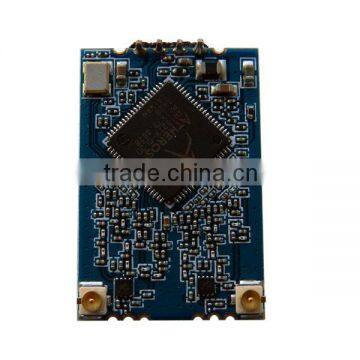

2T2R 802.11a/b/g/n wireless module Qualcomm AR1021 adapter usb wifi module
- 3000000 Piece / Pieces per Month
- Shenzhen
You May Like
-
low cost 1T1R rt8188 chipset wifi usb driver wifi adapter wireless module
-
2 in 1 wifi bluetooth usb adapter Realtek RTL8723BU bluetooth usb wifi module
-
low energy bluetooth module uart Realtek RTL8723BS wifi module sdio hot selling
-
high quality baby monitor camera MTK RT3070 usb wifi wireless module DC 5V power supply
-
150Mbps 802.11n wifi baby monitor Realtek 8189ES wifi sdio wireless module
-
surveillance camera 2.4GHz wireless Realtek 8723BS uart bluetooth module with wifi sdio
Product Details
| Place of Origin | Guangdong, China | Brand Name | Compare | |
| Model Number | CP506 |
Product Description
WIFI Module Specification
802.11a Spec
Key Features
| Model | CP506 |
| Chip | Qualcomm AR1021 |
| Port | USB1.1,USB2.0 |
| Antenna Gain | Need external antenna |
| Working Voltage | DC 3.3V ±0.2V |
| Dimension | 27mm*18mm*2.5mm |
Specification
Model | CP506 |
Standards | IEEE 802.11a/b/g/n,CSMA/CA with ACK |
Port | USB1.1, USB2.0 |
Frequency Range | 2.4~2.4835GHz,5.15-5.35GHZ, 5.745-5.825GHz |
Channel | 1-14(optional USA Norm, EN, Japanese Norm) |
Modulation Type | 802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) |
Transmission Rate | 802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps |
Receive Sensitivity | 130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER |
Transmission Distance | Indoor up to 30m,outdoor up to 80m(Base on the environment) |
RF Rate | 16dBm(Maximum) |
Antenna Gain | Need external antenna |
Spread-Spectrum Technique | DSSS(direct sequence spread spectrum) |
Working Voltage | DC 3.3V ±0.2V |
Dimension | 27mm*18mm*2.5mm |
Working Environment | Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS | Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip | Qualcomm AR1021 |
Dimension
OEM/ODM
customization software
adjustabe hardware according to your mold
warranty 1 year
