Low Energy Wireless Receiver RTL8189ES Sdio Wifi Module
- Shenzhen
- Credit Card
You May Like
-
2.4G 1T1R Antenna Wifi RTL8723BS Uart Sdio Wifi Bluetooth Module
-
2.4GHz & 5.8GHz Wireless Module Usb Dual Band AR1021atheros Wifi Module
-
150M 1T1R Wireless Bluetooth Module Realtek Rtl8723bu Usb Wifi Modem
-
2.4Ghz 150M Network Wifi Adapter RTL8189ES Sdio Wireless Module
-
150M 2.4G 1T1R Wireless RTL8188ETV Usb Wifi Transmitter Wifi Module
-
150Mpbs 2.4G Smart Home Wifi + Bluetooth Module Sdio/uart Chipset Realtek RTL8723BS
Product Details
Place of Origin | Guangdong, China | Brand Name | Compare | |
Model Number | CP812 |
Product Description

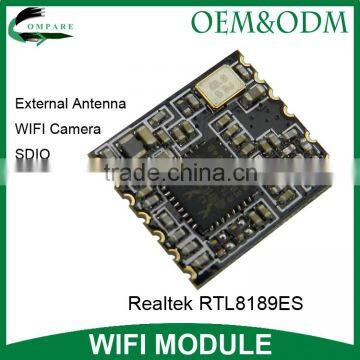

2.4Ghz 150M network wifi adapter RTL8189ES sdio wireless module
Feature
Model | CP812 |
Chip | Realtek RTL8189ES |
Port | SDIO |
Antenna Gain | Need external antenna |
Working Voltage | DC 3.3V ±0.2V |
Dimension | 14.2mm*12.5mm*2mm |
Specification
Model | CP812 |
Standards | IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK |
Port | SDIO |
Frequency Range | 2.4~2.4835GHz |
Channel | 1-14(optional USA Norm, EN, Japanese Norm) |
Modulation Type | 802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) |
Transmission Rate | 802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps |
Receive Sensitivity | 130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER |
Transmission Distance | Indoor up to 30m,outdoor up to 80m(Base on the environment) |
RF Rate | 16dBm(Maximum) |
Antenna Gain | Need external antenna |
Spread-Spectrum Technique | DSSS(direct sequence spread spectrum) |
Working Voltage | DC 3.3V ±0.2V |
Dimension | 14.2mm*12.5mm*2mm |
Working Environment | Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS | Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip | Realtek RTL8189ES |
Dimension
Wifi module spec
OEM/ODM
customization software
adjustabe hardware according to your mold
