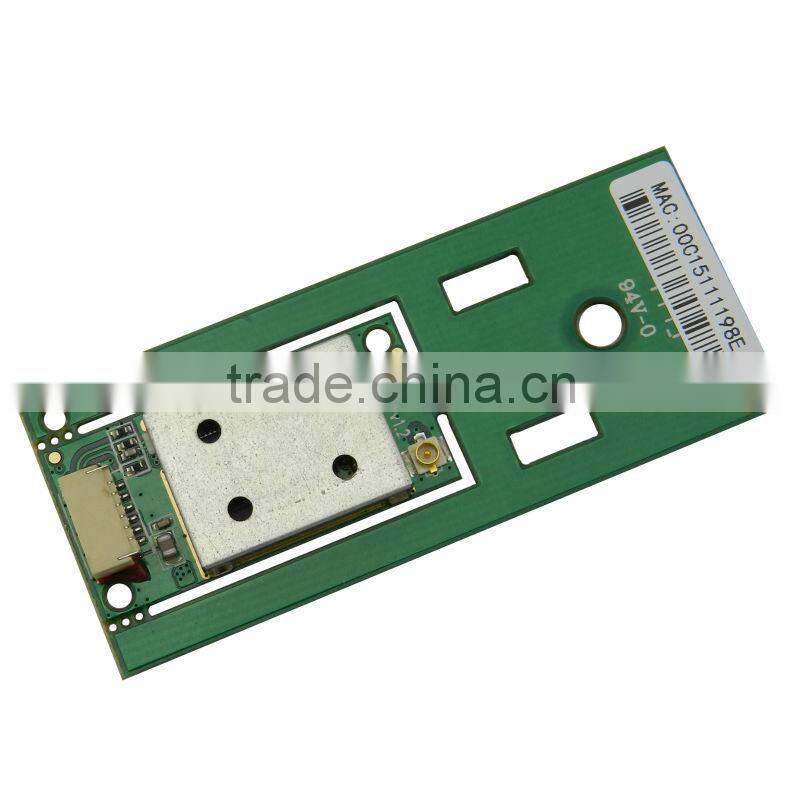

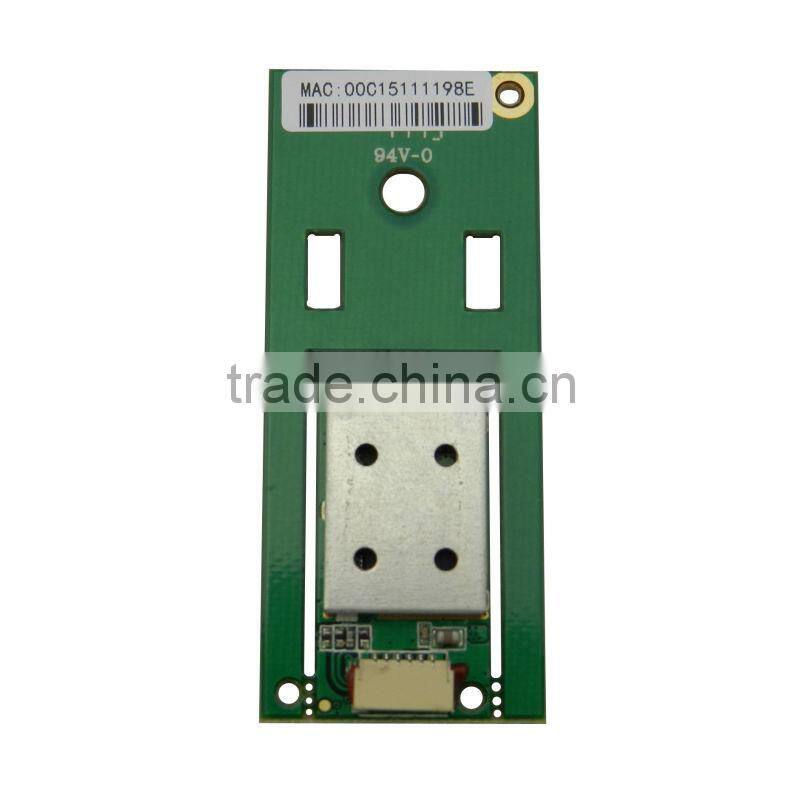

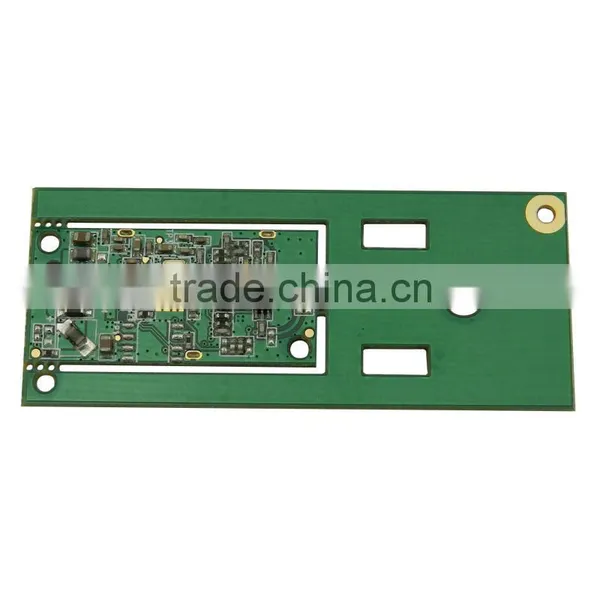

Help CenterWifi Smart Home IP TV Box Wireless Module RT3070 Usb 2.0 Wifi Modem With High Proformance
Related Products
-
150Mpbs 2.4GHz Antenna Wifi Realtek RTL8723BS Uart Bluetooth + Sdio Wifi 2 in 1 Wireless ModuleNegotiableMOQ: 1000 Pieces -
2.4GHz 150Mpbs Low Energy Realtek RTL8723BU Usb Wifi + Bluetooth Module 2 in 1 Wireless ModuleUS$ 3.20 - 3.20MOQ: 3000 Pieces
-
802.11a 2t2r Wifi Modem Qualcomm AR1021 Atheros Usb Wifi Transmitter Wireless ModuleNegotiableMOQ: 1000 Pieces
-
Mini Bluetooth Camera Wifi Modem Realtek RTL8723BU Usb 2.0 Wifi + Bluetooth Wireless ModuleNegotiableMOQ: 1
-
Low Cost Usb Wifi Modem Realtek RTL8188ETV Transmitter Wireless Module for Set Top BoxUS$ 2.30 - 2.30MOQ: 3000 Pieces
Product Overviews
Wifi module Spec
Key Features
| Model | CP315B-1.2 |
| Chip | MTK RT3070 |
| Port | USB 1.1/USB2.0 |
| Antenna Gain | Need external antenna |
| Working Voltage | DC 5V |
| Dimension | 25mm*60mm*2.5mm |
Specification
Model |
CP315B-1.2 |
Standards |
IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK |
Port |
USB 1.1/USB2.0 |
Frequency Range |
2.4~2.4835GHz |
Channel |
1-14(optional USA Norm, EN, Japanese Norm) |
Modulation Type |
802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) |
Transmission Rate |
802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps |
Receive Sensitivity |
130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER |
Transmission Distance |
Indoor up to 30m,outdoor up to 80m(Base on the environment) |
RF Rate |
16dBm(Maximum) |
Antenna Gain |
Need external antenna |
Spread-Spectrum Technique |
DSSS(direct sequence spread spectrum) |
Working Voltage |
DC 5V |
Dimension |
25mm*60mm*2.5mm |
Working Environment |
Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS |
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip |
MTK RT3070 |

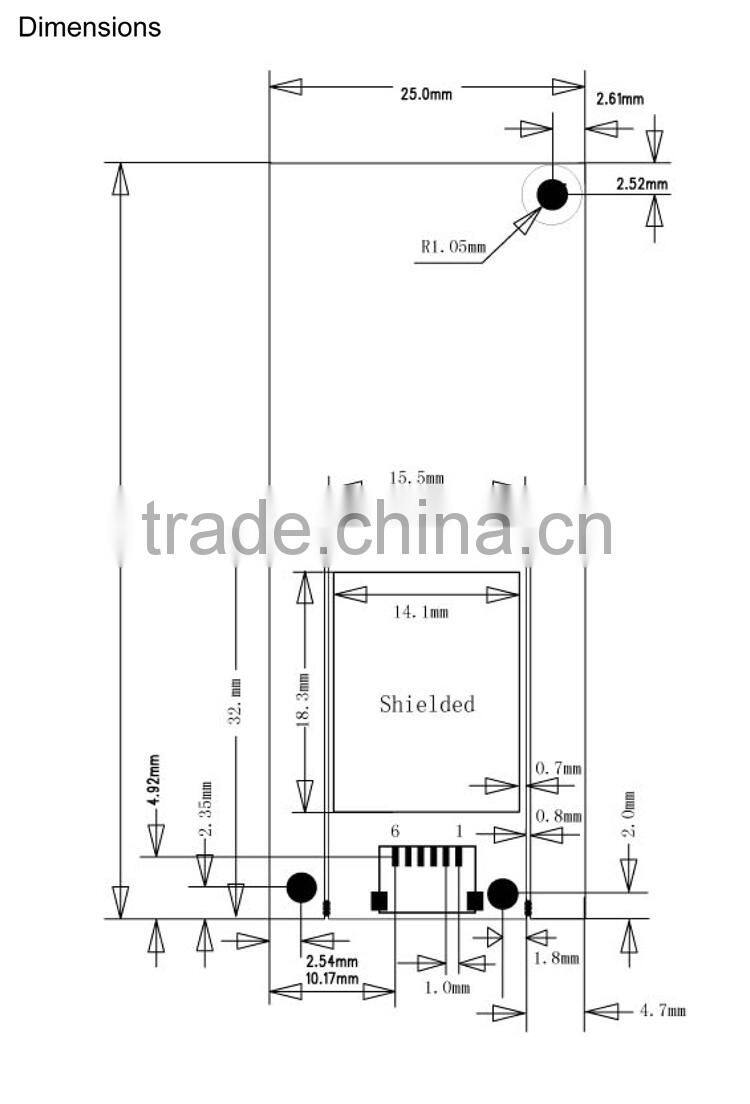

Dimension
OEM/ODM
customization software
adjustabe hardware according to your mold
warranty 1 year
Packing: post antistatic bag, antistatic box
Shipping: Express
