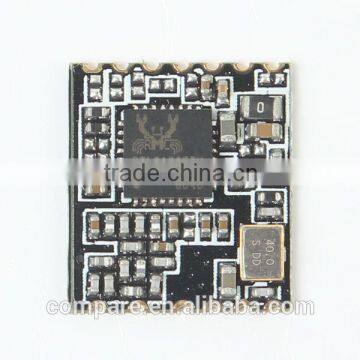

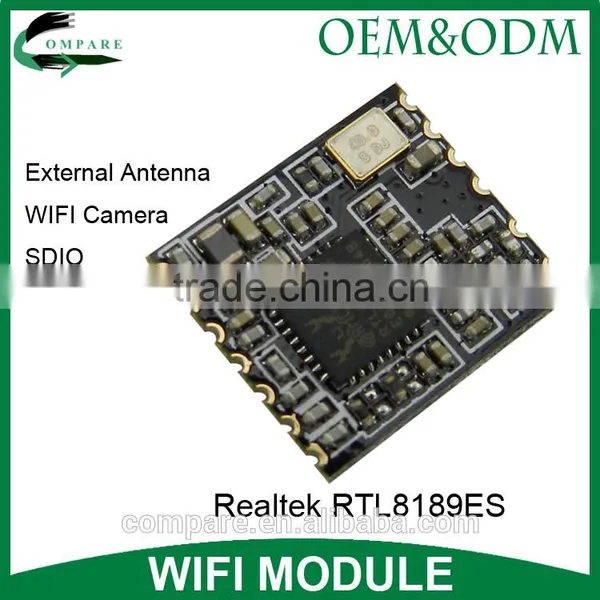

Help CenterMax 150Mpbs Wifi Adapter Network Realtek RTL8189ES Sdio Wifi Transmitter Wireless Module
Related Products
-
2.4G 1T1R Antenna Wifi Module Realtek RTL8723BU Usb Wifi+bluetooth Combo Wireless ModuleNegotiableMOQ: 100 Pieces -
1T1R 2.4G External Wifi Antennas tv Transmitter RTL8189ES Sdio Wifi Wireless ModuleNegotiableMOQ: 1000 Pieces
-
Wifi Smart Home IP TV Box Wireless Module RT3070 Usb 2.0 Wifi Modem With High ProformanceNegotiableMOQ: 1
-
150Mpbs 2.4GHz Antenna Wifi Realtek RTL8723BS Uart Bluetooth + Sdio Wifi 2 in 1 Wireless ModuleNegotiableMOQ: 1000 Pieces
-
2.4GHz 150Mpbs Low Energy Realtek RTL8723BU Usb Wifi + Bluetooth Module 2 in 1 Wireless ModuleUS$ 3.20 - 3.20MOQ: 3000 Pieces
Wifi Module Specification
Feature
| Model | CP812 |
| Chip | Realtek RTL8189ES |
| Port | SDIO |
| Antenna Gain | Need external antenna |
| Working Voltage | DC 3.3V ±0.2V |
| Dimension | 14.2mm*12.5mm*2mm |
Specification
Model |
CP812 |
Standards |
IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK |
Port |
SDIO |
Frequency Range |
2.4~2.4835GHz |
Channel |
1-14(optional USA Norm, EN, Japanese Norm) |
Modulation Type |
802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) |
Transmission Rate |
802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps |
Receive Sensitivity |
130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER |
Transmission Distance |
Indoor up to 30m,outdoor up to 80m(Base on the environment) |
RF Rate |
16dBm(Maximum) |
Antenna Gain |
Need external antenna |
Spread-Spectrum Technique |
DSSS(direct sequence spread spectrum) |
Working Voltage |
DC 3.3V ±0.2V |
Dimension |
14.2mm*12.5mm*2mm |
Working Environment |
Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS |
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip |
Realtek RTL8189ES |
Dimension
OEM/ODM
customization software
adjustabe hardware according to your mold
Packing: antistatic post bag, antistatic box
Shipping: Express
