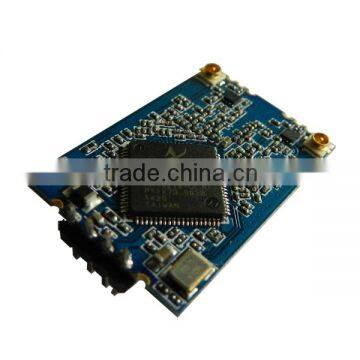

Help Center802.11a 2t2r Wifi Modem Qualcomm AR1021 Atheros Usb Wifi Transmitter Wireless Module
Related Products
-
Mini Bluetooth Camera Wifi Modem Realtek RTL8723BU Usb 2.0 Wifi + Bluetooth Wireless ModuleNegotiableMOQ: 1 -
Low Cost Usb Wifi Modem Realtek RTL8188ETV Transmitter Wireless Module for Set Top BoxUS$ 2.30 - 2.30MOQ: 3000 Pieces
-
Mini Pcie Wifi Module Realtek RTL8189ES Sdio Wireless Module for Wifi Barcode ScannerNegotiableMOQ: 1000 Pieces
-
Low Energy Bluetooth Module Uart Realtek RTL8723BS Sdio Wifi Modem Wifi Camera ModuleNegotiableMOQ: 1000 Pieces
-
150Mpbs 2.4GHz 802.11b/g/n Wifi Direct Module Rt3070 Usb Wifi Transmitter Wireless ModuleNegotiableMOQ: 1000 Pieces
WIFI Module Specification
802.11a Spec
Key Features
| Model | CP506 |
| Chip | Qualcomm AR1021 |
| Port | USB1.1,USB2.0 |
| Antenna Gain | Need external antenna |
| Working Voltage | DC 3.3V ±0.2V |
| Dimension | 27mm*18mm*2.5mm |
Specification
Model |
CP506 |
Standards |
IEEE 802.11a/b/g/n,CSMA/CA with ACK |
Port |
USB1.1, USB2.0 |
Frequency Range |
2.4~2.4835GHz,5.15-5.35GHZ, 5.745-5.825GHz |
Channel |
1-14(optional USA Norm, EN, Japanese Norm) |
Modulation Type |
802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) |
Transmission Rate |
802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps |
Receive Sensitivity |
130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER |
Transmission Distance |
Indoor up to 30m,outdoor up to 80m(Base on the environment) |
RF Rate |
16dBm(Maximum) |
Antenna Gain |
Need external antenna |
Spread-Spectrum Technique |
DSSS(direct sequence spread spectrum) |
Working Voltage |
DC 3.3V ±0.2V |
Dimension |
27mm*18mm*2.5mm |
Working Environment |
Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS |
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip |
Qualcomm AR1021 |
Dimension
OEM/ODM
customization software
adjustabe hardware according to your mold
warranty 1 year
