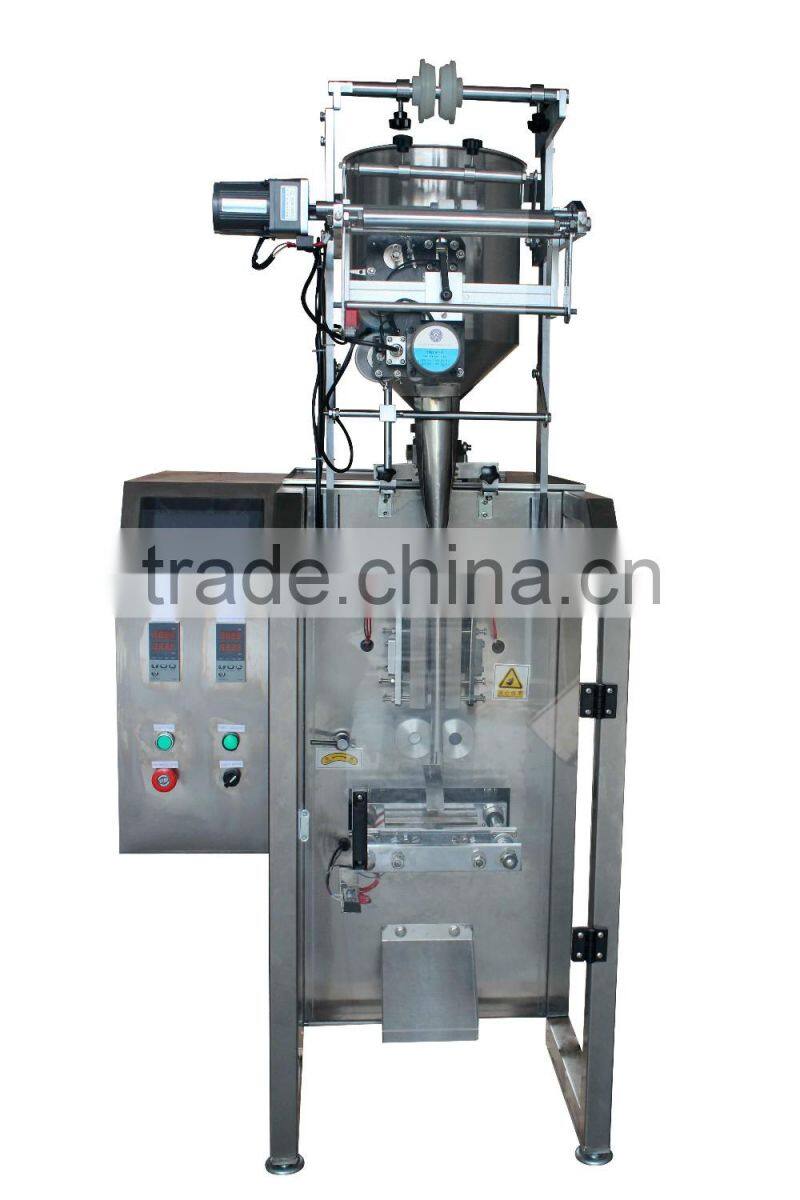

Full stainless steel alcohol packing machine back sealing

Name: Full stainless steel alcohol packing machine back sealing
Brand: Headly
Price: USD $2,000 - 6,000 / Set

FOB Price

USD $2,000 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Guangdong
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Beverage, Chemical, Food, Medical	Packaging Type:	Bags, Pouch, Stand-up Pouch
Packaging Material:	Plastic, Other, Plastic, Opp/Cpp.Opp/Ce.Mst/Pe/Pet/Pe	Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	220V	Power:	1000W	Place of Origin:	Guangdong, China
Brand Name:	Headly	Model Number:	HDL-Y60C	Dimension(LWH):	(L)640(W)700(H)1580
Weight:	225 kg	Certification:	CE,ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Full stainless steel alcohol packing machine back sealing

Product Description

PRODUCT INFORMATION

Model No	Y60C	420Y	520Y
Product Application	Liquid	Liquid	Liquid
Volume Range	1-50 ml	Max.1000ml	Max.2000ml
Machine Speed	40-70 bag/min	5-30 bag/min	5-25 bag/min
Film width	Max.230	Max.420	Max.520
Machine size (mm)	*L640W700H1580*	*L1217W1015H1570*	*L1488W1080H1850*
Machine Weight	225 kg	750 kg	800 kg
Packing Size	Length:1-150 width:1-100	Length:30-800mm width:80-200	Length:80-350mm width:100-250
Power	220V.50Hz.1KW	220V.50Hz.3.2Kw	220V.50Hz.4Kw
Sealing Type	3/4 sides sealing	Center Sealing; Pillow Type	Center Sealing; Pillow Type
Main Motor	Main Motor For Chian motor	Main Motor For Panasonic	Main Motor For Panasonic
Range of Application	ketchup,catchup,cream,shampoo,chilli sauce	all kinds of liquid or more stick liquid:soy sauce,soup,shampoo,sauce
Machine Motion	Intermittent
Machine control Through	PLC
Packing Film	Any heat sealable laminated roll
Feeding System	Pistion type
Packing film pulling	Through electromagnetic clutch and brake
Contact Parts	Food Grade Stainless SS 304
Temperature Controller	PID Based
Machine Features	Individual Temperature Control, High Speed Counter, Voltage Vector Control
language	English+Arabic+any
additional	toolbox+operation instruction
Optional Features	punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device

PRODUCT DISPLAY

Customized Service

Kindly Reminder:

Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.

Product details
Bag width, bag length (similar picture)
Bag shape
Packing film material
Machine frame

The finished product is shown as the figure above. A part of the components are customizable and you can use them to assemble the machine you need.

Optional Parts:

Measuring Cup Device

Combination Weigher

Screw Metering Machine

Plunger Pump Or Gear Pump Metering System

Hdl Series Main Machine

Z Type Bucket Elevator

Vibration Feeder

Supporting Platform

Product Conveyor

Screw Infeed Conveyor

Material Elevator

Nitrogen-Making Machine

Check Weigher

Metal Detector

Nitrogen-Making Machine

And So On

Product Advantage

PRODUCT ADVANTAGE

1.Efficient: to finish the production, sealing, packaging and date printing in one time.

2.Intelligent: automatic stop function, unsticky and not wasting the films.

3.Convenient: labor-saving, low loss, easy to operate and maintain.

SPARE PARTS

Spare parts	Brand
Temperature-controlled meter	Temperature-controlled meter from China for SHANGHAI YATAI
Horizontal cylinder	Horizontal cylinder from Taiwan for AIRTAC
Cutting thin cylinder	Cutting thin cylinder from Taiwan for AIRTAC
Push membrane cylinders	Push membrane cylinders from Taiwan for AIRTAC
FR&L	FR&L from Taiwan for AIRTAC
Reducing valve and pressure gage	Reducing valve and pressure gage from Taiwan For AIRTAC
Solenoid valve and valve plate	Solenoid valve and valve plate from Taiwan for MINDMAN
Filling solenoid	Filling solenoid from Taiwan for MINDMAN
Intermediate relay	Intermediate relay from Japan for IZUMI
Switching power supply	Switching power supply from Taiwan for FOTEK

HOT SALES & APPLICATION

> " href="http://www.china.cn/product-detail/Foshan-Headly-plastic-packaging-machine-nougat_60256122880.html?spm=a2700.7724838.35.1.fjiSkH" target="_blank"> 1.HDL-250B >>> " href="http://www.china.cn/product-detail/Foshan-Headly-plastic-packaging-machine-nougat_60256122880.html?spm=a2700.7724838.35.1.fjiSkH" target="_blank">

>" href="http://www.china.cn/product-detail/foshan-Headly-automatic-small-food-wafer_60242127875.html?spm=a2700.7724838.35.1.Ih0H4T" target="_blank">2.HDL-450DT >>

>" href="http://www.china.cn/product-detail/detergent-washing-powder-packaging-machine_60275551931.html?spm=a2700.7724838.35.1.CucT64" target="_blank">3.HDL-520F >>

250 grams-10kg
powder packaging

machine

>" href="http://www.china.cn/product-detail/Headly-automatic-counting-and-weighing-machine_60276301217.html?spm=a2700.7724838.35.9.SaNCn7" target="_blank">4.HDL-420D >>

>" href="http://www.china.cn/product-detail/Wholesale-Small-Vacuum-Food-Packing-Machine_60291956358.html?spm=a2700.7724838.35.1.bAotfp" target="_blank">5.HDL-160A >>

>" href="http://www.china.cn/product-detail/Headly-automatic-weighing-50g-100g-200g_60273683986.html?spm=a2700.7724838.35.1.mYznlp" target="_blank">6.HDL-160F >>

1-250 grams powder

packaging machine

Widely used in food, pharmaceuticals, daily necessities, chemicals, toys and hardware accessories, etc.
Pillow packaging machine: for the packaging of snacks like cookies, snow cakes and custard pie, etc.; also for industrial spare parts, trays and other types of goods in regular packaging.
Upright packaging machine: can pack different kinds of materials.

>>" href="http://hdlpack.en.china.cn/contactinfo.html" target="_blank">CONTACT >>>

Certifications

CERTIFICATE

Headly has been made so far the EU "CE" certification and ISO 9001 international quality management system certification, Headly products sold in Europe, Asia, South America and the Middle East Africa, dozens of countries around the world and area, and strong support from the customers.

PRODUCTION & PACKAGING

Company Information

Foshan Headly Packaging Machinery Co., Ltd. has built up since 2002. Our range consists of horizontal packaging machine, vertical packaging machine, automatic feed packing line, food production equipment and many more products. Headly has the EU "CE" certification and ISO 9001 certification. Customized service accepted.We provide suggestive measures to customers for helping them in choosing the appropriate product as per application needs.

FACTORY

EXHIBITION

TEL:+86-757-8665 5360

MOBILE:+86-13802648734

FAX:+86-757-8665 5360

ADD:No. 5 Lianpin Road, Yinchong Industrial

Park, Hexi Avenue, Yanbu Street,

Nanhai District, Foshan City,

Guangdong, China

E-mail:amber@

FAQ

Q: Why choose us?

A 1.More than ten years of production experience, let us pay more attention to product detail. 2.Materia selectionl, we insist on using domestic and international famous brands of accessories, to ensure the stability of the equipment.

3.About after sale service, customer problems in using the machine, our staff will be in the first time to solve the program are given.

Q:I have never use this kind of packaging machie,how to control?

A 1.Each machine we are accompanied by the relevant operating instructions.

2.Our engineers can operate through a video demonstration.

3.We can send engineers to the scene teaching.

Q:How to choose a best fit packaging machine?

A 1.Give us the product size, weight, size of the packaging bag, packaging style, we will make a detailed plan for your reference.

2.Provide us the packaging products,they will be packed in our machines and mailed to you for your reference.

Q:What makes us outstanding from peers?

A 1.A most strict QC standard in the industry is applied.

2.CE and IOS certificate.

3.High productivity with advanced machines.

4.A wide selection of styles, and product types.
