Company profile:
Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of buttfusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.

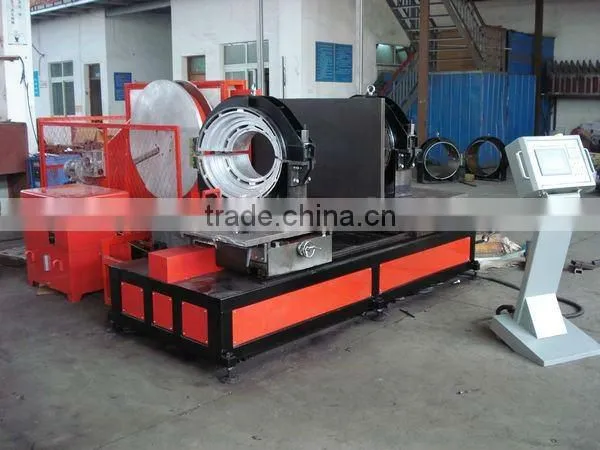

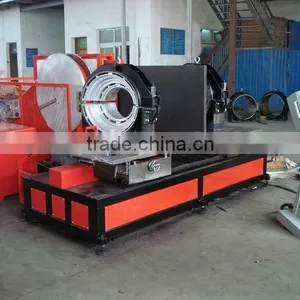

SHG 24"/12" HDPE butt welding machine with angle make fitting, HDPE pipe fitting machine
Application and features:

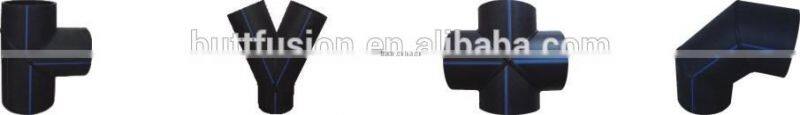

*Suitable for fabricating elbow,tee,cross and Y shape (45 degrees and 60 degrees) fittings of PE,PP,PVDF in workshop. Also used to lengthen the injection moulded fitting or make the integrated fittings.

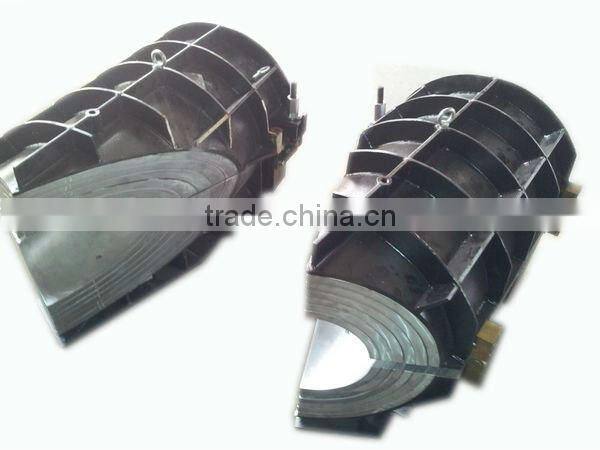

*Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.
*Removable PTFE coated heating plate.
*Electric planing tool with safety limit switch.
*Low starting pressure and high reliable seal structure.

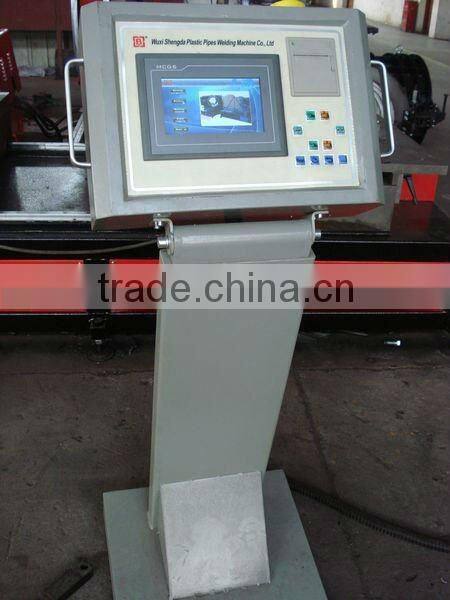

*Separate two-channel timer records times in soaking and cooling phases.
*High-accurate and shockproof pressure meter indicates clearer readings. Digital pressure meter is installed on machines.
*SHG630 linear guide ways are equipped with heating plate and planing tool.
*Products comply with 98/37/EC and 73/23/EEC standards.
Optional parts

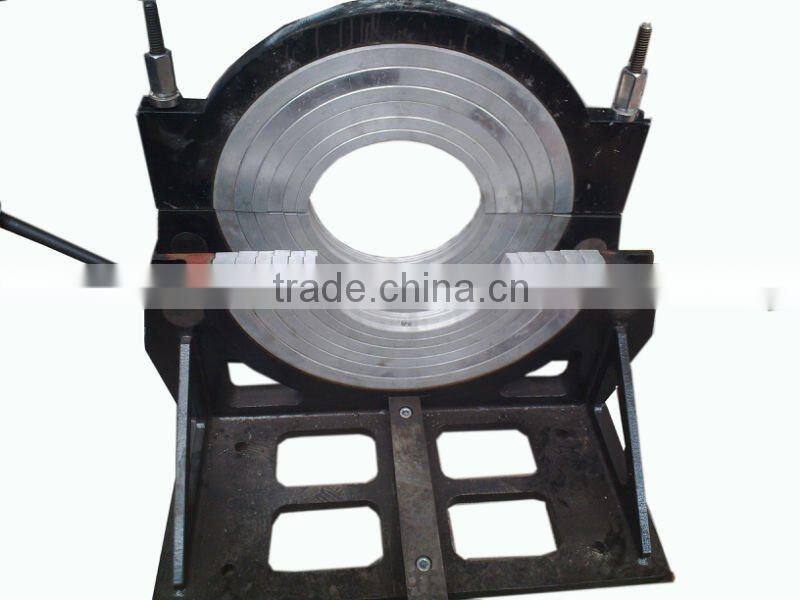

*Special clamps for welding flange stub.
*Special clamps for short spigot fitting.

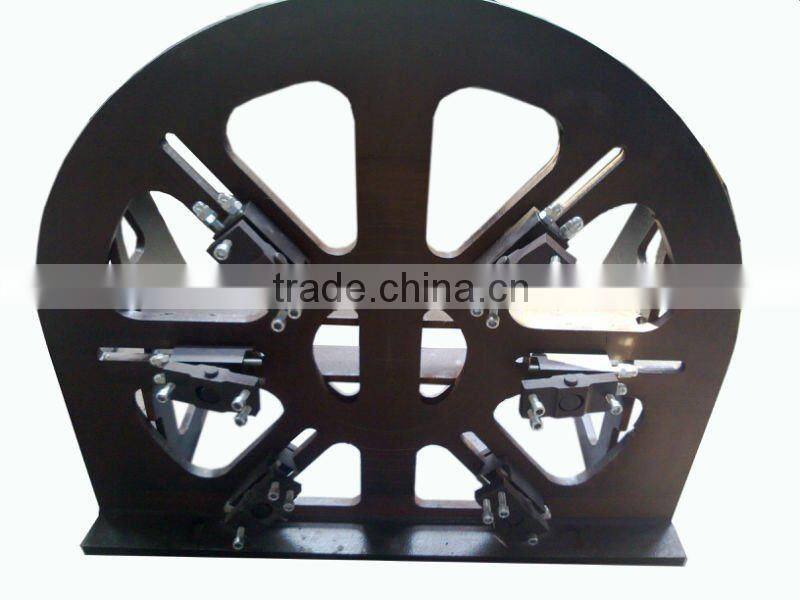

*Special clamps for welding Y shape (45 degrees and 60 degrees) fittings.
Technical parameters:
| Model | SHG630 | |

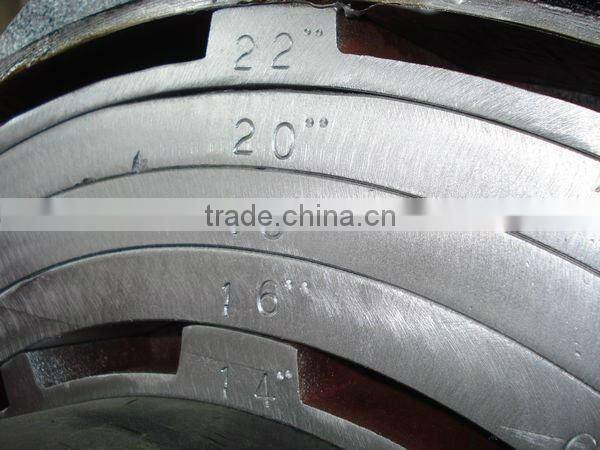

| Pipe size(mm) | ISP12", 14",16",18",20",22" and 24" | |
| Application | 0~90 degrees elbow, tee, cross, 45 degrees 60degrees Wyes (Optional parts should be used) | |
| Heating plate max. temp. | 270 degrees C | |
| Temp. deviation in surface(170-250 degrees C) | ≤±7 degrees C | |
| Pressure adjustable ranges | 0~16 MPa | |
| Working voltage | 380 V/415v/400V/460V, 50 Hz/60Hz | |
| Heating plate power | 22 KW | |
| Planing tool power | 4.0 KW | |
| Hydraulic unit power | 2.2 KW | |
| Total power | 28.2 KW | |
| Total weight | 3510 KGS | |
