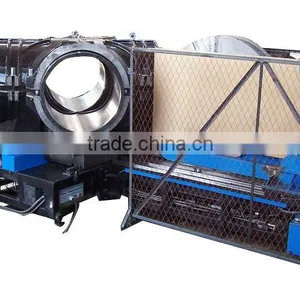

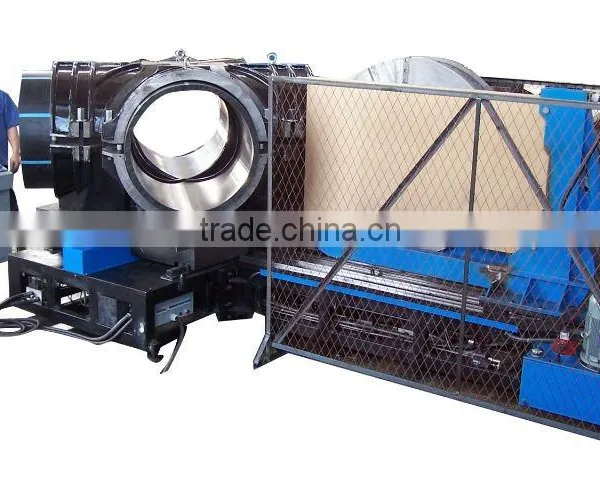

SHG1000 PE fitting fabricating machine, HDPE pipe fitting butt fusion welding machine, plastic pipe fitting butt fusion machine
Application and features :

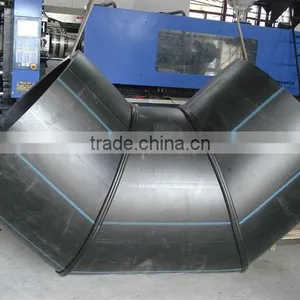

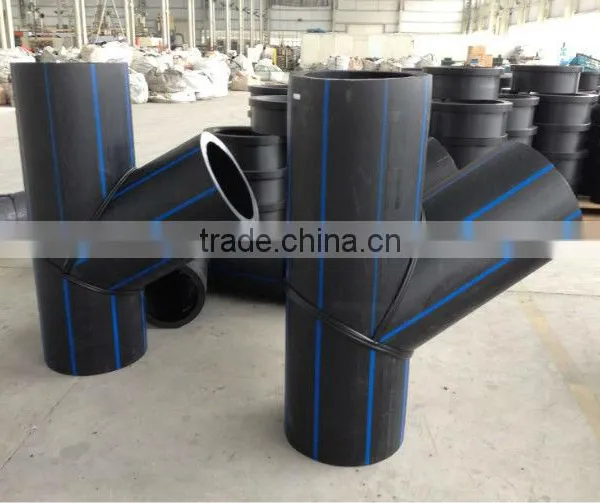

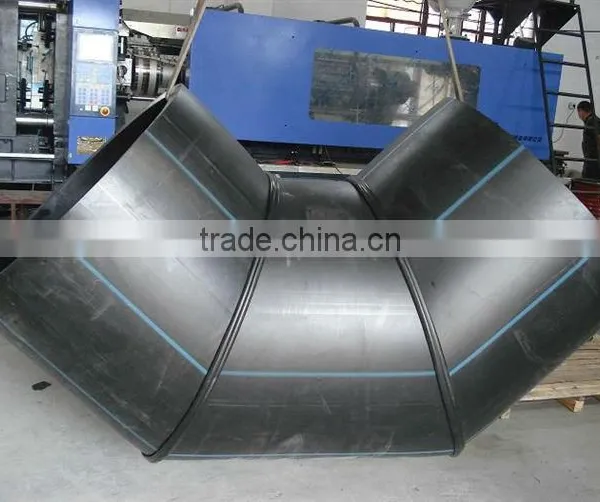

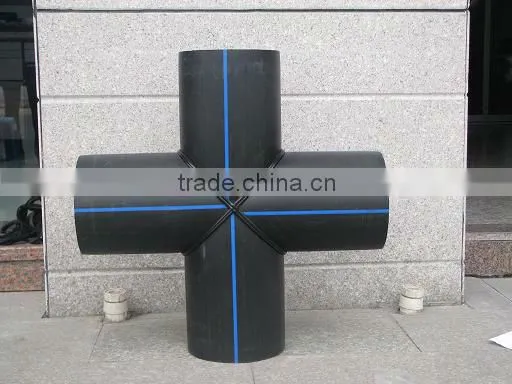

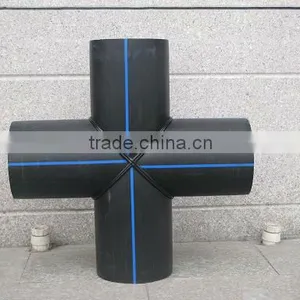

> Applied to fabricate PE PP PVDF elbow, tee, cross and Y shape (45° and 60 °) fittings in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
> Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
> Removable PTFE coated heating plate with separate temperature controlling system
> Electric planing tool with safety limit switch enable to start it only when it is locked in the operation position
> Low starting pressure and high reliable seal structure
> Separate two-channel timer records times in soaking and cooling phases.
> Digital pressure meter enables to control pressure accurately
> Linear guide ways are equipped with eating plate, planing tool and dragging plate
The Main parameters:
Model |
SHG1000 |
||
Pipe sizes (mm) |
630,710,800,900,1000 |
||
Working ranges Elbow |
0~90° Elbow.tee,cross,45°,60°Wyes(optional parts should be used) |
||
Heating Plate Max. Temp. |
270°C |
||
Temp. deviation in surface (170~250°C) |
<±7°C |
||
Pressure adjustable ranges |
0~16MPa |
||
Working Voltage |
380V 50Hz |
||
Heating plate power |
60KW |
||
Planing tool power |
4KW |
||
Hydraulic unit power |
10.5KW |
||
Total power |
74.5KW |
||
Total weight |
18000KG |
||
Packing |
Cases |
11 Plywood Cases |
|
Volume |
41.93 CBM |
||
Optional parts:
> Special clamps for welding flange stub
> Special clamps for short fitting
