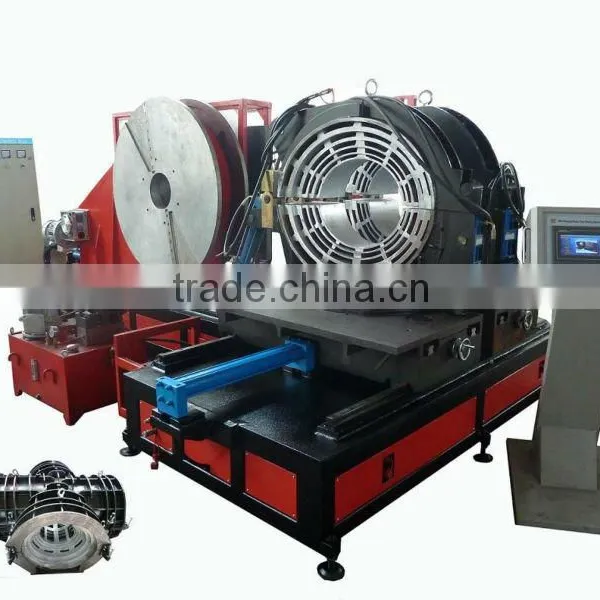

SHG800 workshop pipe fitting fabrication machine, HDPE pipe fitting welding machine
Application and features :

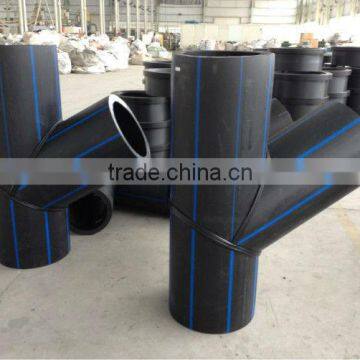

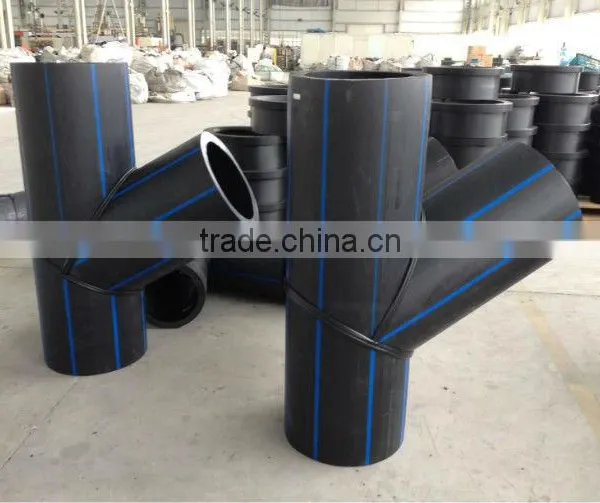

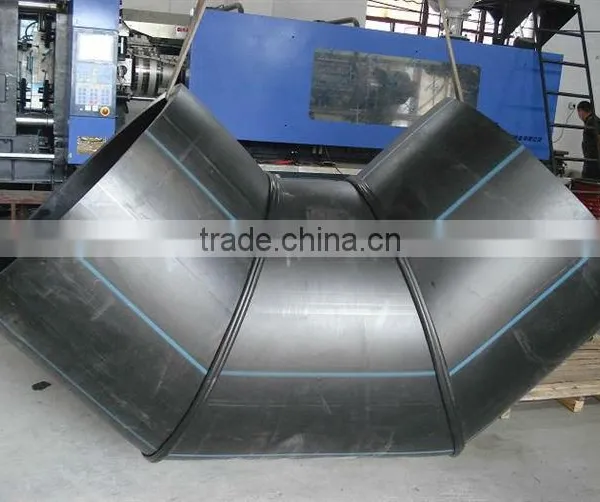

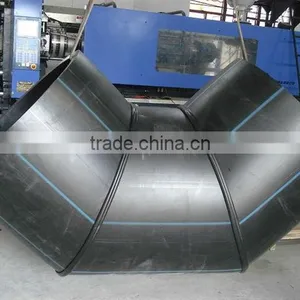

♦ Applied to fabricate PE PP PVDF elbow, tee, cross and Y shape (45° and 60 °) fittings in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
♦ Removable PTFE coated heating plate with separate temperature controlling system
♦ Electric planing tool with safety limit switch enable to start it only when it is locked in the operation position
♦ Low starting pressure and high reliable seal structure
♦ Separate two-channel timer records times in soaking and cooling phases.
♦ Digital pressure meter enables to control pressure accurately
♦ Linear guide ways are equipped with eating plate, planing tool and dragging plate
Main parameters:
Model |
SHG800 |
|
Pipe sizes (mm) |
450,500,560,630,710,800 |
|
Working ranges Elbow |
0~90° Elbow.tee,cross,45°,60°Wyes(optional parts should be used) |
|
Heating Plate Max. Temp. |
270°C |
|
Temp. deviation in surface (170~250°C) |
<±7°C |
|
Pressure adjustable ranges |
0~16MPa |
|
Working Voltage |
380V 50Hz |
|
Heating plate power |
39.28KW |
|
Planing tool power |
4KW |
|
Hydraulic unit power |
4KW |
|
Total power |
47.28KW |
|
Total weight |
4900KG(Don`t include optional parts |
|
Packing |
Cases |
11 Plywood Cases |
Volume |
23.3 CBM |
|
Optional parts:
♦ Special clamps for welding flange stub
♦ Special clamps for short fitting
