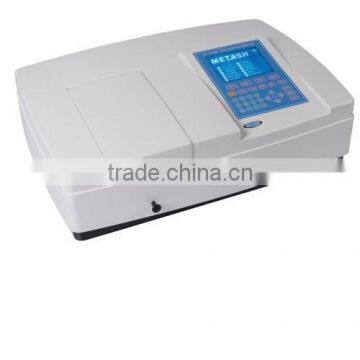

Help CenterUV-6100 Spectrophotometer
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
shanghai metash
Model Number:
UV-6100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UV-6100A SpectrophotometerNegotiableMOQ: 1 Piece -
UV-6100S SpectrophotometerUS$ 6,000 - 8,000MOQ: 1 Piece
-
UV-6000 Singles Beam UV Visible Spectrophotometer Analytical Lab InstrumentsNegotiableMOQ: 1 Piece
-
UV-6000PC SpectrophotometerNegotiableMOQ: 1 Piece
-
UV-5800 SpectrophotometerNegotiableMOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
shanghai metash
Model Number
UV-6100
Size
625*430*206mm
Weight
30kg
Wavelength Range
190-1100nm
Measurement Range
0-200%T, -0.3-3.0A
Features
1, The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.
2, The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the UV/vis spectrum starting from 190nm and into the near-infrared 1100nm.
3, Online software upgrade capability via Internet(for stand-alone models)
4, Full A4 print-out of graphs and tables of results with popular inexpensive printers such as HP or Epson Deskjet.
5, Real-time clock for date and time stamping of results
6, Large LCD display (320*240 Dots Matrix)
Specifications
| Model | UV-6100 |
| Optical System | Single Beam(1200 Lines/mm Grating) |
| Wavelength Range | 190-1100nm |
| Bandwidth | 0.5/1.0/2.0/4.0nm |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Repeatability | 0.2nm |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | -0.3-3A,0-200%T,0-9999C |
| Stability | ± 0.001A/h @ 500nm |
| Baseline Flatness | ± 0.001A/h |
| Noise | ± 0.001A/h |
| Stray Light | ≤0.05%T @ 220nm,360nm |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 320*240 Dots LCD |
| Lamps | D2 Lamp & W Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or 110V/60Hz |
| Dimension | 625*430*206mm |
| Weight | 30kg |
