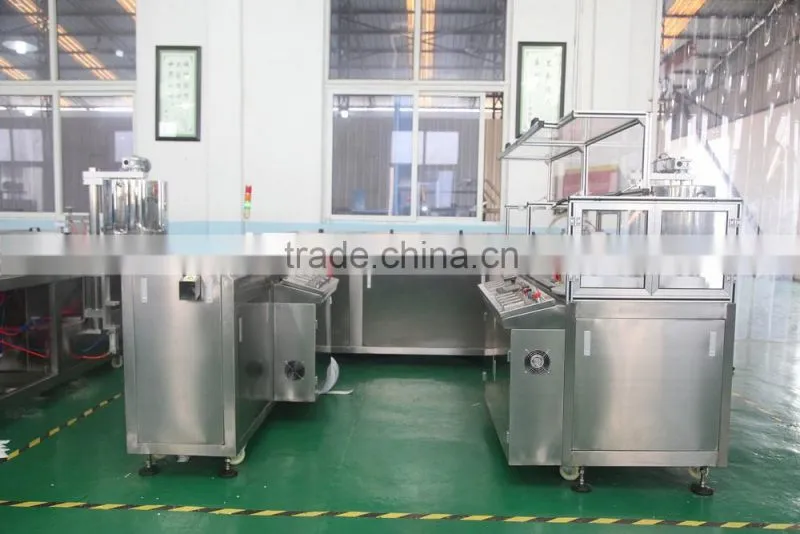

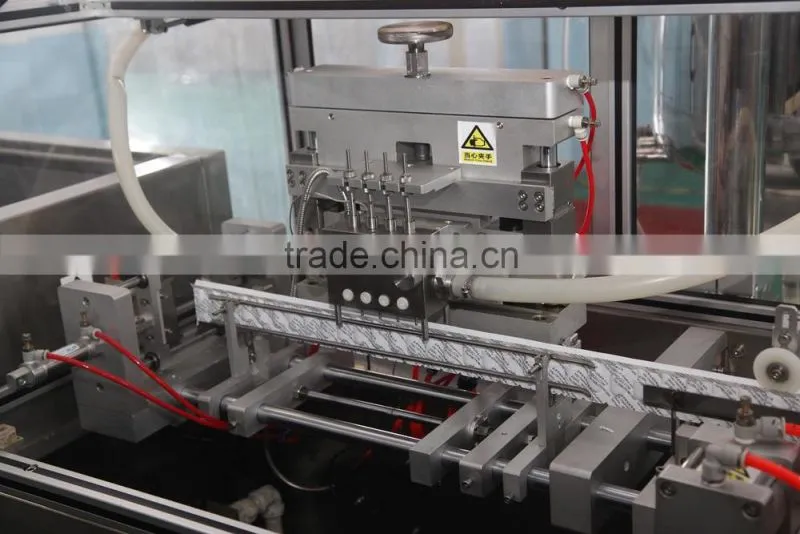

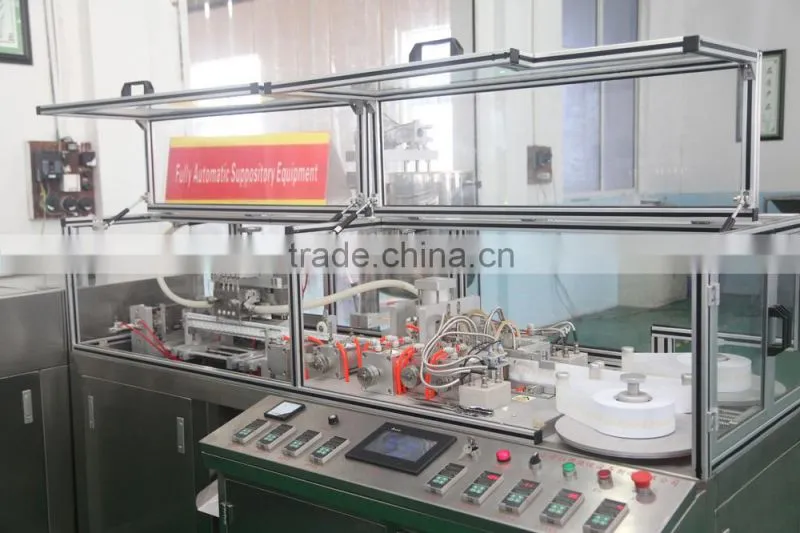

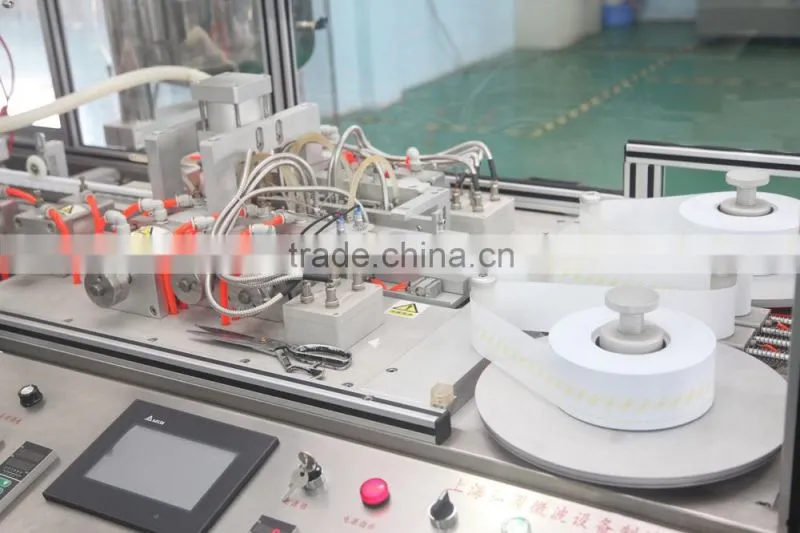

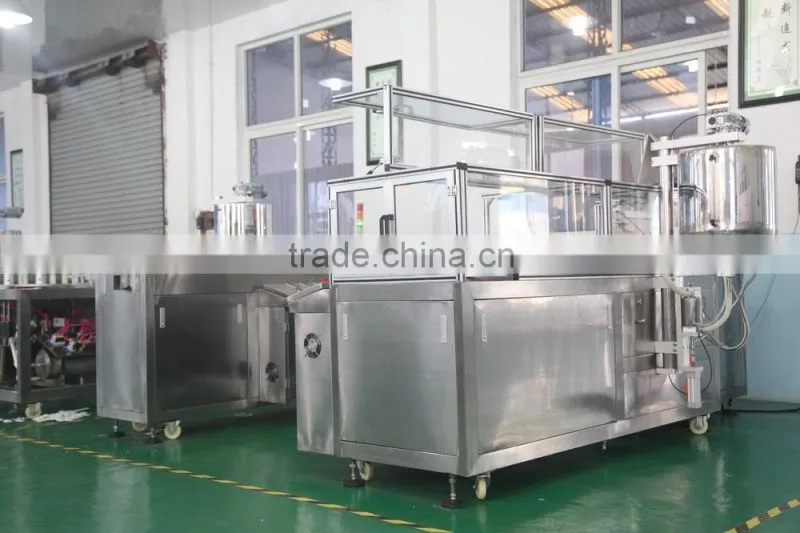

Liquid Application Suppository production line
Working principle:
Rolls of Packing film (PVC PVC / PE, dual aluminum composite film) will be send to filling process after shell making, and the liquid medicine will be filling into empty suppository shell automatically through the high precision metering pumps. Then it will be a suppository line and cuts into sections automatically according to the length of the suppository line. And conveyed to cooling devices to make it cool and be solidification. After that it will be filling, truing, printing date of production and molding.
Features:
It is widely used and can fill substrate and Chinese medicine production with high viscosity; PLC controller and Man-Machine Interface operator, fully automatic; Accurate temperature controller; Smoothly running; ; High capacity, it feeds liquid medicine in a constant temperature cycles and fully automatic to control liquid level, so the liquid will be never solidification. It also can stir the liquid medicine according to the different materials and adjust the speed after cooling. And reject the Non-conforming product; It takes Small occupation area and is easy to adjust.
Technical Data:
Output: 8000-12000 suppsitories /h
Capacity of product tank:
50lt. Heated double-jacketed electric immersion element
Chagred volume: 0.5-5ml
Air pressure: 0.6Mpa
Air consumption: 1.5m3/min
Cooling time: 10minutes
It can make a variety of shapes such as warhead style,
Torpedo style and duckbilled style etc.
Accurate Filling and it fits for all different
Materials. (fatty glyceride/glycogelatin/ Polyethyleneglycols)
It fits for PVC, PVC/PE and composite membrane etc Molding of packaging material
Filling precision: ± 1% automatic PLC controlling system and aerodynamic
It can be U or linear type according to the place.
Main technical parameters:
Model |
Unit |
HY-Z Suppository Production Line |
Capacity |
PCS/Hour |
8000-12000 (depending on product) |
Total Power |
KW |
7.5Kw |
Voltage, frequency |
V |
3PH 380 +/-10% 50Hz |
Dose per unit |
ML |
0.5~5 (depending on product) |
Deviation |
% |
<±2 |
Suppository shape |
N/A |
Bullet, torpedo, duck-mouth ect (depending on product) |
Adapting |
N/A |
Fatty acid glycerin,gelatin,glycol,etc., (depending on product) |
Volume |
L |
50 |
Air pressure |
Mpa |
0.6 |
Air consumption |
m3 |
1.5 |
Water consumption |
N/A |
50kg per circle |
Total weight |
KG |
2000 |
Machine dimensions |
MM |
external: 6600*2000*2300 (L*W*H) |
