FR-4 Halogen-free Copper Clad Laminate Sheet
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Halogen Free Copper Clad Laminate Sheet
-
Halogen Free Copper Clad Laminate Sheet Manufacturer
-
Halogen Free Copper Clad Laminated Sheet-CCL
-
Epoxy Glass Prepreg(PP) for FR-4,CEM-3 Copper Clad Laminate(CCL)
-
Epoxy Glass Prepreg(PP) for FR-4,CEM-3,CEM-1 Copper Clad Laminate(CCL)
-
Epoxy Glass Prepreg(PP) for FR-4,CEM-3,CEM-1
Product Details
| Place of Origin | Anhui, China | Brand Name | Hero Sail | |
| Model Number | HRE-4130 | Type | Other, Insulation Sheet, Antimony-free,halogen-free,lead-free | |
| Material | Fiberglass | Application | High Temperature |
Product Description
Specifications
1.FR-4 halogen free copper clad laminate sheet2.UV blocking/AOI compatible
3.Antimony-free,halogen free

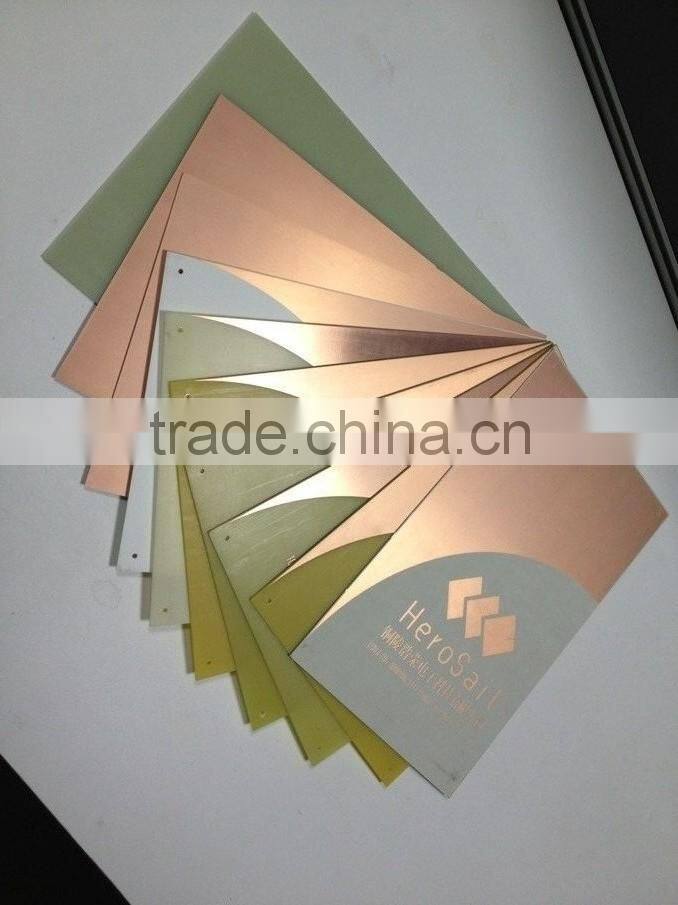

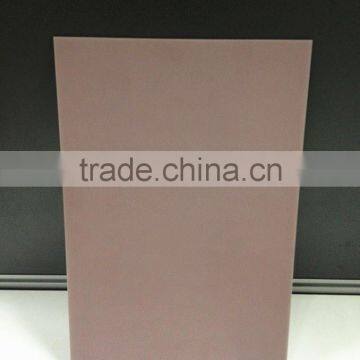

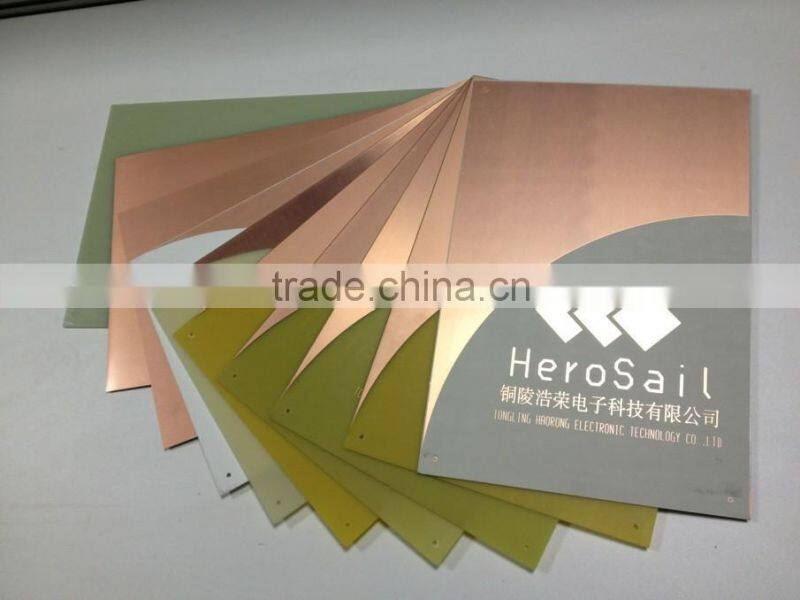

FR-4 halogen free copper clad laminate sheet
I. Application:
HRE-4130 halogen free copper clad laminate is widly used in:
Mobile phone
Computer
Communication device
Measuring instrument
Vedio
Player,etc
II. Testing specifications
HRE-4130 Laminate | Unit | specification | Typical Value | Test Method | |
Metric | <0.5mm | ≥0.5mm | 1.6mm CCL | IPC-TM-650 | |
1. Peel Strength,as received | N/mm | 1.2(1OZ ) | --- | ||
A. 17micron copper | ≥0.70 | ≥0.7 | |||
B. 35micron copper | ≥0.79 | ≥1.05 | |||
C. 70micron copper | ≥0.88 | ≥1.40 | |||
D. 105,140,175micron copper and above | ≥0.96 | ≥1.58 | |||
2. Surface resistivity | MΩ | ||||
A. Constant temp.&moisture C-96/35/90 | ≥106 | --- | --- | ||
B. After moisture resistance | --- | ≥104 | 2.0×107 | ||
C. Under high temperature | ≥103 | ≥103 | 4.0×106 | ||
3. Volume resistivity | MΩ.cm | ||||
A. Constant temp.&moisture C-96/35/90 | ≥106 | --- | --- | ||
B. After moisture resistance | --- | ≥107 | 1.5×108 | ||
C. Under high temperature | ≥103 | ≥103 | 4.0×106 | ||
4. Moisture absorption | % | --- | ≤0.5 | 0.15 | |
5. Dielectric breakdown | KV | --- | 40 | 48 | |
6. Permittivity at 1MHZ | -- | <5.4 | <5.4 | 4.7 | |
7. Tg(DSC) | °C | --- | 150±5 | 141 | |
8. Loss tangent at 1MHZ | -- | <0.035 | <0.035 | 0.020 | |
FAQ
Q: 1. Can I have free samples?
A: Yes, we can provide free sample only for small size after you accept our price and all the information confirmed by you.
Q: 2. What is the manufacturing time?
A:Sample needs 1-3 days, mass production needs 7-10 days, It depends on quantity.
Q: 3. What is your MOQ?
A: Our MOQ is 250 sheets for copper clad laminate,and 2 rolls of prepreg
Q: 4. Can you accept mixed batch of different products?
A: Yes, we are support different product mix wholesale.
Q: 5. How do you ship the goods ?
A: For huge quantity,we can deliver it by FCL,for small quantity,we can deliver by LCL,samples will deliver by DHL,FEDEX,UPS,etc.
Any other questions,pls feel free to leave a message.We are looking for your inquiry!
