CEM-3 Copper Clad Laminate Sheet for Pcb Manufacturer

Name: CEM-3 Copper Clad Laminate Sheet for Pcb Manufacturer
Brand: HaoRong
SKU: 104378377
Availability: InStock

CEM-3 Copper Clad Laminate Sheet for Pcb Manufacturer thumbnail-1

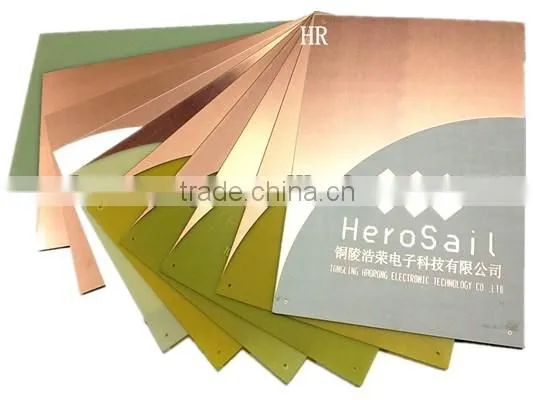

CEM-3 Copper Clad Laminate Sheet for Pcb Manufacturer photo-1

Negotiable MOQ: 1 Sheet (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

HaoRong

Model Number:

HR-3131

Contact Supplier Request Quote Chat Now

Tongling HaoRong Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghi

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name HaoRong

Model Number HR-3131

Type Insulation Sheet

Material Fiberglass

Specifications

1.White,opaque with good color-change resistance.
2.Punching available.
3.PCB processing same as FR-4

Application:

CEM-3 series copper clad laminate sheets are widely used in instrument and meters, household electrical appliances ,automotive electronics, automatic control equipment and game player,etc.

Standard dimension

THICKNESS		COPPER FOIL	SIZE		THICKNESS TOLERANCE
Inch	mm	oz(μm)	Inch	mm	THICKNESS TOLERANCE
0.024	0.6	1/3(12) 1/2(17)	36×48	915×1220	IPC4101C C/M
to		1.0(35) 2.0(70)	40×48	1020×1220
0.125	3.2	3.0(103)	42×48	1070×1220

Remark:Other dimension is available according to customers requirements.

Specifications

HR-3131 Laminate	Unit	specification		Typical Value	Test Method
HR-3131 Laminate	Metric	<0.5mm	≥0.5mm	1.6mm CCL	IPC-TM-650
1. Peel Strength,as received	N/mm			1.8(1OZ )	--
A. 17micron copper		--	≥1.05
B. 35micron copper		--	≥1.40
C. 70micron copper		--	≥1.93
D. 105,140,175micron copper and above		--	≥2.10
2. Surface resistivity	MΩ
A. C-96/35/90		--	--	2.6×107
B. After moisture resistance		--	≥104	--
C. At elevated temperature		--	≥103	5.4×106
3. Volume resistivity	MΩ.cm
A. C-96/35/90		-	≥106	1.2×108
B. At elevated temperature		-	≥103	2.4×106
4. Moisture absorption	%	-	≤0.80	0.13
5. Dielectric breakdown	KV	-	40	44
6. (1MHZ)Permittivity at 1MHZ	-	<5.4	<5.4	4.7
7. Tg(DSC)	°C	-	-	126
8. Loss tangent at 1MHZ	-	<0.035	<0.035	0.017
9. Thermal stress	260°C/10S
Un-etched		pass	pass	pass
Etch		pass	pass	pass
10. Flammability	Rating	94V-0	94V-0	94V-0
