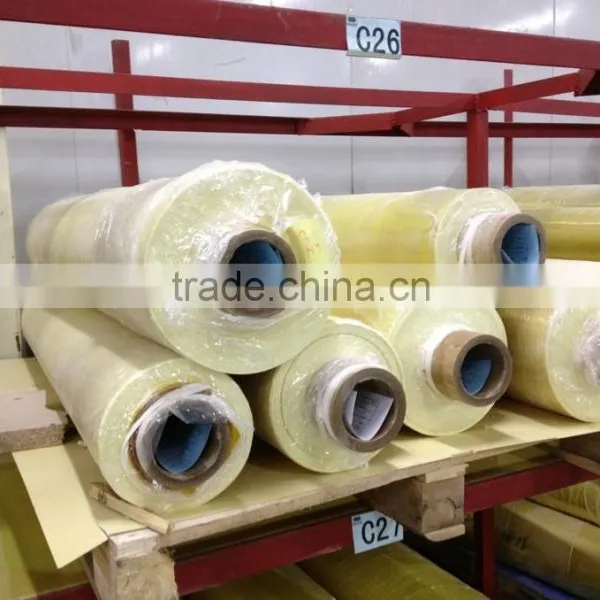

Help CenterEpoxy Glass Prepreg(PP) for FR-4,CEM-3 Copper Clad Laminate
Related Products
-
FR-4,CEM-3 Epoxy Glass Prepreg-PPNegotiableMOQ: 300 Meters -
FR-4,CEM-3 Epoxy Glass PrepregNegotiableMOQ: 300 Meters
-
Epoxy Glass Prepreg for FR-4,CEM-3,CEM-1 Copper Clad LaminateNegotiableMOQ: 1 Roll
-
Epoxy Glass Prepreg for FR-4,CEM-3,CEM-1 Laminate SheetNegotiableMOQ: 1 Roll
-
Epoxy Fiberglass Prepreg for FR-4,CEM-3,CEM-1NegotiableMOQ: 1 Roll
Specifications
1.Excellent varnish viscosity,wide operating port.2.UV blocking/AOI
3.Can supply the maximum width of 51.5"prepreg
Property list
Glass Style |
RC(%) |
GT(S) |
RF(%) |
VC(%) |
Cure Thickness(mm) |
Length (roll) |
106 |
±2 |
110±20 |
±5 |
<0.75 |
0.05±0.010 |
1260mm×114.3m(125) |
1080 |
61±3 |
39±5 |
0.08±0.010 |
|||
2113 |
56±3 |
26±5 |
0.100±0.010 |
|||
3313 |
55±3 |
26±5 |
0.100±0.015 |
|||
2116 |
48±3 |
27±5 |
0.094±0.010 |
|||
2116 |
50±3 |
29±5 |
0.097±0.010 |
|||
1506 |
50±3 |
30±5 |
0.147±0.010 |
|||
7628 |
43±3 |
22±5 |
0.190±0.015 |
|||
7628 |
48±3 |
25±5 |
0.220±0.015 |
Note:According to customer’ s requests, HAORONG can produce special performance materials.
Main specifications
HRPFR-4UV Prepregs |
Units |
Specification |
Typical Value |
Test Method |
1. R/C |
% |
±3 |
±3 |
IPC-TM-650 |
2. Resin Flow |
% |
±5 |
±5 |
|
3. Gel Time |
Sec |
±20 |
±20 |
|
4. Condition1/Condition2 |
Days |
90/180 |
90/180 |
|
5. Flammability(as laminated) |
Rating |
V-0 |
V-0 |
|
6. Other |
--- |
As per IPC-4101C or AABUS |
||
Condition1:Storage under ≤20°C,≤50%RH for 3months.
Condition 2:Storage under the temp.below 5°C for 6 mnths.
Detais:
