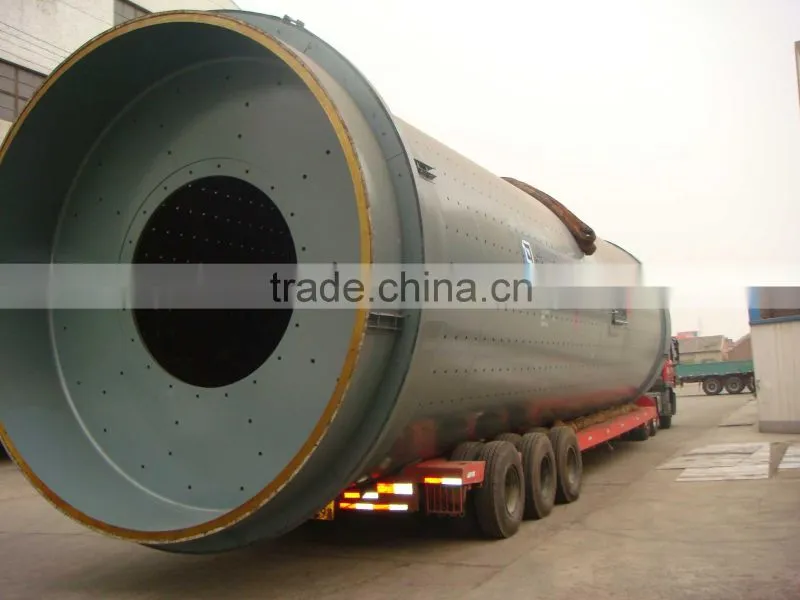

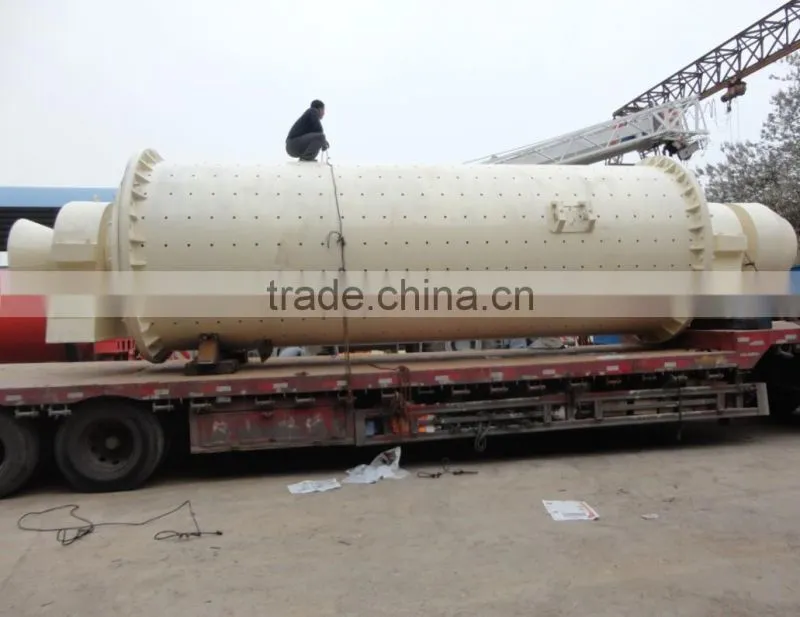

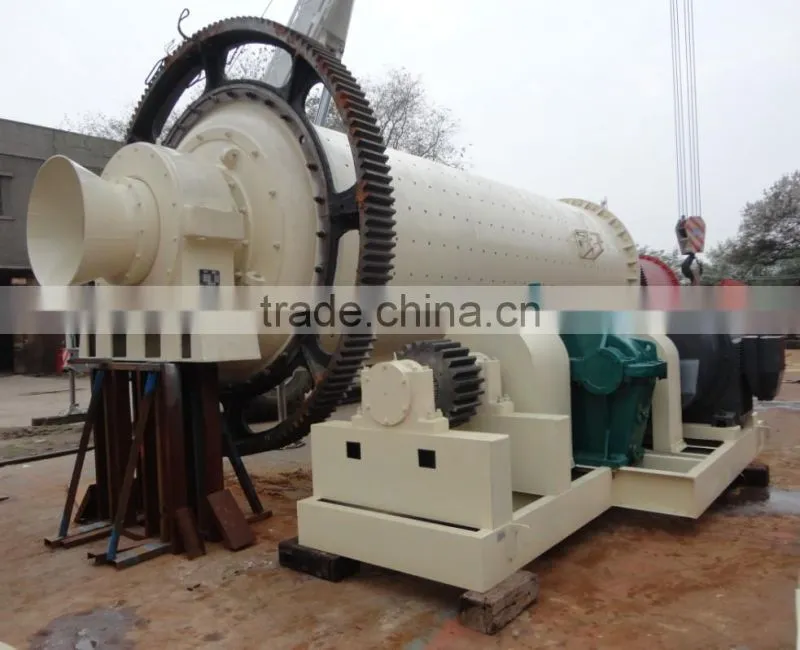

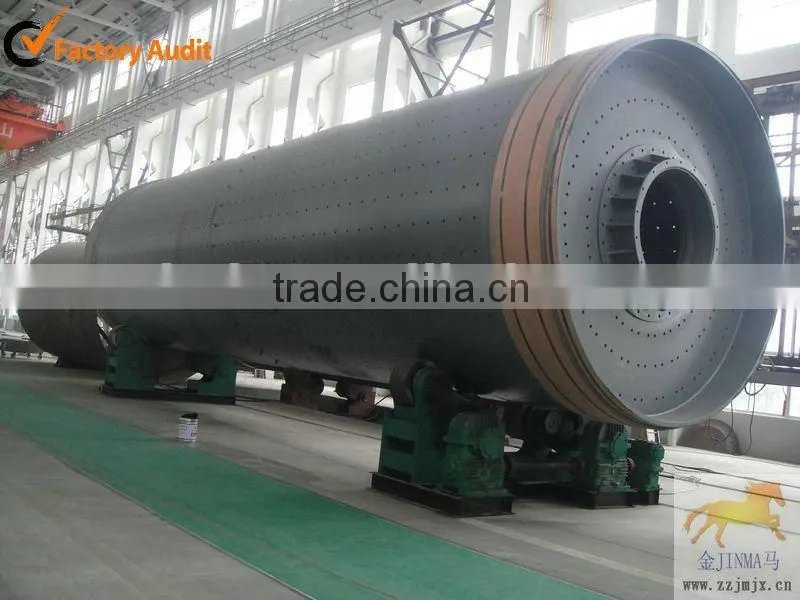

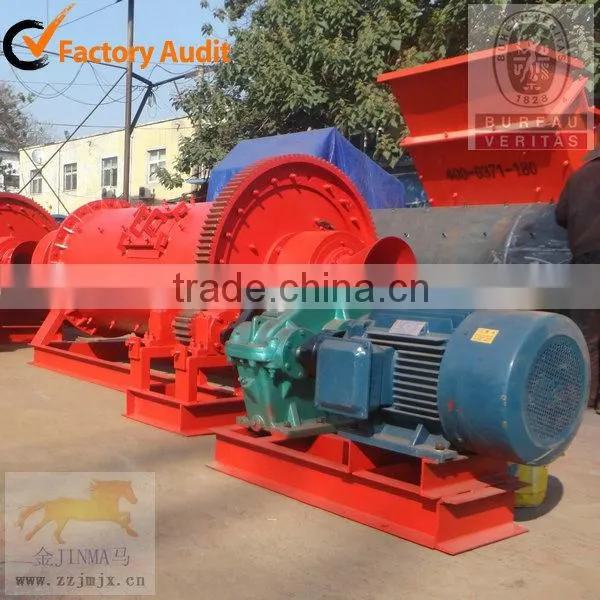

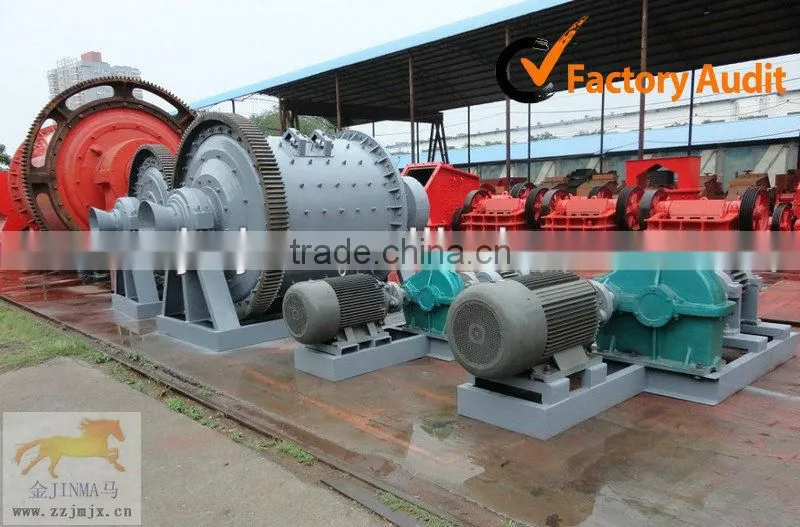

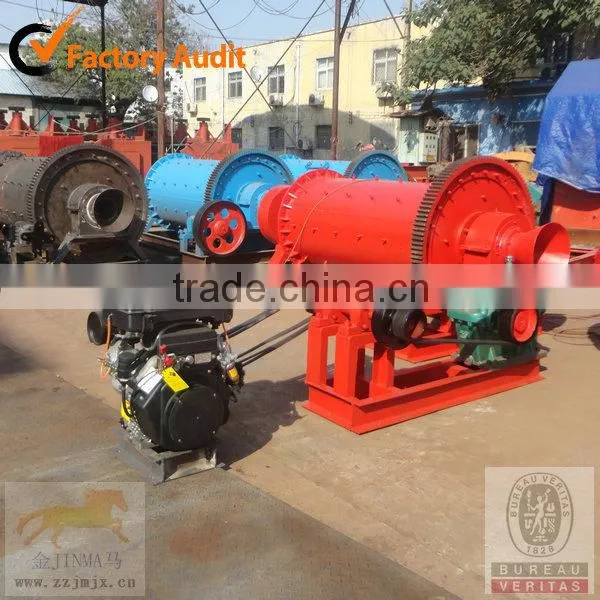

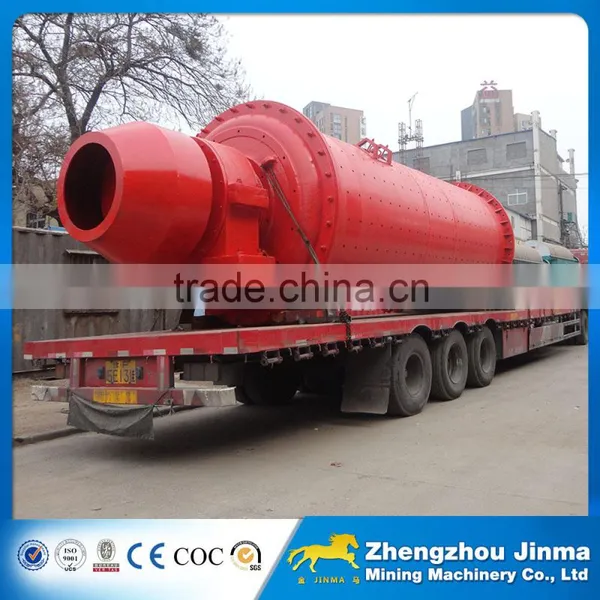

china Advanced Gypsum Grinding Mill Export To Whole World
Gypsum Grinding Mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc. Ball Mill has dry and wet ways.
When wet Gypsum Grinding Mill works, certain water and other liquid will be added into materials to increase flow ability of materials, so the capacity is increased.
When Gypsum Grinding Mill works, capacity is affected because material flow ability is reduced, so absorbing wind device is needed on the outlet of Ball Mill, and then negative pressure is formed in the Ball Mill to increase flowability of material, so the capacity is increased.
Gypsum Grinding Mill technical parameter:
Type |
Rotation speed (r/min) |
Grinding media loading (t) |
Feed size (mm) |
Discharge size(mm) |
Capacity (t/h) |
Power (KW) |
Weight (T) |
Φ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Φ900×3000 |
38 |
2.51 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Φ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30-45 |
12.5 |
Φ1200×3000 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5 |
30-45 |
12.8 |
Φ1200×4500 |
32 |
7 |
≤25 |
0.074-0.4 |
1.6-5.5 |
55 |
13.8 |
Φ1500×3000 |
27 |
8 |
≤25 |
0.074-0.4 |
2-5.8 |
75-90 |
17 |
Φ1500×4500 |
27 |
14 |
≤25 |
0.074-0.4 |
3-6.5 |
90-110 |
21 |
Φ1500×5700 |
27 |
15 |
≤25 |
0.074-0.4 |
3.5-8 |
110-132 |
24.7 |
Φ1830×3000 |
24 |
11 |
≤25 |
0.074-0.4 |
4-10 |
132-180 |
28 |
Φ1830×6400 |
24 |
23 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
Φ1830×7000 |
24 |
25 |
≤25 |
0.074-0.4 |
7.5-17 |
210-245 |
36 |
Φ2200×5500 |
21 |
30 |
≤25 |
0.074-0.4 |
10-22 |
370 |
48 |
Φ2200×6500 |
21 |
31 |
≤25 |
0.074-0.4 |
14-26 |
380 |
50 |
Φ2200×7500 |
21 |
33 |
≤25 |
0.074-0.4 |
15-29 |
475 |
56 |
