Large Capacity Grinding Ball Mill With Forged Steel Balls

Zhengzhou Jinma Mining Machinery Co., Ltd.
5Yrs
Large Capacity Grinding Ball Mill With Forged Steel Balls thumbnail-1
Large Capacity Grinding Ball Mill With Forged Steel Balls thumbnail-2
Large Capacity Grinding Ball Mill With Forged Steel Balls thumbnail-3
Large Capacity Grinding Ball Mill With Forged Steel Balls thumbnail-4
Large Capacity Grinding Ball Mill With Forged Steel Balls thumbnail-5
Large Capacity Grinding Ball Mill With Forged Steel Balls thumbnail-6
Large Capacity Grinding Ball Mill With Forged Steel Balls photo-1
Large Capacity Grinding Ball Mill With Forged Steel Balls photo-2
Large Capacity Grinding Ball Mill With Forged Steel Balls photo-3
Large Capacity Grinding Ball Mill With Forged Steel Balls photo-4
Large Capacity Grinding Ball Mill With Forged Steel Balls photo-5
Large Capacity Grinding Ball Mill With Forged Steel Balls photo-6
US$ 3,000 - 68,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, GZMY series ball mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin qingdao or as required
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Ball Mill, GZMY series ball mill
Motor Type AC Motor
Power(W) 15kw-475kw
Capacity(t/h) 0.5-83
Place of Origin Henan, China
Brand Name Jinma
Model Number MQG
Dimension(L*W*H) Depend on the model
Weight 3.9ton-79ton
Certification ISO9001:2008,CE,SGS
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas



 Large Capacity Grinding Ball Mill With Forged Steel Balls



Product Description

Ball Mill description:

Ball mill is one kind of new high efficient grinding machine. It is mainly composed of feeding part, discharging part, rotary part and driving part. The driving part including reducer, small transmission gear, electrical and electronic control. The energy-saving ball mill is widely used in metallurgy, mining, chemical, cement, construction, industrial and mining industries etc.

Ball mill advantages:

1.Grinding efficiency

2.Saving energy

3.High output

4.Simple designed machine

5.Reasonable structure



Specifications of Ball Mill:



Model

Rotation speed

(r/min)

Grinding media loading

(t)

Feed size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(t)

Φ900×2100

38

1.5

≤15

0.075-0.89

0.5-2

15

3.9

Φ900×2400

38

1.8

≤15

0.075-0.89

0.7-2.8

18.5

4.5

Φ900×3000

38

2.51

≤15

0.075-0.89

0.8-3.5

22

5.0

Φ1200×2400

32

3.8

≤20

0.074-0.4

0.9-4.8

30

9.2

Φ1200×2800

32

4.0

≤20

0.074-0.4

1.0-5.0

30

9.5

Φ1200×3000

32

4.5

≤20

0.074-0.4

1.2-5.6

37

11.5

Φ1200×4500

30

5.5

≤20

0.074-0.4

1.5-6.0

55

13.6

Φ1500×3000

27

7.0

≤25

0.074-0.4

2.5-6.5

75

15.0

Φ1500×3500

27

8.5

≤25

0.074-0.4

3.0-8.2

75

15.6

Φ1500×4500

27

11

≤25

0.074-0.4

4-10

95

21

Φ1500×5700

27

12

≤25

0.074-0.4

4-13

110

23.5

Φ1830×3000

24

12

≤25

0.074-0.4

5-15

130

31

Φ1830×3600

24

13

≤25

0.074-0.4

5-16

130

32

Φ1830×4500

24

14

≤25

0.074-0.4

5-18

155

33.5

Φ1830×7000

24

21

≤25

0.074-0.4

6-20

210

36

Φ2100×3000

24

18

≤25

0.074-0.4

7-26

210

38

Φ2100×3600

24

21

≤25

0.074-0.4

7-35

215

39.5

Φ2100×4500

24

26

≤25

0.074-0.4

8-42

245

43.5

Φ2200×3000

21

28

≤25

0.074-0.4

8-43

245

46

Φ2200×4800

21

35

≤25

0.074-0.4

9-45

285

48

Φ2400×3000

21

23

≤25

0.074-0.4

8-60

285

55

Φ2700×4500

21

48

≤25

0.074-0.4

12-83

475

79



  Ball mill lining board:

 Large Capacity Grinding Ball Mill With Forged Steel Balls

Large Capacity Grinding Ball Mill With Forged Steel Balls

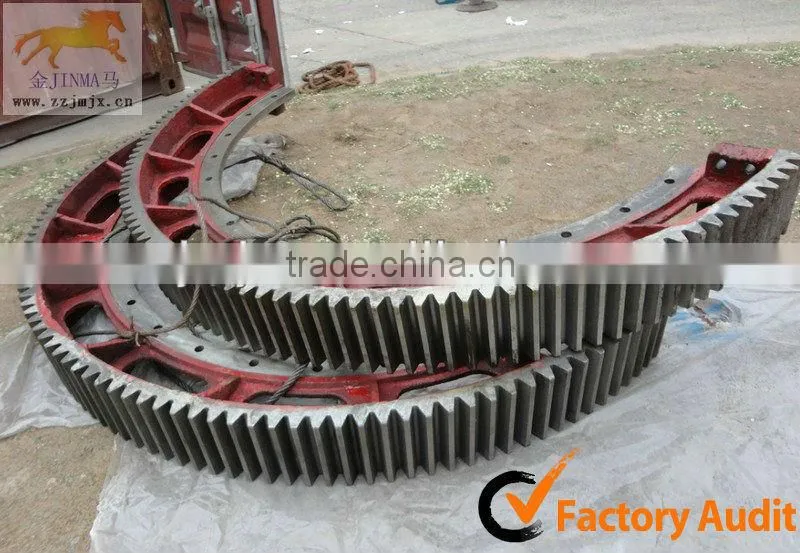

Ball mill gear:

Large Capacity Grinding Ball Mill With Forged Steel Balls



Forged steel balls:

Large Capacity Grinding Ball Mill With Forged Steel Balls

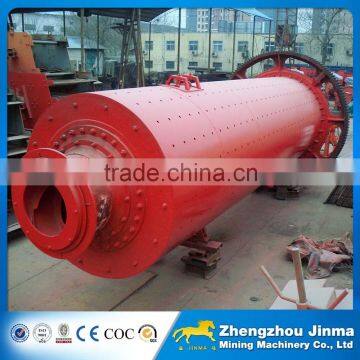

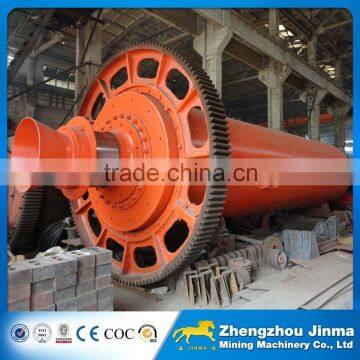

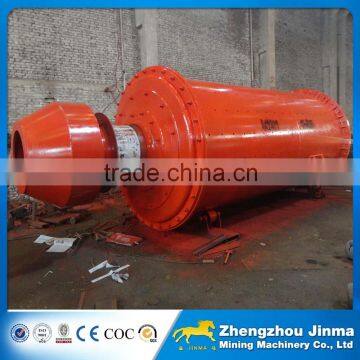

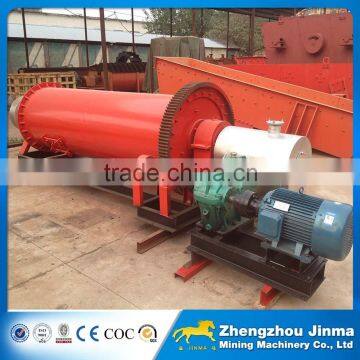

Ball mill photos:

Large Capacity Grinding Ball Mill With Forged Steel BallsLarge Capacity Grinding Ball Mill With Forged Steel Balls

 Large Capacity Grinding Ball Mill With Forged Steel BallsLarge Capacity Grinding Ball Mill With Forged Steel Balls

Packaging & Shipping

1.The continents such as South America, Middle East, Africa, Oceania and Europe Etc, we will send machinery to you by ship.

2.For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc., we can ship construction machinery by road or railway.

3.For light weight of the goods or components, we can also send it by international courier service.



 Large Capacity Grinding Ball Mill With Forged Steel Balls

 Large Capacity Grinding Ball Mill With Forged Steel Balls



Zhengzhou Jinma Mining Machinery Co., Ltd.

Our advantages:



1, More than 30 years of production experience

2, Certificates: ISO9001:2008, BV, SGS

3, Independent Imp. & Exp. Right, R&D center, production base, QC, Marketing and after - sales service department

4, Our products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, one analyst, Indonesia or, Malaysia, India, Philippines, Pakistan, while Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Chesapeake, South Africa, Tanzania, Ghana, etc.

Large Capacity Grinding Ball Mill With Forged Steel Balls

FAQ

Before you buy the equipment, please consider the following questions:



1.What minerals are you separating?

2.What's the maximum size of your raw minerals?

3.How much capacity do you need per hour?



Large Capacity Grinding Ball Mill With Forged Steel Balls

Need more details about energy saving ball mill, please contact:
