Mining Machinery Coal Grinding Mill
Mining Machinery Coal Grinding Mill For Sale

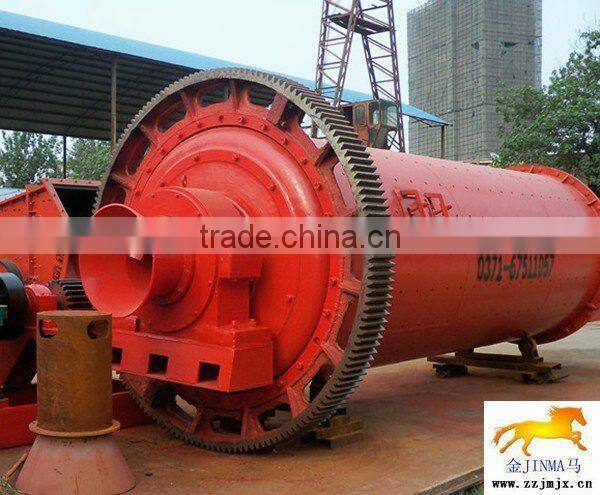

This coal grinding mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.
Grinder Mill(Ball Mill) Working Principle:
The grinder mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft evenly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height to impact and grind the materials. The grinded materials are discharged through the discharging board thus the grinding process is finished.
Grinder Mill Features
1. Stable performance, wearable
2. Equal product size
3. Low invest, low energy consumption
4. Easy and safe operation
Coal Grinding Mill Technical Parameter:
Type |
Rotation speed (r/min) |
Grinding media loading (t) |
Feed size (mm) |
Discharge size(mm) |
Capacity (t/h) |
Power (KW) |
Weight (T) |
Φ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Φ900×3000 |
38 |
2.51 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Φ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30-45 |
12.5 |
Φ1200×3000 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5 |
30-45 |
12.8 |
Φ1200×4500 |
32 |
7 |
≤25 |
0.074-0.4 |
1.6-5.5 |
55 |
13.8 |
Φ1500×3000 |
27 |
8 |
≤25 |
0.074-0.4 |
2-5.8 |
75-90 |
17 |
Φ1500×4500 |
27 |
14 |
≤25 |
0.074-0.4 |
3-6.5 |
90-110 |
21 |
Φ1500×5700 |
27 |
15 |
≤25 |
0.074-0.4 |
3.5-8 |
110-132 |
24.7 |
Φ1830×3000 |
24 |
11 |
≤25 |
0.074-0.4 |
4-10 |
132-180 |
28 |
Φ1830×6400 |
24 |
23 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
Φ1830×7000 |
24 |
25 |
≤25 |
0.074-0.4 |
7.5-17 |
210-245 |
36 |
Φ2200×5500 |
21 |
30 |
≤25 |
0.074-0.4 |
10-22 |
370 |
48 |
Φ2200×6500 |
21 |
31 |
≤25 |
0.074-0.4 |
14-26 |
380 |
50 |
Φ2200×7500 |
21 |
33 |
≤25 |
0.074-0.4 |
15-29 |
475 |
56 |

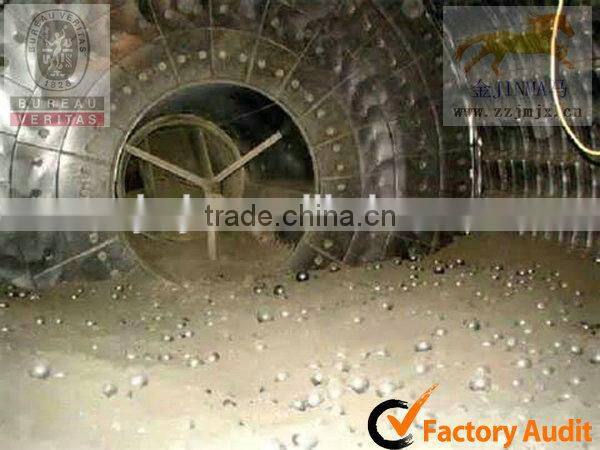

Coal Grinding Mill grinding media show:

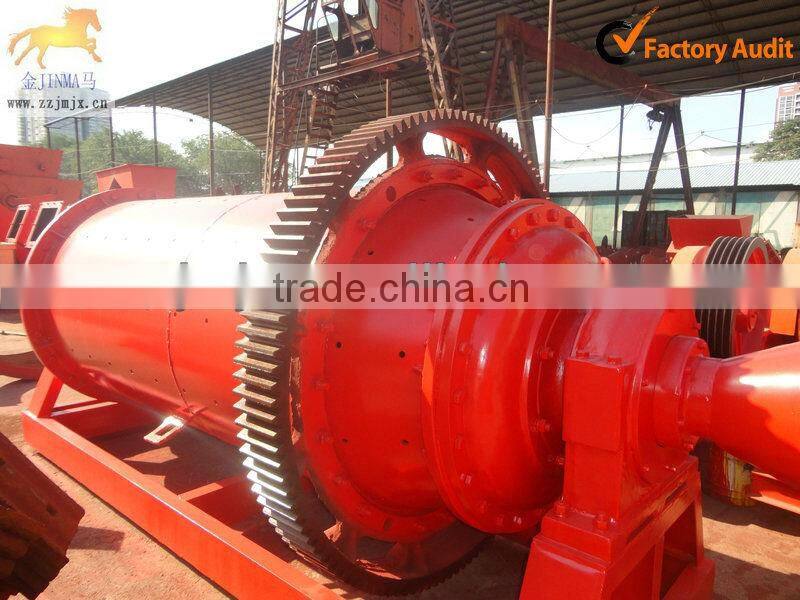

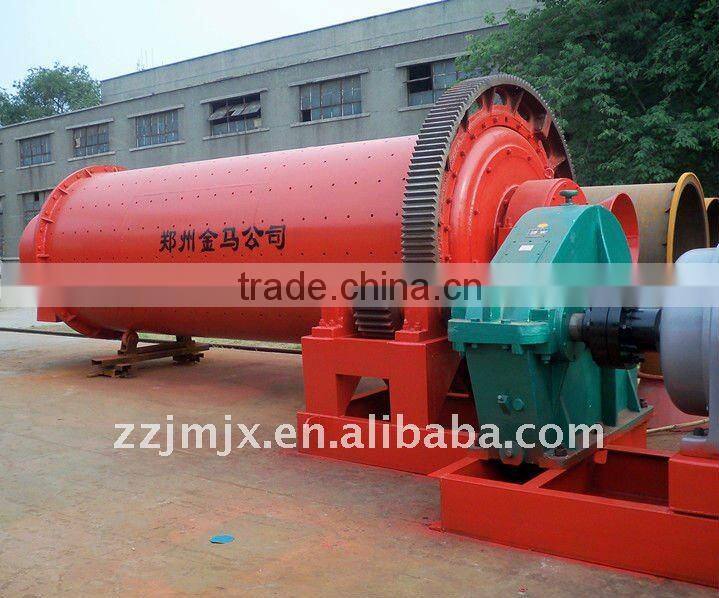

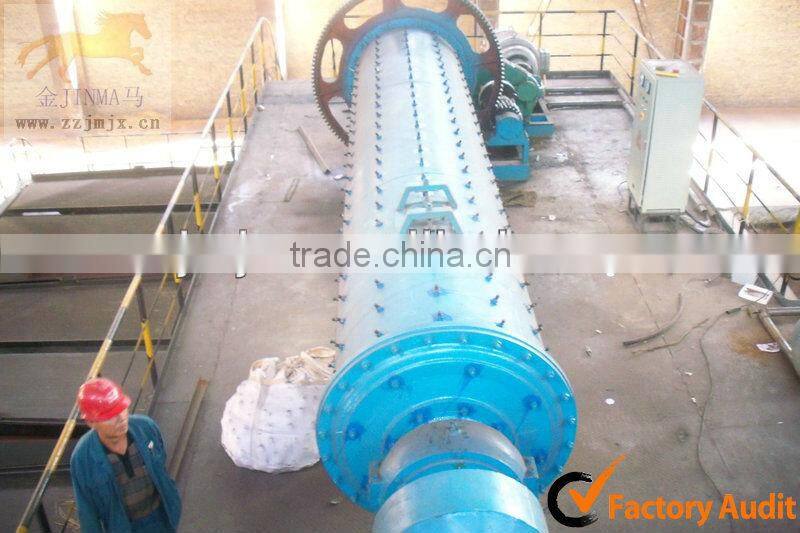

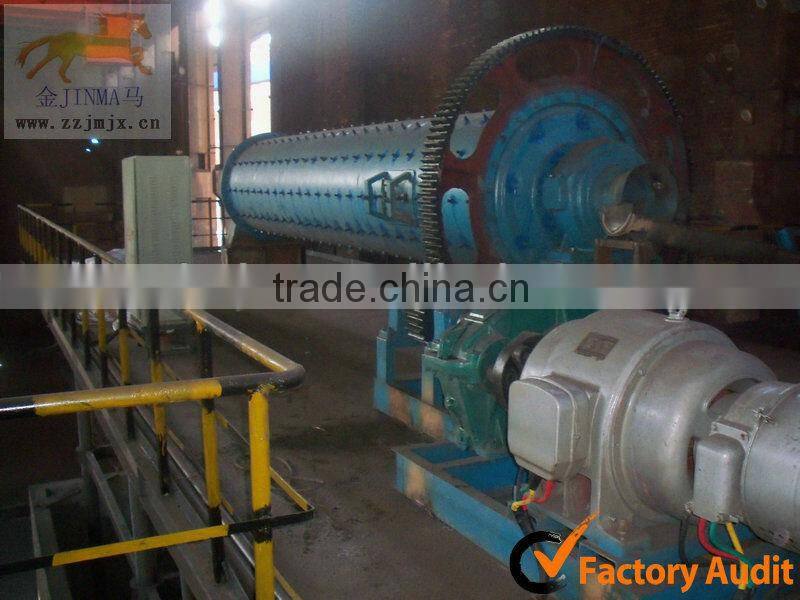

Coal Grinding Mill on working site:

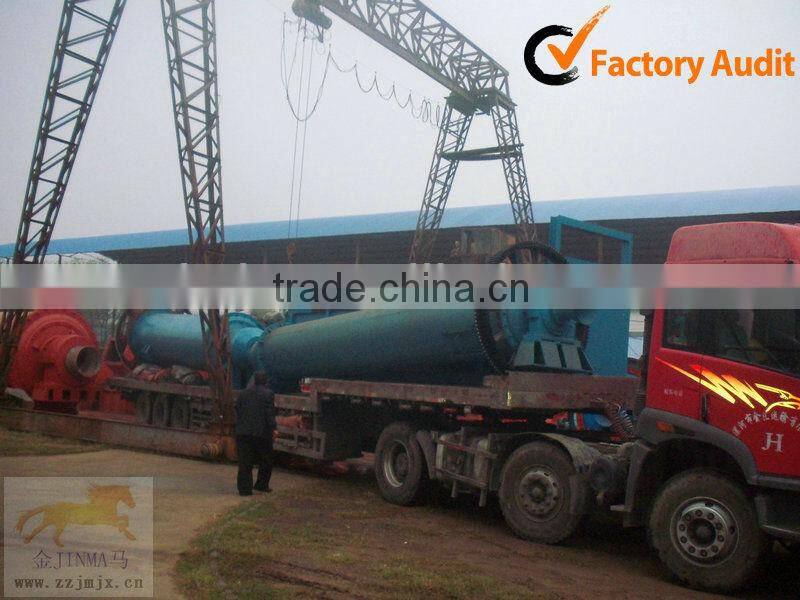

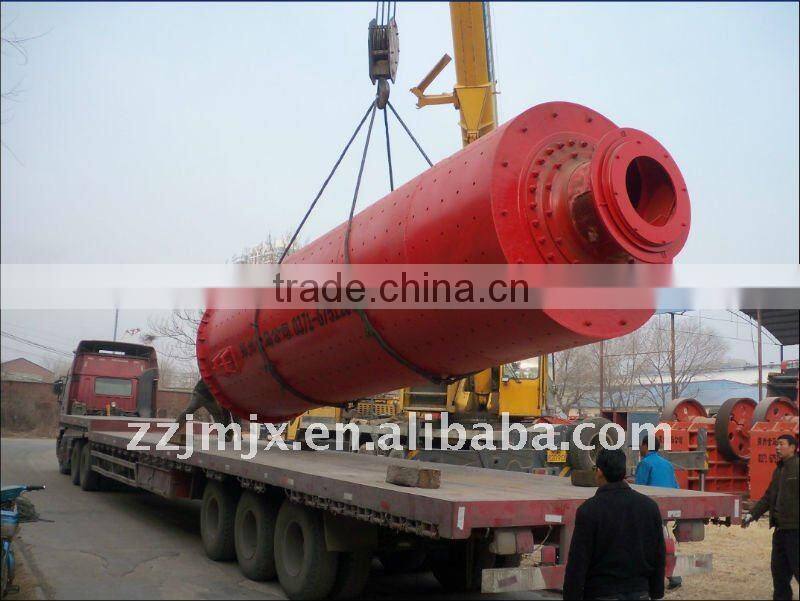

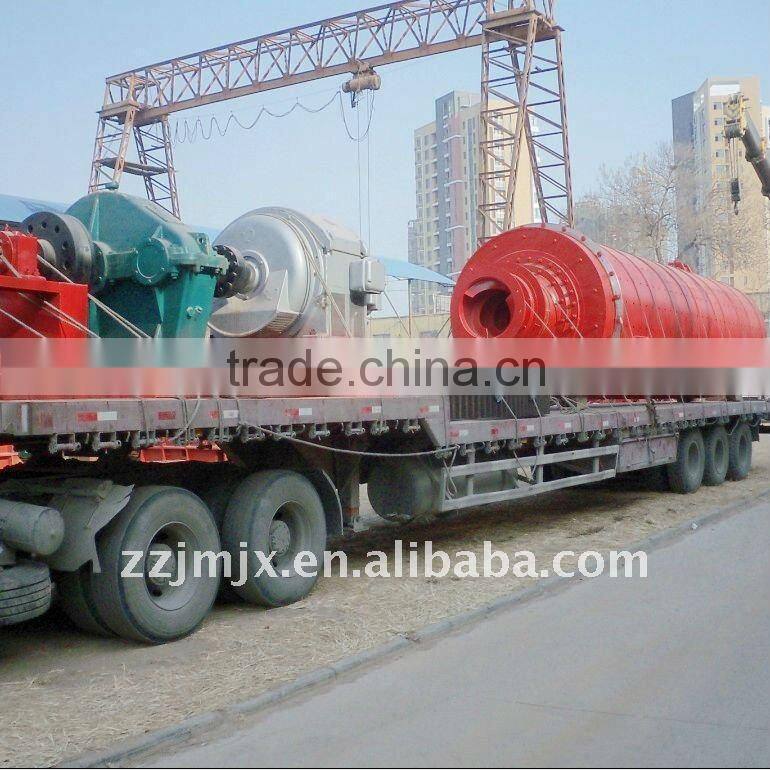

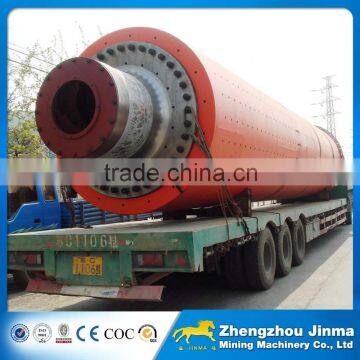

Coal Grinding Mill Loading Container:
1. Pre-sale service: We can provide you with project design, process design, suitable purchase program for your equipment.
2. Sale service: We will accompany you to visit our factory and all kinds of machinery and equipment if you come here, also show you construction plan and assist in the development process in detail.
3. After Sale service: We will send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Basic Information of Our Company
1. We have more than 30 years of production experience for high quality machine.
2. Certificates: ISO9001:2008, BV, SGS.
3. Our company have independent Imp. & Exp. Right, R&D center, production base, QC, Marketing and after - sales service department.
4. Our products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia or, Malaysia, India, Philippines, Pakistan, while Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Chesapeake, South Africa, Tanzania, Ghana, etc.

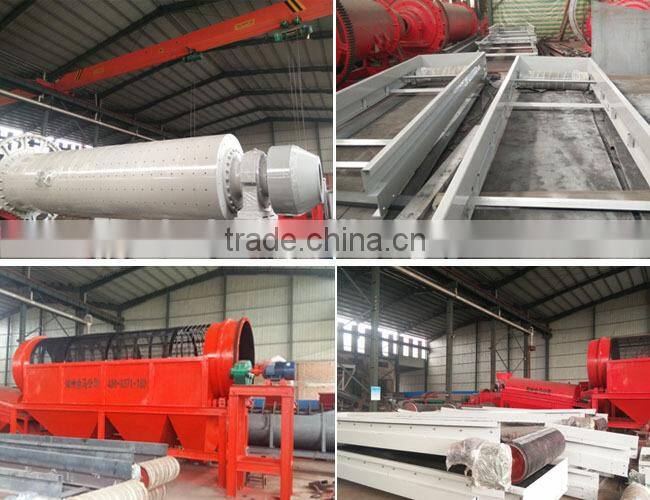

1. Our Factory & Workshop
2. Our Certificate: we have passed the ISO 9001,2008, BV, SGS certificate
3. Our Clients Show From All Over The World
