hot sell Jinma mining slag rock grinding Rod Mill
- 80 Set / Sets per Month
- Qingdao Tianjing Shanghai or as request
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 110000 | Capacity(t/h): | 3.6-11 t/h | Place of Origin: | Henan, China |
Brand Name: | jinma | Model Number: | HS-1545 Rod mill | Dimension(L*W*H): | 3400X2000X2300 |
Weight: | 9.5T | Certification: | ISO90012008, BV, CE, SGS | Warranty: | two years |
After-sales Service Provided: | Engineers available to service machinery overseas |

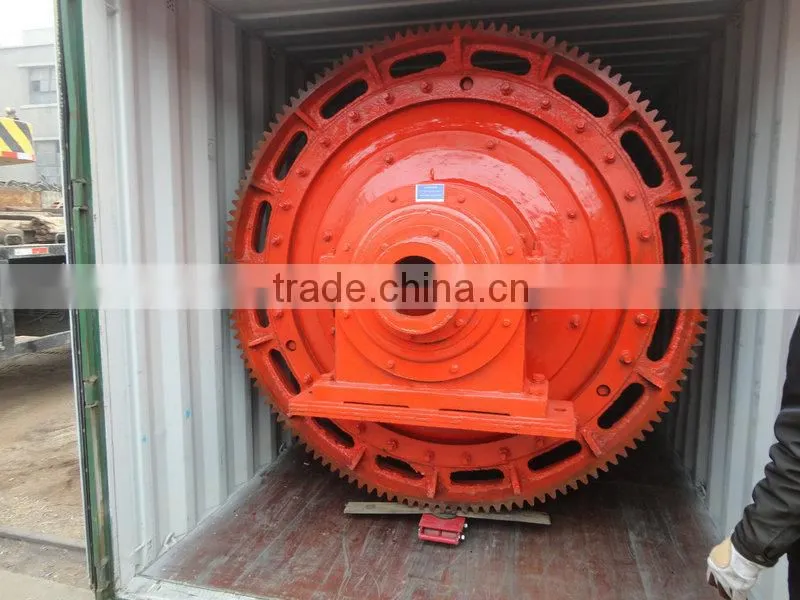

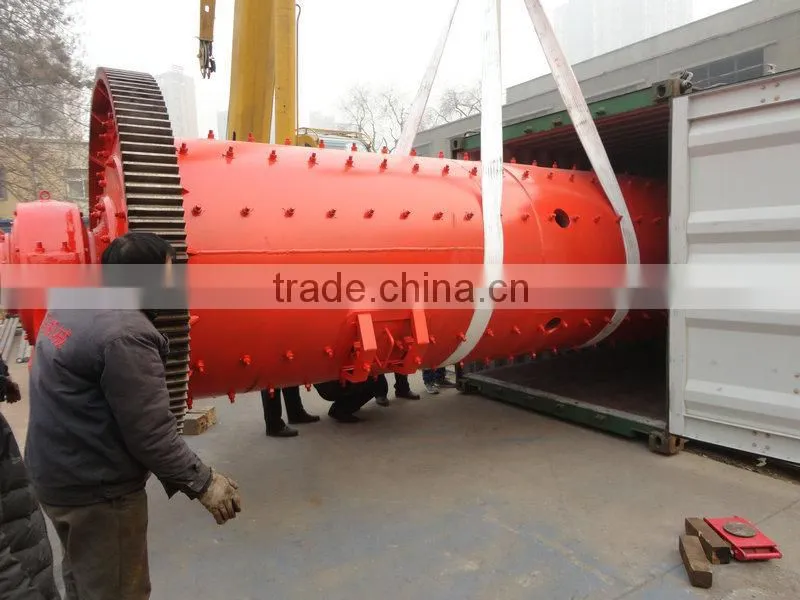

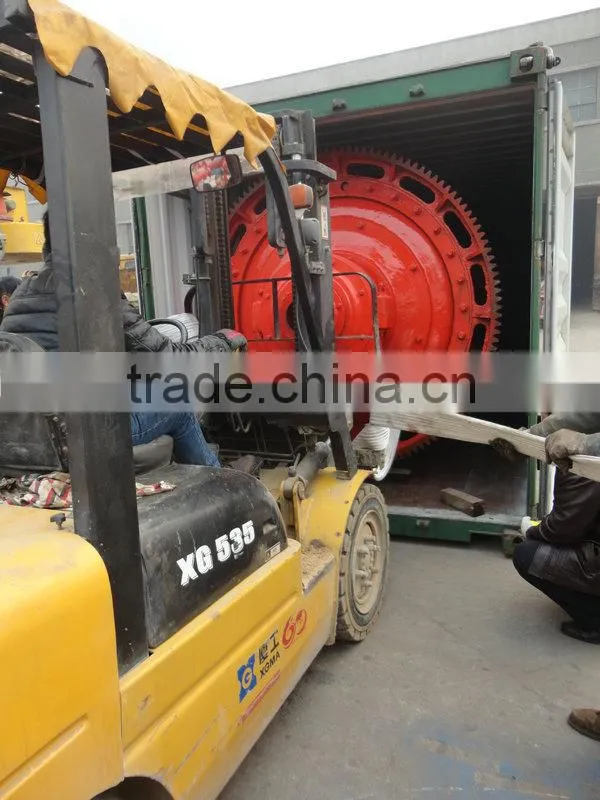

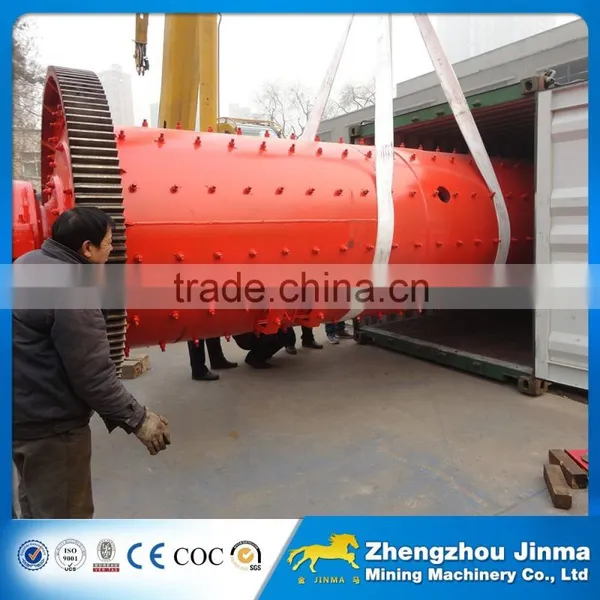

Packaging Details
In nude machine, loaded container at factory.
Product Description
hot sell Jinma mining slag rock grinding, Rod Mill
Application of Rod Mill:
It is applied to metal and nonmetalmine, water conservancy and glass building materials grinding various ore, rockand artificial sand which needs product granularity evenly. Theenergy-efficient rod mill that our company produces is all that rolling bearingsupport instead of bearing bush slip bearing support. It will save 10-20%energy compared with slip bearing support and improve production capacity by10-20%. It uses grease replacing dilute oil lubricating station.
Technical Parameter of Rod Mill
Model | drum diameter (mm) | drum length(mm) | Feed size(mm) | Discharge size(mm) | Capacity (t ) | Power(KW) | Weight(KG) |
HS-0930 | 900 | 3000 | 6-25 | 0-5 | 3-8 | 22 | 4500 |
HS-1224 | 1200 | 2400 | 6-25 | 0-5 | 5-25 | 45 | 12000 |
HS-1245 | 1200 | 4500 | 6-25 | 0-5 | 6-35 | 55 | 13800 |
HS-1530 | 1500 | 3000 | 6-25 | 0-5 | 7-45 | 90 | 17000 |
HS-1545 | 1500 | 4500 | 6-25 | 0-5 | 3.6-11 | 110 | 21500 |
HS-1557 | 1500 | 5700 | 6-25 | 0-5 | 10-85 | 132 | 24700 |
HS-1860 | 1800 | 6000 | 6-30 | 0-5 | 20-100 | 210 | 34000 |
HS-2136 | 2100 | 3600 | 6-40 | 0-5 | 30-110 | 215 | 45000 |

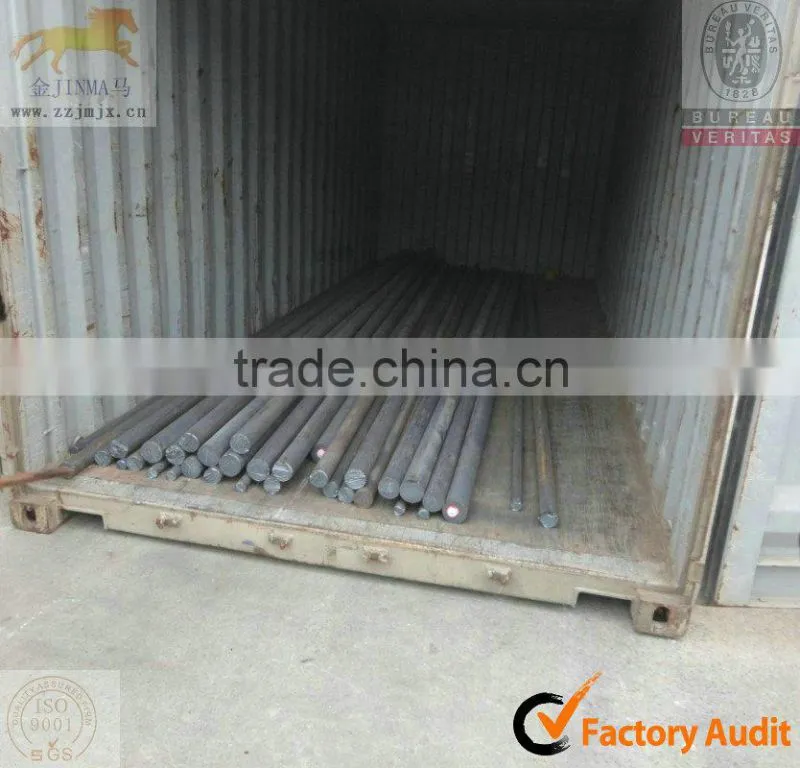

Steel rod for rod mill:

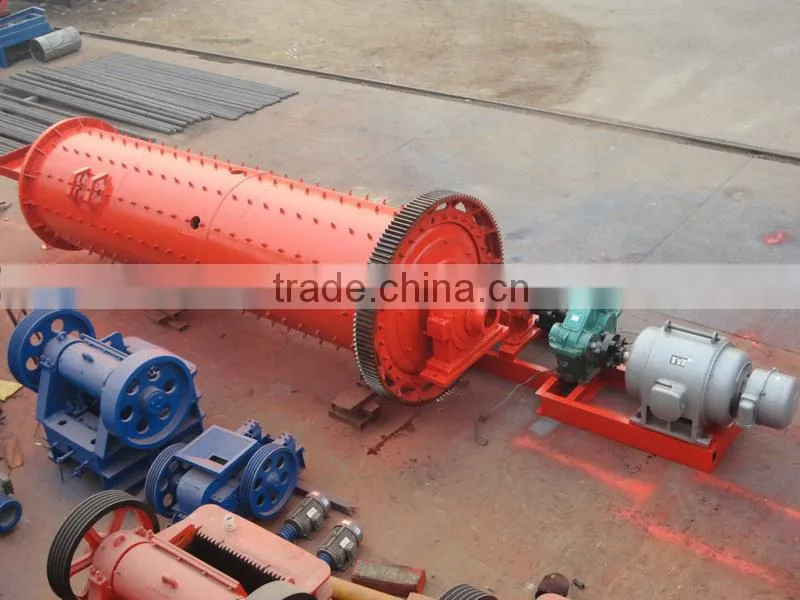

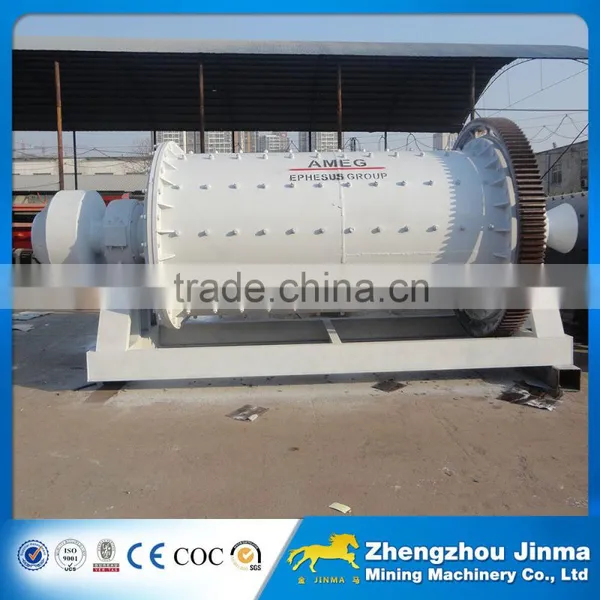

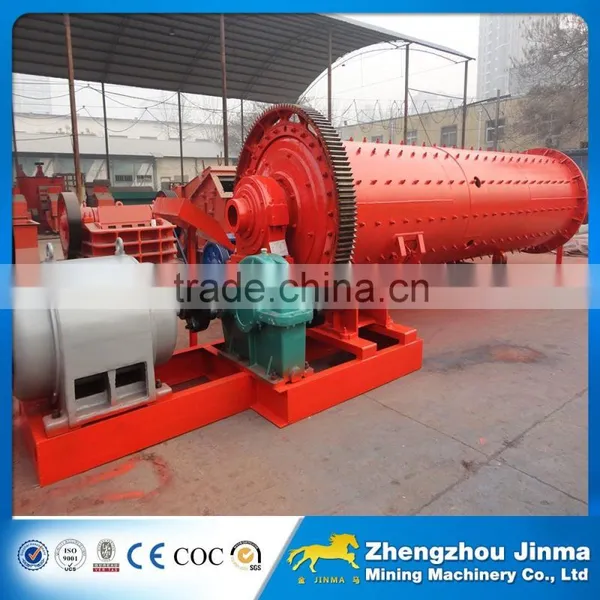

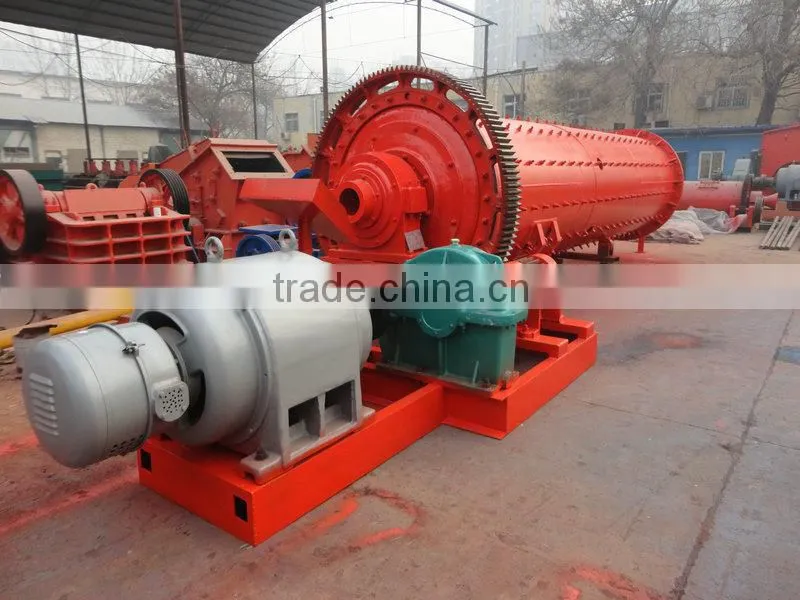

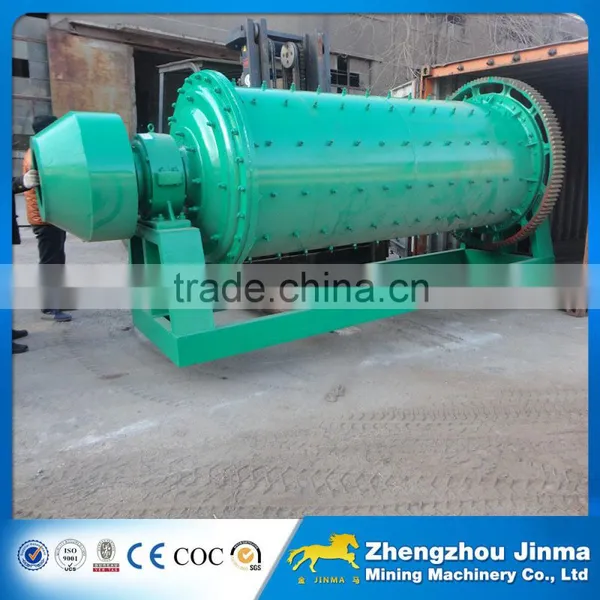

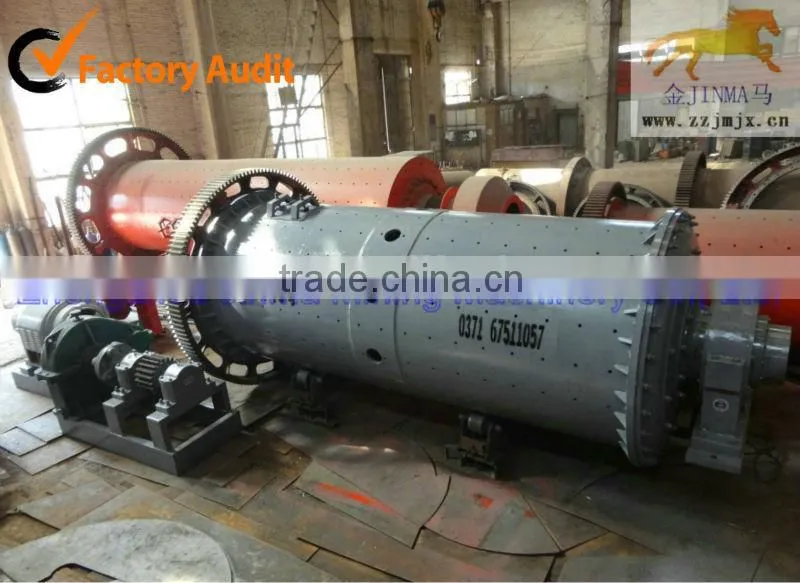

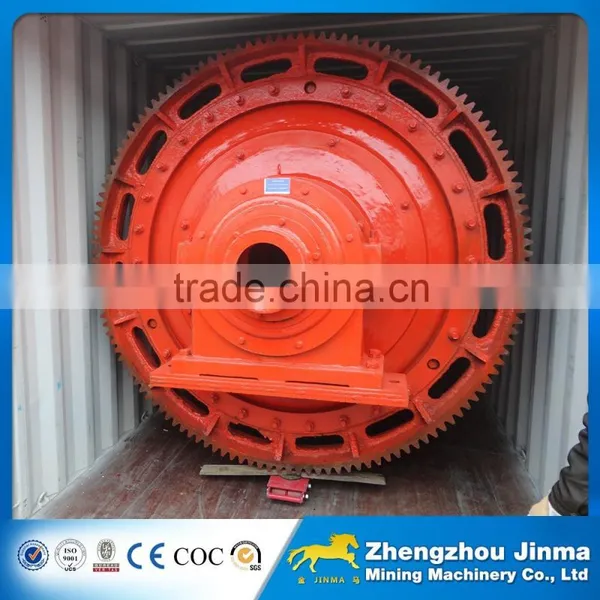

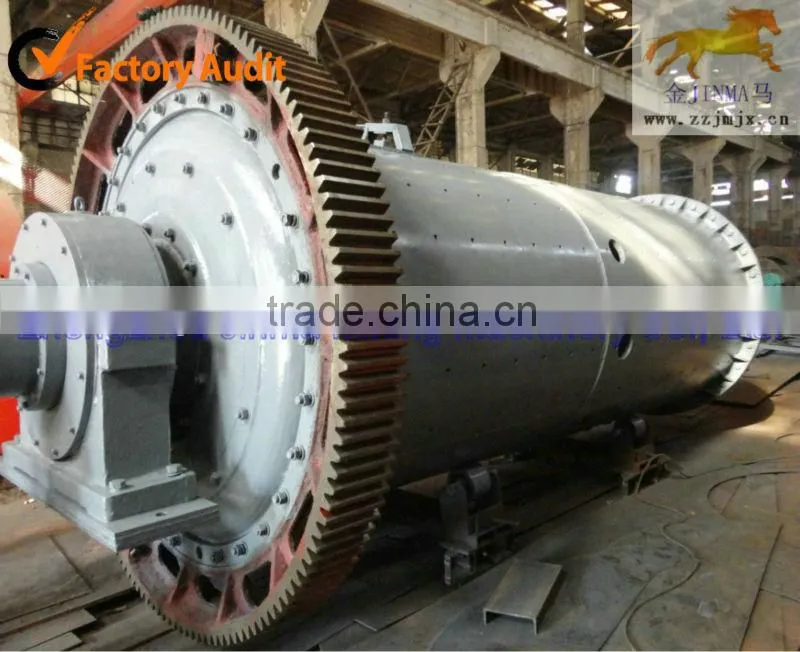

Rod mill from Zhengzhou Jinma:
Structures of Rod Mill
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.
Advantages of Rod Mill:
The grindingmill does not need allocate high price high or low pressure lubricating station.The grinding mill with diameter above 2700mmcan adopt high pressure electrical machinery, pneumatic clutch, big gear oilspray lubricating and slow speed driving device for maintain. The productioncapacity differs significa
ntly due to material kind, feed size and dischargesize.

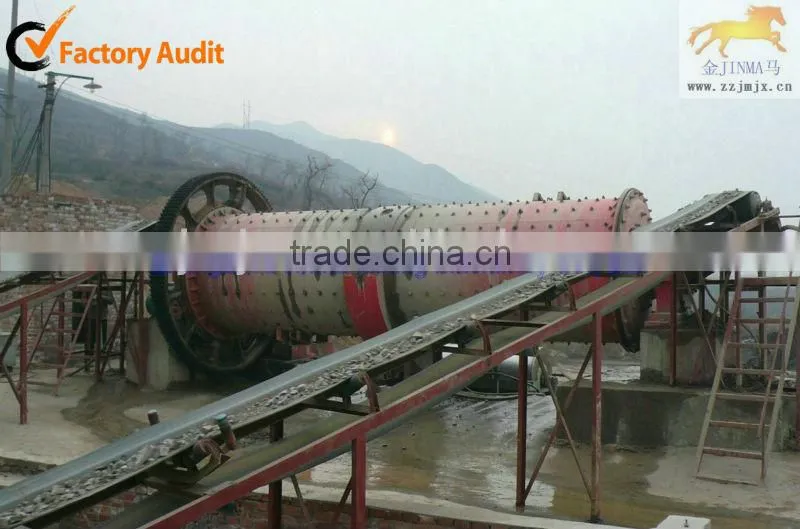

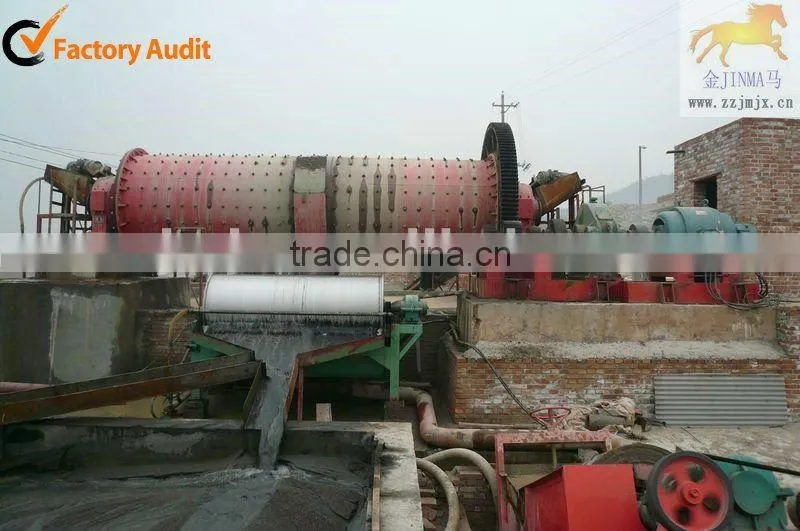

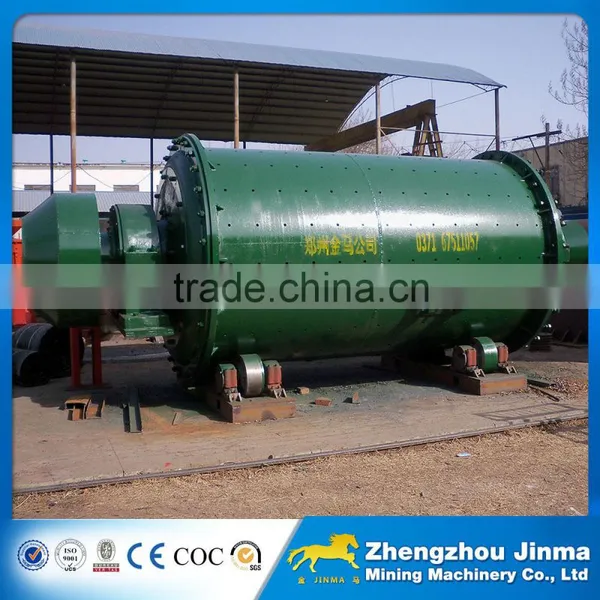

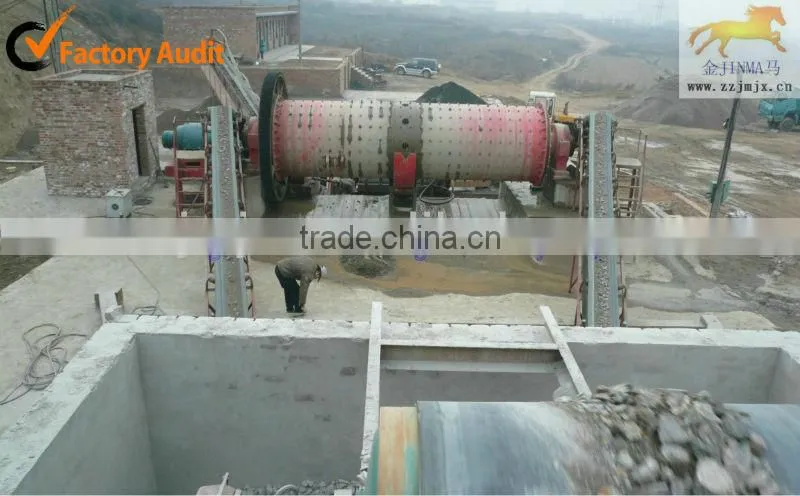

Rod mill working site from our customer:
Working Principle of Rod Mill
1. The cylinder of the rod mill is drived rotationg by the motor and surrounding large gear on the surface of the grinding machine .
2. The material was promoted to a certain height, and then fall down
3. Materials is send into the barrel inside by the feed mouth ,and then is grinded by the rod.
4. The product is out by the continuous power.
Zhengzhou Jinma mining machinery
Company development:Established in 1976 .
Company Tenet: Clients' interests first, quality first, after-sales service first
Company spirit:Founding Integrity, Innovation Forever
Company philosophy: Jinma makes employees as fundamental, as quality to development, improve benefit by management, with innovation to develop market, in good faith to famous brand and use good service to make development.
Company strategy: Advanced, scientific, novelty and practicability.
Company Goal:We manufacture lean products, To provide higher quality products to customers more high-quality service.

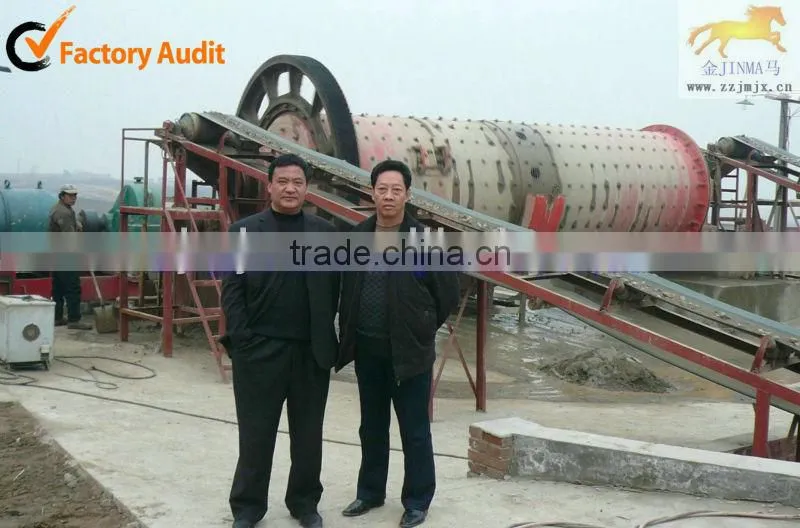

Our customers:
For more details, please contact me:
Rita Xin
Skype: ritaxlj
Whatsapp: +86-15736788101
Company Profile
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Located in No. 8 Dianchang Road, Zhengzhou and covers an area of 3500 square meters, the company's total annual sales reached one hundred and fifty million RMB, with annual export sales about six million USD.
Crushing equipments includes jaw crusher, impact crusher, PCZ single-stage hammer crusher, DPC single-stage fine crusher, PXJ fine crusher (Third generation sand making machine), PC hammer crusher, PCH ring hammer crusher, PCL vertical composite crusher, and roller crusher. These equipments are applicable to construction, metallurgy, building material, mineral processing, coal mine, etc.
Mineral processing equipments includes MQG ball mill, MQS ball mill, GZMY energy-saving ball mill, MQGZ super energy-saving ball mill, MQGT super energy-saving ball mill, MQGMC super energy-saving ball mill, spiral classifier, flotation machines, magnetic separator, rotary dryer, etc. All the equipments are applicable to the beneficiation of iron, copper, gold, silver, lead, zinc, tungsten, molybdenum, manganese and other non-ferrous concentrating.
The company has passed ISO9001: 2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. It has independent Imp. & Exp. right, R&D center, production base, QC, Marketing and after-sales service department.
While expanding domestic market constantly, the products are exported to over 70 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
With the goal of "The excellence, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win-win cooperation.
