High Efficiency Ball Mill Machine for Sale
Application of Ball Mill Machine:
The ball mill machine is a key equipment to grind the crushed materials, and the ball mill is widely used in powder making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Working Principle of Ball Mill Machine:
The ball mill machine is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to acertain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Features of Ball Mill Machine:
(1). Ball mill machine is easy maintenance and operation;
(2). Big crushing ratio, uniform end product size;
(3). Simple structure;
(4). Low operating cost.
Technical Parameters of Ball Mill Machine:
Model |
Rotation speed (r/min) |
Grinding media loading(t) |
Feed size(mm) |
Discharge size(mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Φ900×2100 |
38 |
1.5 |
≤15 |
0.075-0.89 |
0.5-2 |
15 |
3.9 |
Φ900×2400 |
38 |
1.8 |
≤15 |
0.075-0.89 |
0.7-2.8 |
18.5 |
4.5 |
Φ900×3000 |
38 |
2.51 |
≤15 |
0.075-0.89 |
0.8-3.5 |
22 |
5.0 |
Φ1200×2400 |
32 |
3.8 |
≤20 |
0.074-0.4 |
0.9-4.8 |
30 |
9.2 |
Φ1200×2800 |
32 |
4.0 |
≤20 |
0.074-0.4 |
1.0-5.0 |
30 |
9.5 |
Φ1200×3000 |
32 |
4.5 |
≤20 |
0.074-0.4 |
1.2-5.6 |
37 |
11.5 |
Φ1200×4500 |
30 |
5.5 |
≤20 |
0.074-0.4 |
1.5-6.0 |
55 |
13.6 |
Φ1500×3000 |
27 |
7.0 |
≤25 |
0.074-0.4 |
2.5-6.5 |
75 |
15.0 |
Φ1500×3500 |
27 |
8.5 |
≤25 |
0.074-0.4 |
3.0-8.2 |
75 |
15.6 |
Φ1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
4-10 |
95 |
21 |
Φ1500×5700 |
27 |
12 |
≤25 |
0.074-0.4 |
4-13 |
110 |
23.5 |
Φ1830×3000 |
24 |
12 |
≤25 |
0.074-0.4 |
5-15 |
130 |
31 |
Φ1830×3600 |
24 |
13 |
≤25 |
0.074-0.4 |
5-16 |
130 |
32 |
Φ1830×4500 |
24 |
14 |
≤25 |
0.074-0.4 |
5-18 |
155 |
33.5 |
Φ1830×7000 |
24 |
21 |
≤25 |
0.074-0.4 |
6-20 |
210 |
36 |
Φ2100×3000 |
24 |
18 |
≤25 |
0.074-0.4 |
7-26 |
210 |
38 |
Φ2100×3600 |
24 |
21 |
≤25 |
0.074-0.4 |
7-35 |
215 |
39.5 |
Φ2100×4500 |
24 |
26 |
≤25 |
0.074-0.4 |
8-42 |
245 |
43.5 |
Φ2200×3000 |
21 |
28 |
≤25 |
0.074-0.4 |
8-43 |
245 |
46 |
Φ2200×4800 |
21 |
35 |
≤25 |
0.074-0.4 |
9-45 |
285 |
48 |
Φ2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
8-60 |
285 |
55 |
Φ2700×4500 |
21 |
48 |
≤25 |
0.074-0.4 |
12-83 |
475 |
79 |

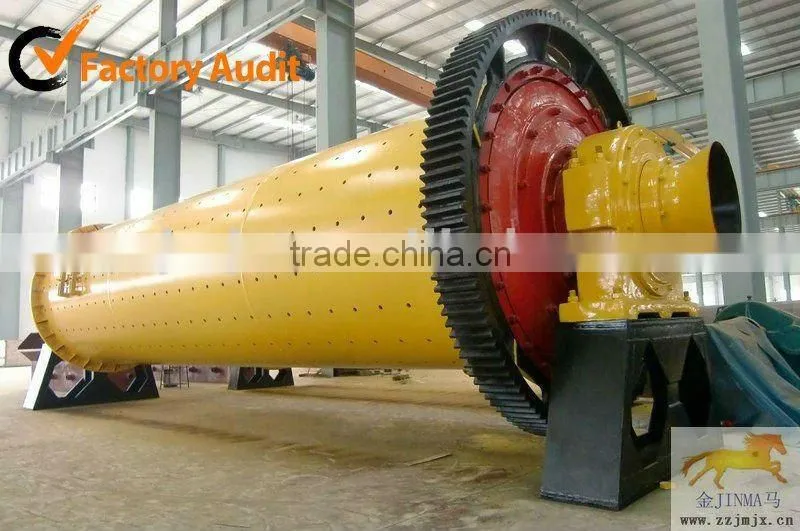

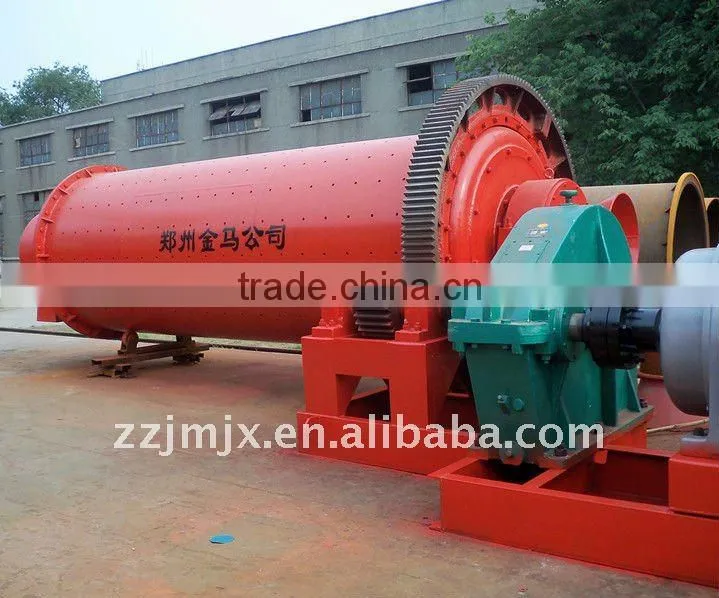

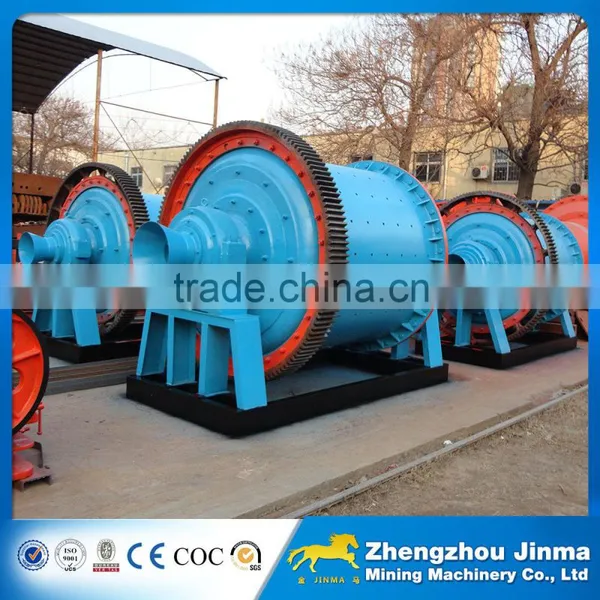

Jinma Ball Mill Machine Show:

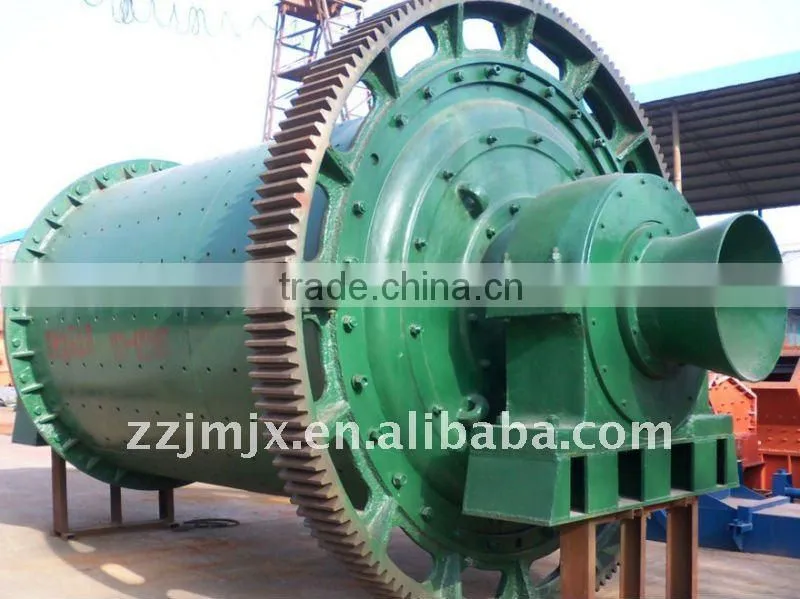

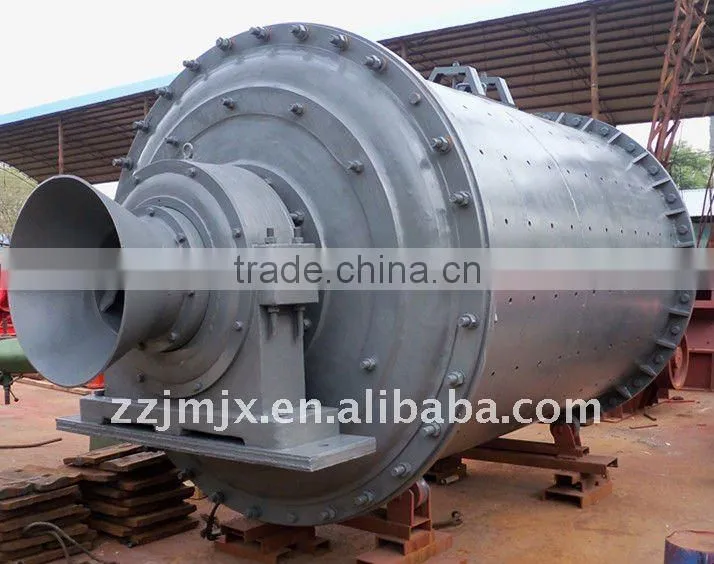

Ball Mill Machine details:high manganese steel liners and ABB brand motor

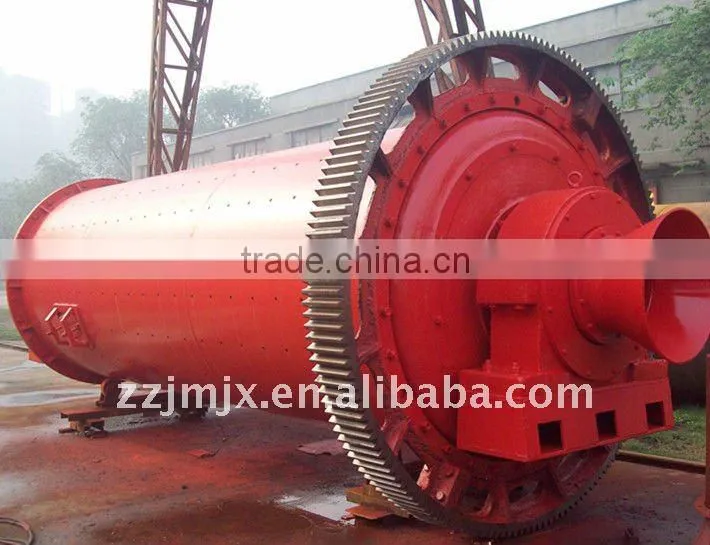

Ball Mill Machine delivery from our factory:
Before-sale service:
(1). Introduce the product to customer in detail, answer the question raised by customer carefully.
(2). Make plans for choice according to the needs and special requirements of users in different sectors.
Sale service:
(1).Company ensures that product is delivered on time with high quality.
(2).we sends technicians to the jobsite for guiding the installation and adjustment, assisting in the check& acceptance of products, offering technique explaining and training for operators and maintainers for free.
After-sales service:
(1) During the installation and commissioning, we shall send our technician to the site for guiding the installation and commissioning.
(2) During the installation and commissioning, we offer training service
(3)We offer the components with favorable price, perdurable maintenance. After quality assurance date, if the equipments need to be repaired, we only collect the cost price.
- Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines.
Our company has passed ISO9001: 2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. It has independent Imp. & Exp. right, R&D center, production base, QC, Marketing and after-sales service department.
Our products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
Company & Clients:
