Hot Sale Cement Ball Mill For Cement Plant
Features of Cement Ball Mill:
1) Size reduction of various materials.
2) Feed sizes of 25mm to product sizes of 0-400mesh.
3) Wet type or dry type grinding.
4) Continuous grinding process.
5) Mineral processing.
6) Environmental grinding.
Widely Used Cement Ball Mill:
Cement ball mill is composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control.
Application of Cement Ball Mill:
Cement ball mill is the key equipment for smash the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grind able materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.
Working Principle of Cement Ball Mill:
When the ball mill turning, there are centrifugal force and force of friction between grinding medium and the plate in the rotary body wall. And the grinding medium will rotate with rotary body to a certain height. Then it will fall freely under gravity, whereabouts of grinding medium, like a projectile impact the material at the bottom to smaller size. In addition, grinding medium also generates sliding and rolling in the rotary process. So we can get fine powder in the process.
Technical Parameter of Cement Ball Mill:
Model |
Rotation speed (r/min) |
Grinding media loading(t) |
Feed size(mm) |
Discharge size(mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Φ900×2100 |
38 |
1.5 |
≤15 |
0.075-0.89 |
0.5-2 |
15 |
3.9 |
Φ900×2400 |
38 |
1.8 |
≤15 |
0.075-0.89 |
0.7-2.8 |
18.5 |
4.5 |
Φ900×3000 |
38 |
2.51 |
≤15 |
0.075-0.89 |
0.8-3.5 |
22 |
5.0 |
Φ1200×2400 |
32 |
3.8 |
≤20 |
0.074-0.4 |
0.9-4.8 |
30 |
9.2 |
Φ1200×2800 |
32 |
4.0 |
≤20 |
0.074-0.4 |
1.0-5.0 |
30 |
9.5 |
Φ1200×3000 |
32 |
4.5 |
≤20 |
0.074-0.4 |
1.2-5.6 |
37 |
11.5 |
Φ1200×4500 |
30 |
5.5 |
≤20 |
0.074-0.4 |
1.5-6.0 |
55 |
13.6 |
Φ1500×3000 |
27 |
7.0 |
≤25 |
0.074-0.4 |
2.5-6.5 |
75 |
15.0 |
Φ1500×3500 |
27 |
8.5 |
≤25 |
0.074-0.4 |
3.0-8.2 |
75 |
15.6 |
Φ1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
4-10 |
95 |
21 |
Φ1500×5700 |
27 |
12 |
≤25 |
0.074-0.4 |
4-13 |
110 |
23.5 |
Φ1830×3000 |
24 |
12 |
≤25 |
0.074-0.4 |
5-15 |
130 |
31 |
Φ1830×3600 |
24 |
13 |
≤25 |
0.074-0.4 |
5-16 |
130 |
32 |
Φ1830×4500 |
24 |
14 |
≤25 |
0.074-0.4 |
5-18 |
155 |
33.5 |
Φ1830×7000 |
24 |
21 |
≤25 |
0.074-0.4 |
6-20 |
210 |
36 |
Φ2100×3000 |
24 |
18 |
≤25 |
0.074-0.4 |
7-26 |
210 |
38 |
Φ2100×3600 |
24 |
21 |
≤25 |
0.074-0.4 |
7-35 |
215 |
39.5 |
Φ2100×4500 |
24 |
26 |
≤25 |
0.074-0.4 |
8-42 |
245 |
43.5 |
Φ2200×3000 |
21 |
28 |
≤25 |
0.074-0.4 |
8-43 |
245 |
46 |
Φ2200×4800 |
21 |
35 |
≤25 |
0.074-0.4 |
9-45 |
285 |
48 |
Φ2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
8-60 |
285 |
55 |
Φ2700×4500 |
21 |
48 |
≤25 |
0.074-0.4 |
12-83 |
475 |
79 |
Dry Type Cement Ball Mill:
Increase contact surface and strength, high efficiency grinding
Cement Ball Mill grinding media:steel balls,steel forging,ceramic balls
Cement Ball Mill liners:
The longer the milling time, the small the output size will be.

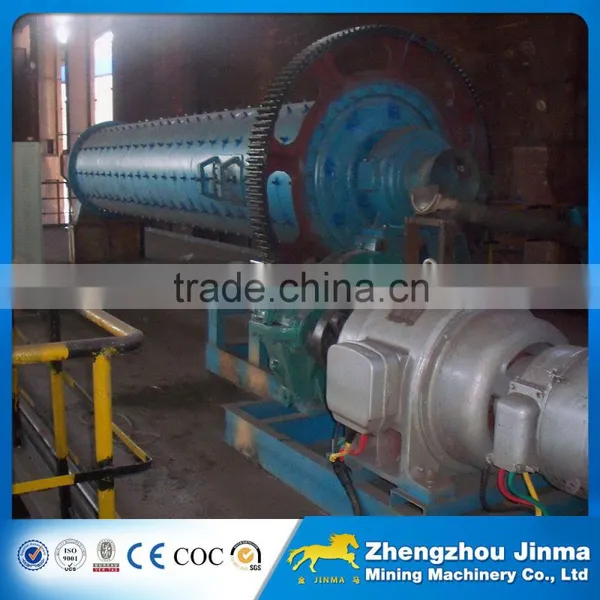

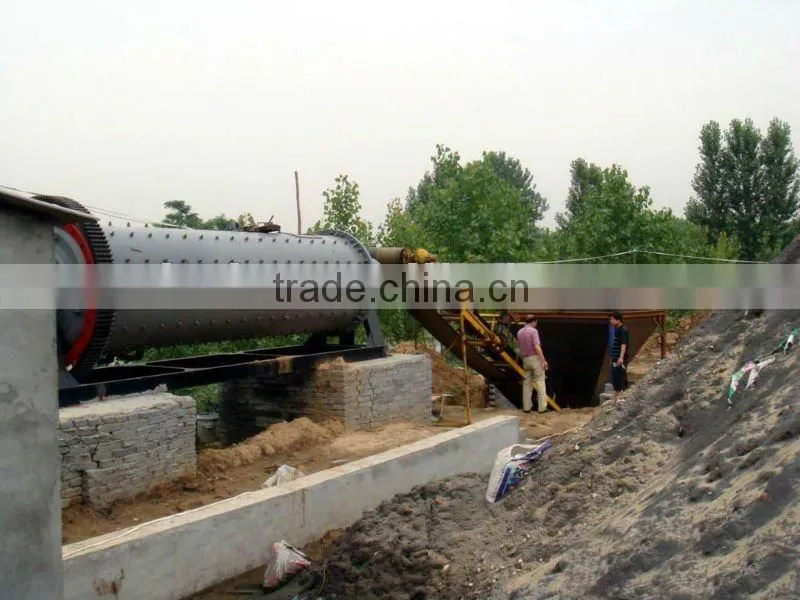

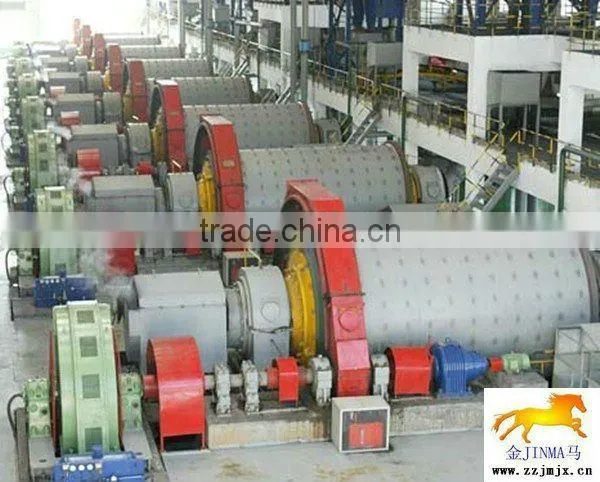

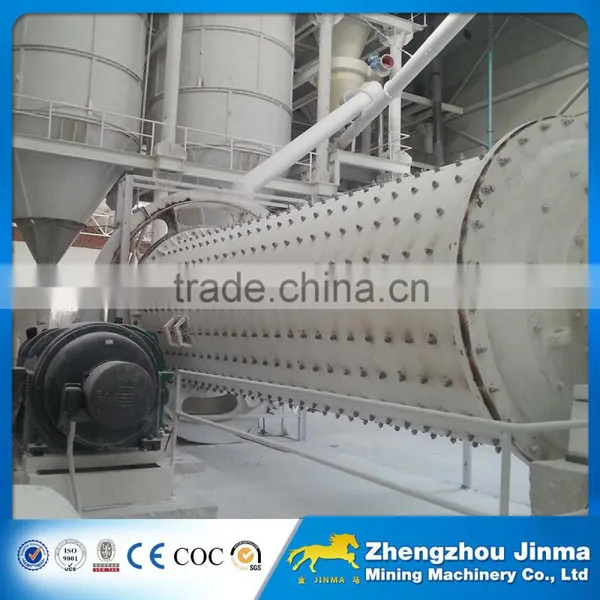

Cement Ball Mill on site:
Cement Ball Mill(stone grinder machine) parts show:bearing mill and bearing pad mill
