Wet and dry type gold mining ball mill for sale
- 80 Set / Sets per Month
- Qingdao Tianjing Shanghai or as request
- T/T L/C D/P D/A Credit Card PayPal
-
China Continuous Grinding Mill Glass Ceramic Ball Mill
-
Ball Mill For Grinding Stones,Ores,Cement, Glass Ceramics
-
Save energy ball grinding mill for ore mining
-
Hot Sale Cement Ball Mill For Cement Plant
-
High efficiency ball mill machine for sale
-
small output size ore ball mill grinding for beneficiation production line
Supplier's Choice
Product Details
| Condition: | New | Type: | Other, Ball Mill, Gold mining ball mill | Motor Type: | AC Motor |
| Power(W): | 18.5KW-1600KW | Capacity(t/h): | 0.6-90 | Place of Origin: | Henan, China |
| Brand Name: | Jinma | Model Number: | GZMY series gold mining ball mill | Dimension(L*W*H): | Depend on the model |
| Weight: | 3.9 ton-94 ton | Certification: | ISO9001:2008, BV , CE, SGS | Warranty: | 18 month |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard container, bare machine and spare parts are packed in wooden cases.
Product Description
Features of Gold Mining Ball Mill:
1) Size reduction of various materials.
2) Feed sizes of 25mm to product sizes of 0-400mesh.
3) Wet type or dry type grinding.
4) Continuous grinding process.
5) Mineral processing.
6) Environmental grinding.
Widely Used Gold Mining Ball Mill:
Cement ball mill is composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control.
Application of Ball Grinding Mill:
Cement ball mill is the key equipment for smash the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grind able materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.
Working Principle of Gold Mining Ball Mill:
When the ball mill turning, there are centrifugal force and force of friction between grinding medium and the plate in the rotary body wall. And the grinding medium will rotate with rotary body to a certain height. Then it will fall freely under gravity, whereabouts of grinding medium, like a projectile impact the material at the bottom to smaller size. In addition, grinding medium also generates sliding and rolling in the rotary process. So we can get fine powder in the process.
Technical Parameter of Gold Mining Ball Mill:
Model | Rotation speed (r/min) | Grinding media loading(t) | Feed size(mm) | Discharge size(mm) | Capacity (t/h) | Power (kw) | Weight (t) |
Φ900×2100 | 38 | 1.5 | ≤15 | 0.075-0.89 | 0.5-2 | 15 | 3.9 |
Φ900×2400 | 38 | 1.8 | ≤15 | 0.075-0.89 | 0.7-2.8 | 18.5 | 4.5 |
Φ900×3000 | 38 | 2.51 | ≤15 | 0.075-0.89 | 0.8-3.5 | 22 | 5.0 |
Φ1200×2400 | 32 | 3.8 | ≤20 | 0.074-0.4 | 0.9-4.8 | 30 | 9.2 |
Φ1200×2800 | 32 | 4.0 | ≤20 | 0.074-0.4 | 1.0-5.0 | 30 | 9.5 |
Φ1200×3000 | 32 | 4.5 | ≤20 | 0.074-0.4 | 1.2-5.6 | 37 | 11.5 |
Φ1200×4500 | 30 | 5.5 | ≤20 | 0.074-0.4 | 1.5-6.0 | 55 | 13.6 |
Φ1500×3000 | 27 | 7.0 | ≤25 | 0.074-0.4 | 2.5-6.5 | 75 | 15.0 |
Φ1500×3500 | 27 | 8.5 | ≤25 | 0.074-0.4 | 3.0-8.2 | 75 | 15.6 |
Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 4-10 | 95 | 21 |
Φ1500×5700 | 27 | 12 | ≤25 | 0.074-0.4 | 4-13 | 110 | 23.5 |
Φ1830×3000 | 24 | 12 | ≤25 | 0.074-0.4 | 5-15 | 130 | 31 |
Φ1830×3600 | 24 | 13 | ≤25 | 0.074-0.4 | 5-16 | 130 | 32 |
Φ1830×4500 | 24 | 14 | ≤25 | 0.074-0.4 | 5-18 | 155 | 33.5 |
Φ1830×7000 | 24 | 21 | ≤25 | 0.074-0.4 | 6-20 | 210 | 36 |
Φ2100×3000 | 24 | 18 | ≤25 | 0.074-0.4 | 7-26 | 210 | 38 |
Φ2100×3600 | 24 | 21 | ≤25 | 0.074-0.4 | 7-35 | 215 | 39.5 |
Φ2100×4500 | 24 | 26 | ≤25 | 0.074-0.4 | 8-42 | 245 | 43.5 |
Φ2200×3000 | 21 | 28 | ≤25 | 0.074-0.4 | 8-43 | 245 | 46 |
Φ2200×4800 | 21 | 35 | ≤25 | 0.074-0.4 | 9-45 | 285 | 48 |
Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 8-60 | 285 | 55 |
Φ2700×4500 | 21 | 48 | ≤25 | 0.074-0.4 | 12-83 | 475 | 79 |

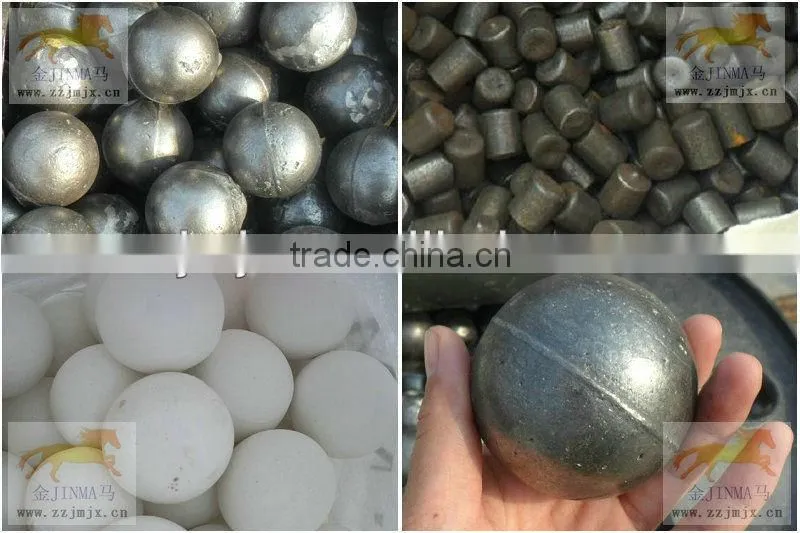

Ball Grinding Mill grinding media:steel balls,steel forging,ceramic balls

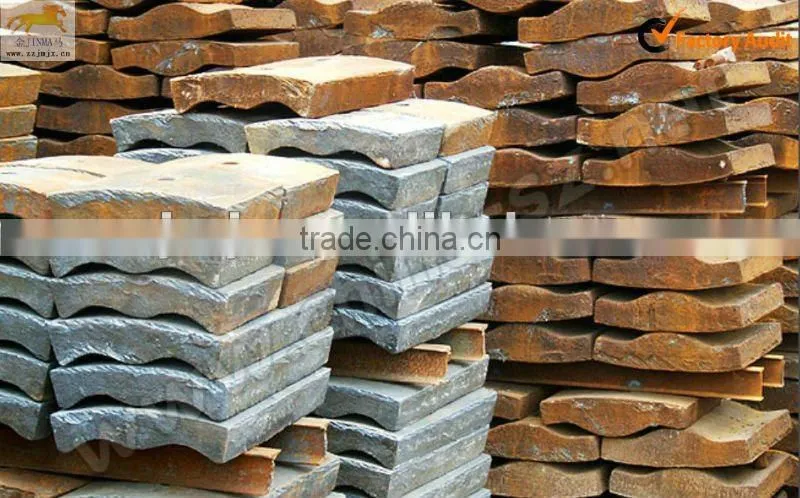

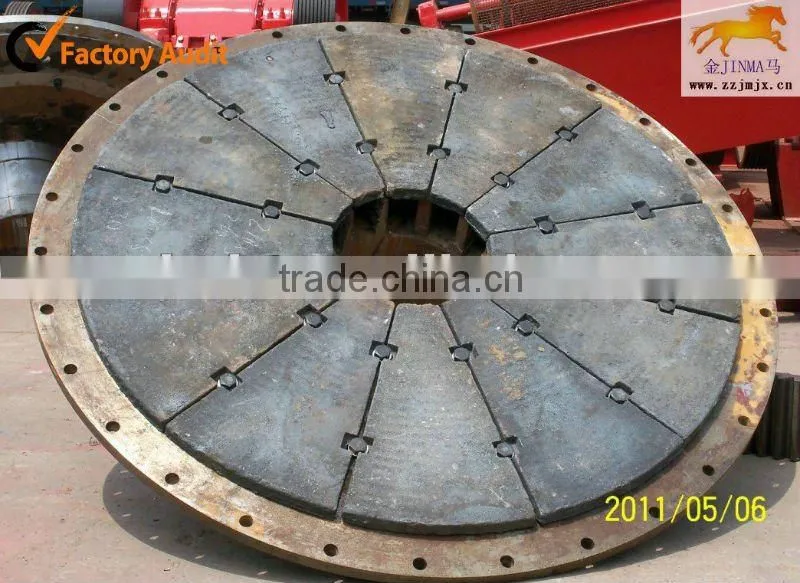

Ball Grinding Mill liners:
The longer the milling time, the small the output size will be.

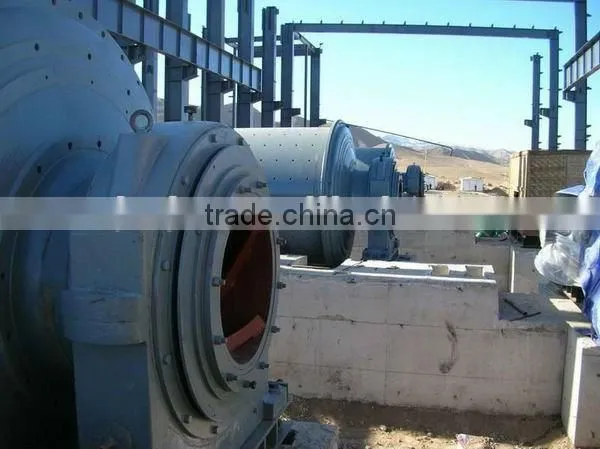

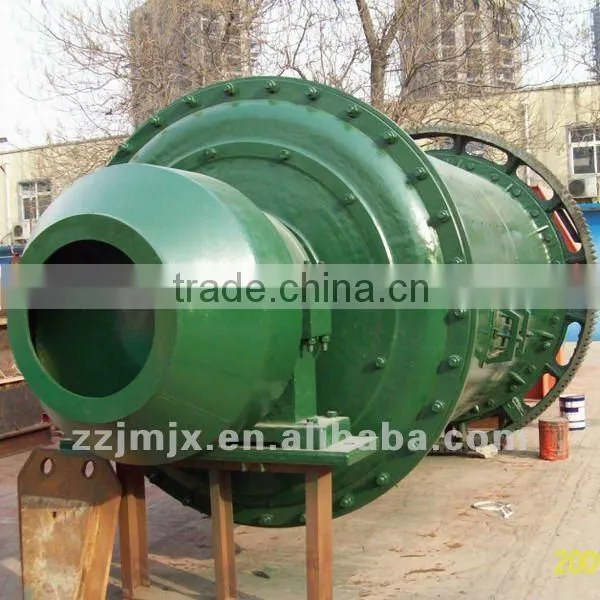

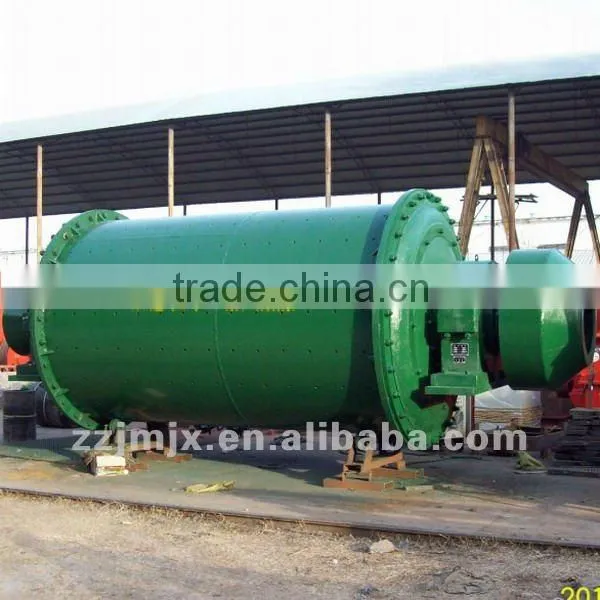

Gold Mining Ball Mill on site:
Ball Grinding Mill(stone grinder machine) parts show:bearing mill and bearing pad mill

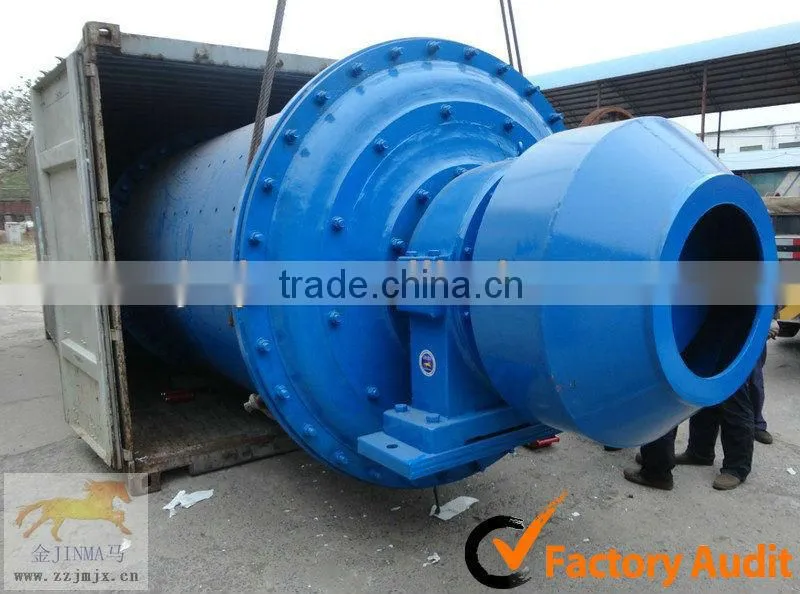

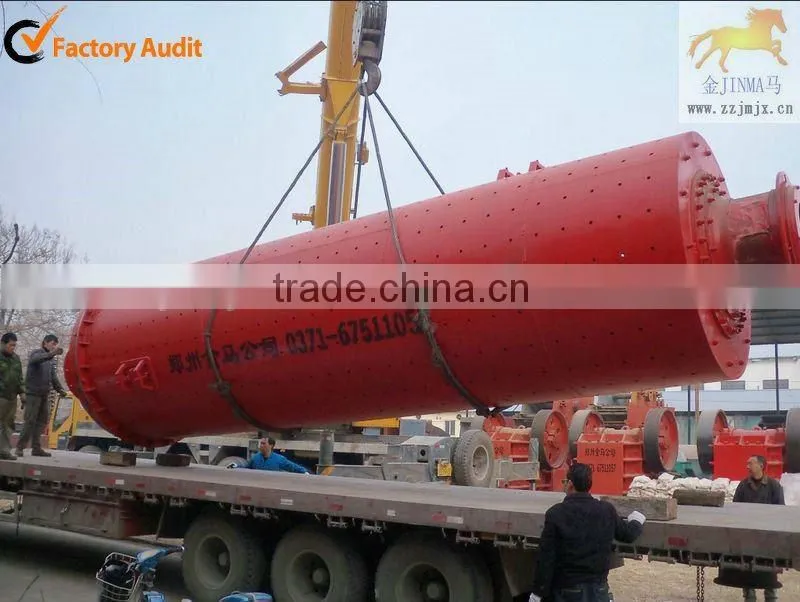

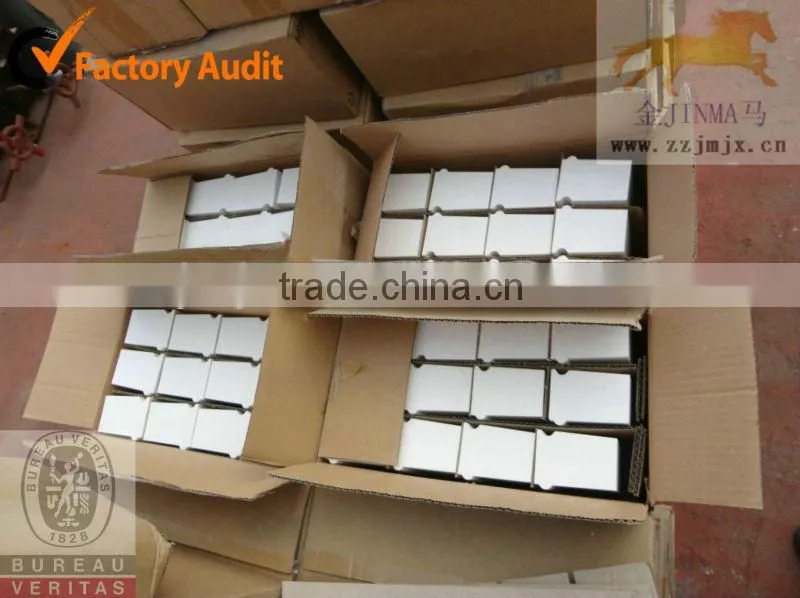

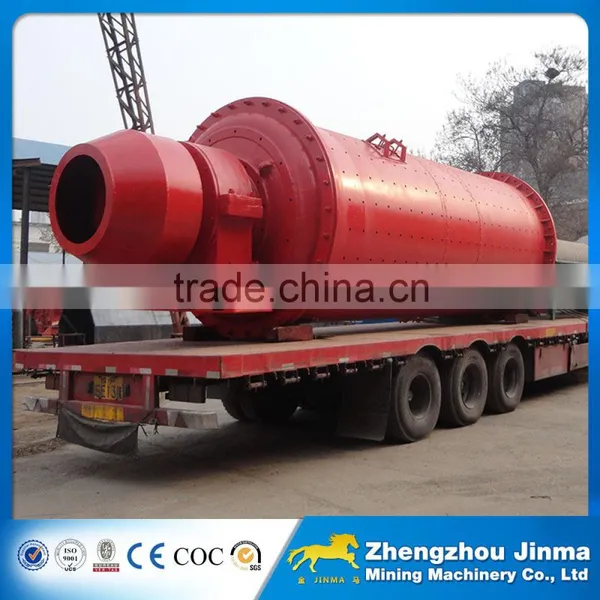

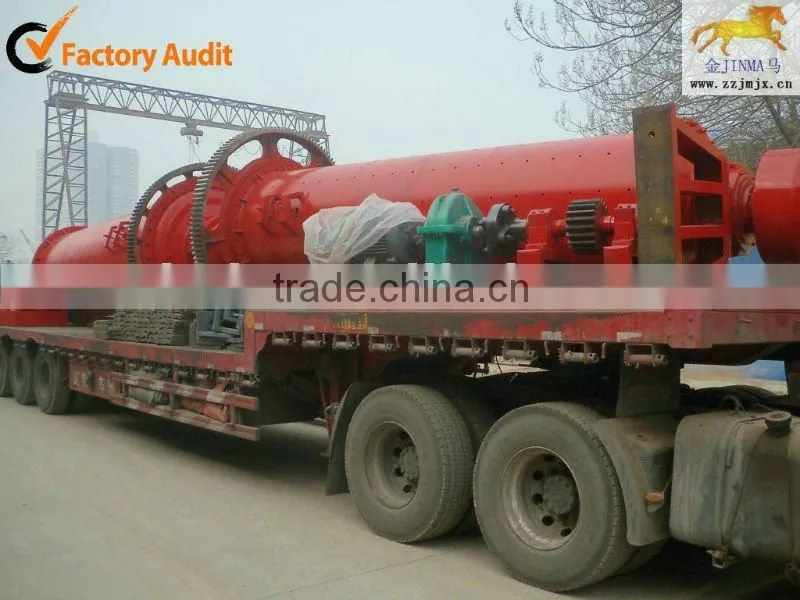

Packing Details:
Our Company & Clients:
Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
Q: What guarantee do you provide?
A: If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
Q: Can I visit your factory ?
A: Of course, There are many domestic and international clients visit our factory every year.
Q: Do you have other related products ?
A: Yes, we manufacture large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines.
For more details,welcome to contact us at any time!
