Excellent performance:
•New polymer membrane filtration technology
•Selectivity characteristics of polymer membrane is core technology.
•Oil-water separating is easy.
•High precision and deep filtration
•Guarantee the cleanness index of diesel oil
•Improve the efficiency of the engine
•Prolong engine service life
•The cost of filtration is low

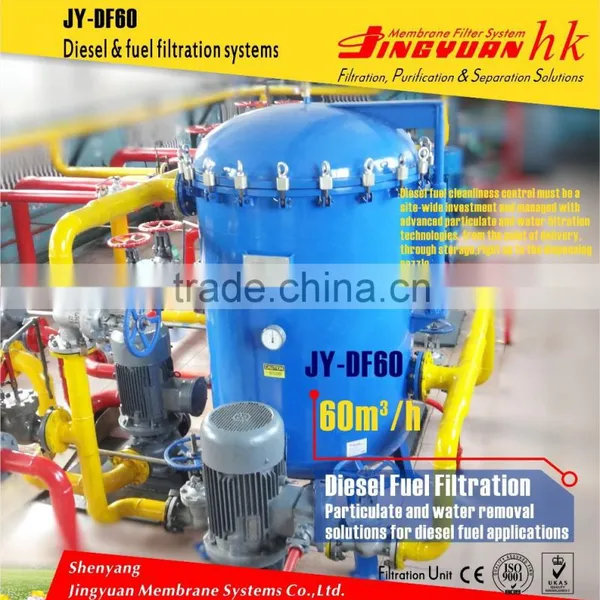

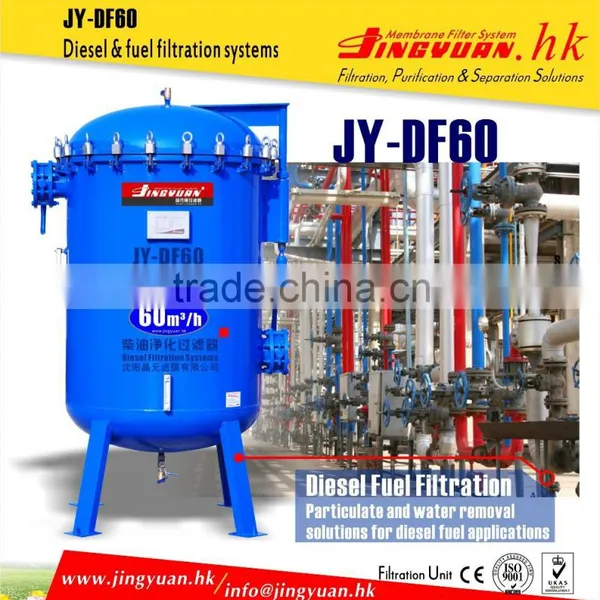

| Technical Parameters | 1 | Model Number | JY-DF60 |
| 2 | Working Pressure | 0.2~0.35Mpa | |
| 3 | Flow Rate | 60m3/h | |
| 4 | Filtration Precision | 2,5,10,15,25μm | |
| 5 | Filtration Material | HDPE,PA | |
| 6 | Applicative Oil | Light Diesel Oil | |
| 7 | Chemical Resistance | Widely Chemical Compatibility | |
| 8 | Type of Filter element | J30-970S | |
| 9 | End Flanges | DN80~DN125 | |
| 10 | Dimension | 1260×1150×2230mm | |
| 11 | Weight | 632KG | |
| 12 | Service Life of Filter Element | 2~3 Year | |
| 13 | Warranty for Main Engine | 1 Year | |
| Functional Characteristics | 1 | High flow diesel purification filter | |
| 2 | Minimum mechanical flow resistance | ||
| 3 | Polymer membrane filter | ||
| 4 | Deep filtration | ||
| 5 | High interception rate | ||
| 6 | Oil-water separation | ||
| 7 | Quick opening lid, safely and quickly, easy to maintain | ||
| 8 | Made of high quality thick steel plate, anti-corrosion treatment | ||
| 9 | Stainless steel tanks can be customized | ||
| 10 | Tank passes pressure test | ||
| 11 | Filter can be back flushed and maintained | ||
| 12 | Convenient operation of the drain valve | ||
| 13 | Convenient repair and maintenance | ||
| 14 | Low operating cost | ||
| 15 | Design life is more than 20 years (except for filter element) | ||
| Principle | Selectivity characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated. | ||
| Application | Mining, construction, large generating units, engineering machinery, oil refinery, oil depot, dock, railway locomotive gas stations, military industry, electric power, oil production and other industries in Asia, South America, Africa and Middle East. | ||
| Why do we filter diesel? | 90% of the failure problem of diesel engine is due to dirt and moisture in the diesel. After multiple storage and transportation, the purity of the product will decline. So filtering out the pollutants and water is necessary to restore the purity of the product. Clean diesel makes fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~3 times. | ||
Company information
Shenyang Jingyuan Membrane Co.,Ltd. is a professional and innovative membrane filter manufacturer,specialized in clean diesel filter technologh,special membrane production technology,supplying with high performance and large flow of diesel purification filters and devices, industrial oil purification device, high proformance military filtration device. we are particularly skilled in research and application of membrane filtration materials, strict product quality control. we uphold the proprietary technology and creative and offer you qualified products,competitive price and professional services. we sincerely hope to promote and develop the business with our friends on the basis of equality and mutual benefit. Philosophy:Focus on research and development,continously innovate product,control quality in strict,base on equality and mutual benefit.
Packaging & shipping
1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.
2>Appointed shipping company could be used in shipment.
3>Whole process monitoring insures the safety of goods unitl arrival .

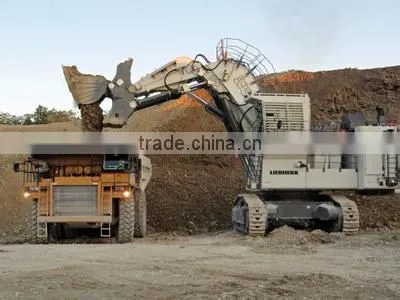

Application in mining industry
