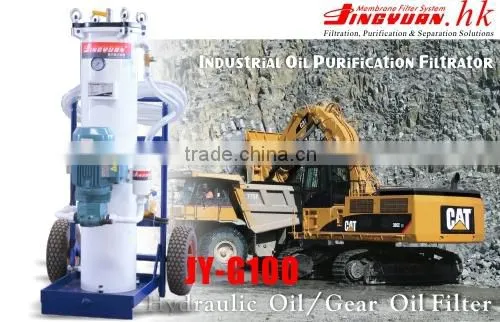

SGS and CE certified Exclusive technology oil recycling machine /oil purification machine
Features:
New polymer membrane filtration technology
•Selectivity characteristics of polymer membrane is core technology.
•Oil-water separating is easy.
•High precision and deep filtration
•Guarantee the cleanness index of industrial oil
•Improve the efficiency of the engine
•Prolong engine service life
•The cost of filtration is low
• Small volume
Superiority:
Our machine used the newest membrane filter technology. the membrane element can wash and use again and again. so it can save much cost. membrane element has The characteristics of the oil drain. water and impurity can Successful intercept. and the clean oil pass . our precision can reach 2 micron. a hair is 80 micron, so you can think our precision , it is very high.
Function:
Special filter pump, extract the oil from the system tank,first cross a Magnetic filter and strainer,make the oil cross jingyuan
membrane filter element,The oil from the outer edge of the membrane filter into,Clean oil flow from the center of the membrane
filter hole,Impurities and moisture trapped on the outer edge of the membrane filter
Technical Parameters:

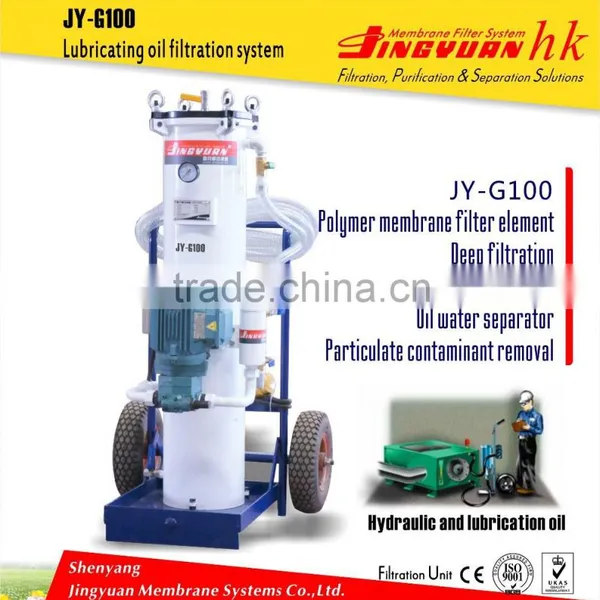

1.Model Type: JY-G100 2.Flow Rate: 60 L/min 3.Filtration System: (1)Polymer Membrane Filter Elements (Can be used repeatedly after washing) (2)Filter Element Quantity: 36 Pieces (3)Function: Remove impurity particles, colloid and water (4)Working Pressure: 0.2~0.35 Mpa (5)Filtration Level: 1 (6)Service life: 2~3 Years or longer 4.Filtration Precision: (1)Range: 2,5,10,15,25 μm (2)Standard: 5~10 μm 5.Mouth: Standard: DN20 or According to Requirements 6.Security: With Pressure Safety Valve 7.Temperature: Working Temperature: -10~70 ºC 8. Dimension: 800*750*1350mm 9.Weight:115KG 10.Anti-hazard Classification: Grade 2 11.Power System: (1)Electric Motor:380V (2)Pump: Gear Pump
Application:
A. Can be used as off-line bypass industrial oil filtration system, with circulating pump. B. Can be used in diesel fuel purification.
Adopt Jingyuan membrane filter elements to remove inpurity, colloid and water.
------Applicative oils includes hydraulic oil, engine oil, gear oil, diesel and so on. ------Flow rate and precision can be adjusted according to requirements.
1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.
2>Appointed shipping company could be used in shipment.
3>Whole process monitoring insures the safety of goods unitl arrival.
Our fairs
Our services---Term of Warranty:
1. One year with spare parts and service.
2. Engineers available to service machinery for overseas.
Tel:0086 18742486458
Skype:ivyqian25
Viber/what's up:0086 18742486458
Welcome to visit us, Your inquiries are highly welcomed at any time, we are ready to make a response very soon
